703048 Lithium Ternary Battery , Lithium Ion Battery 3.7 V 1000mAh Ecofriendly

Basic Information
Place of Origin: CHINA
Brand Name: HB
Certification: ROHS
Model Number: HB 703048-1000mAh
Minimum Order Quantity: Contact sales to get
Price: Contact sales to get
Packaging Details: Contact sales to get
Delivery Time: Contact sales to get
Payment Terms: T/T
Supply Ability: Contact sales to get
Detail Information
Nominal Voltage: 3.7V Nominal Capacity: 1000mAh
Cycle Life: 300 Times Standard Discharge Current: 0.2C
Warranty: 1 Year Standard Charge Current: 0.2C

Product Description

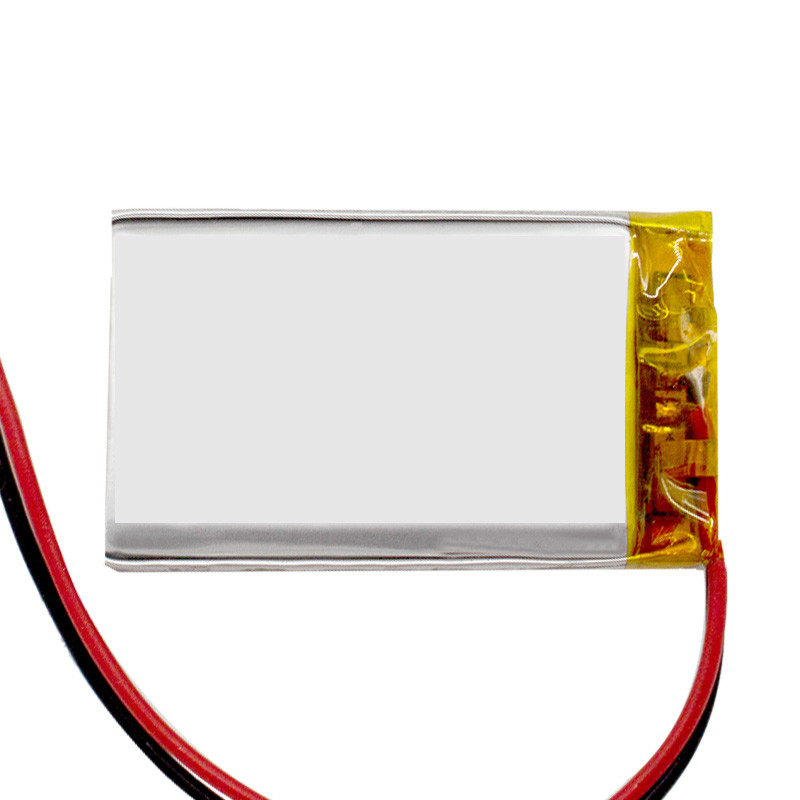

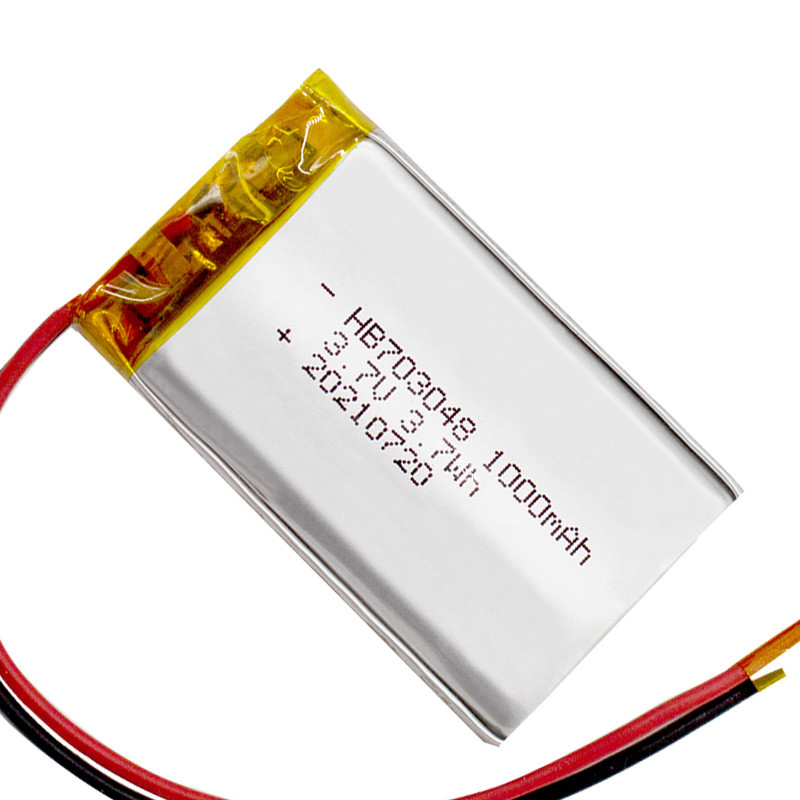

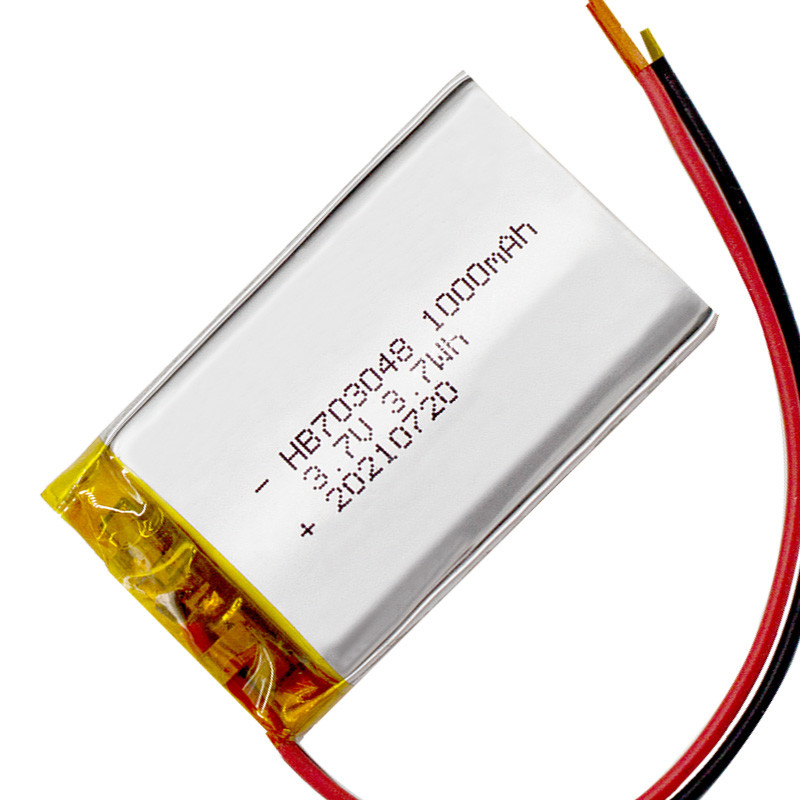

703048 Lithium Ternary Battery , Lithium Ion Battery 3.7 V 1000mAh Ecofriendly



size and capacity can be customized according to your requirements !


Mainly used in GPS,MP4,watches,earphone and other digital production, etc.

1. Technical Parameters



Items Rated Performance Remarks
Nominal Capacity 1000mAh

Discharge at 0.2C after standard charge fully

Nominal Voltage 3.70V

End-of-Voltage at end of Discharge

2.75V

End-of-Charging Voltage

4.25V
AC Impedance  ≤100 mΩ AC 1KHz
Standard Charge 0.5C CC/CV→4.25V 0.05Ccutoff Charge time: Approx 2.5h.
Standard Discharge 0.2C CC→2.75V cutoff
Fast Charge 0.05A →0.05C cutoff Charge time: Approx 1h.
Fast Discharge 0.05A→7.5V cutoff
Maximum Continuous Charge Current 0.05A
Maximum Continuous Discharge Current 1.0A

Operation Temperature Range

Charge: 0~60℃ Humidity /湿度60±25%
Discharge: -20~60℃

Storage T/H Range

-20~50℃/60±25%




Test method and request

Items  Test Method  Request

Appearance

By sight

No obvious flaw,blot,scratch distorted, tympanous.

Open-Circuit Voltage

The open-circuit voltage shall be measured within 24 hours after standard charge.

≥3.7V

Impedance

AC

Impedance Resistance

≤100 mΩ

Nominal Capacity

0.2CB5BA discharge

Discharge Capacity

≥1800mAh

Cycle Life

(0.2C)

Test condition: temperature:

First step:0.5C CC/CV to 4.2V

Second step: Static 10 min

Third step:0.2C CC to 2.5V.

Fourth step: Static 10 min

Fifth step: Repeat first step to fourth step 300cycles, record 300cycle then compare with first cycle value.

Sixth step: end

Higher than 80% of the Initial Capacities of the Cell




2. Safety Performance




Items Test Method and Condition Criteria

Over-Charge Protection


At 20±5℃ conditions,after full-charging the battery with 0.5C and set the constant current and voltage supplier with 2times of the nominal voltage and current, then load it to the battery for 8h.

The battery should be no leakage,deformation,smoking and explosion during the test processes.

Over-Discharge Protection

At 20±5℃ conditions, discharge battery to 6.0V with 0.5C constant current, then discharge with 30Ω loading for 24 hours. Check the appearance of battery.

The appearance is normal,
Noexplosion, No fire,
No smoking, No leakage.

Short-Circuit Protection

After fast-charging, use a cable of 0.1Ω resistance to short the battery for 1 hour. Then check the appearance of battery.
Cut circuit of resistance; test the battery’s voltage after charging with 1C constant current for 5 seconds.

The appearance is normal,
Noexplosion, No fire,
No smoking, No leakage.

 HB

It is prohibited to disassemble, open, chop or puncture the battery pack with metal.

It is forbidden to expose the battery or battery pack to heat or flame, to put the battery into the fire and to avoid storing it in direct sunlight.

It is forbidden to short-circuit batteries or batteries, and do not place multiple batteries in boxes or drawers at will to avoid shorting each other or by other metal objects.

It is prohibited to subject a battery or battery pack to mechanical shock.

In the event of leakage, do not contact the leaking liquid directly to the skin or eyes, if contact occurs, apply a large amount of water to flush the contact area.

Do not use non-special charging, which should be done in accordance with the manufacturer's instructions.

Note the "plus positive ear" and "-negative ear "signs of the battery pack to ensure proper use.

Keep the battery pack clean and dry.

If the battery pack becomes extremely dirty, use a clean, dry cloth to wipe it.
