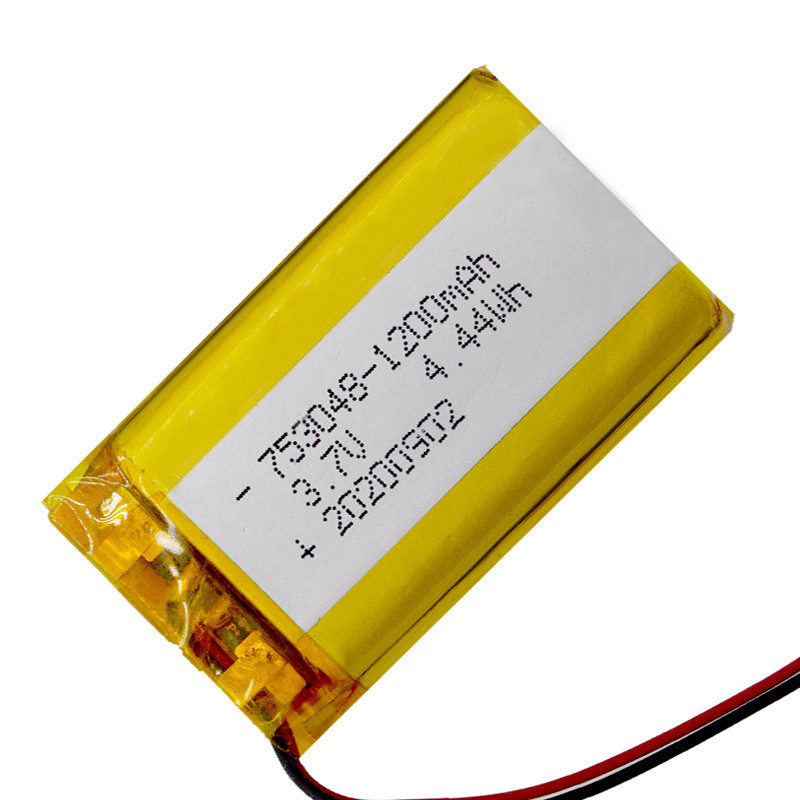

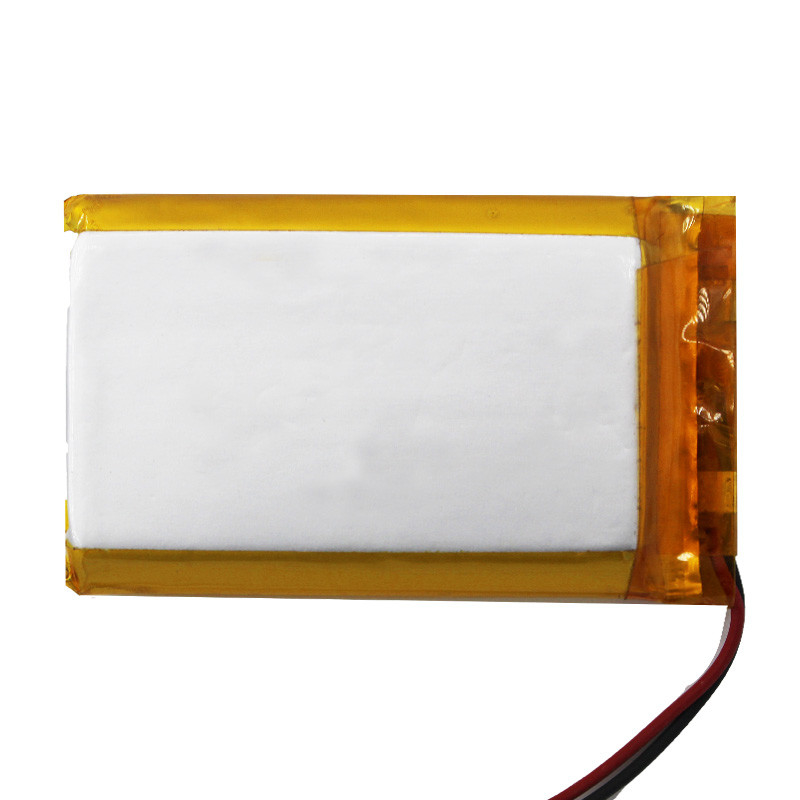

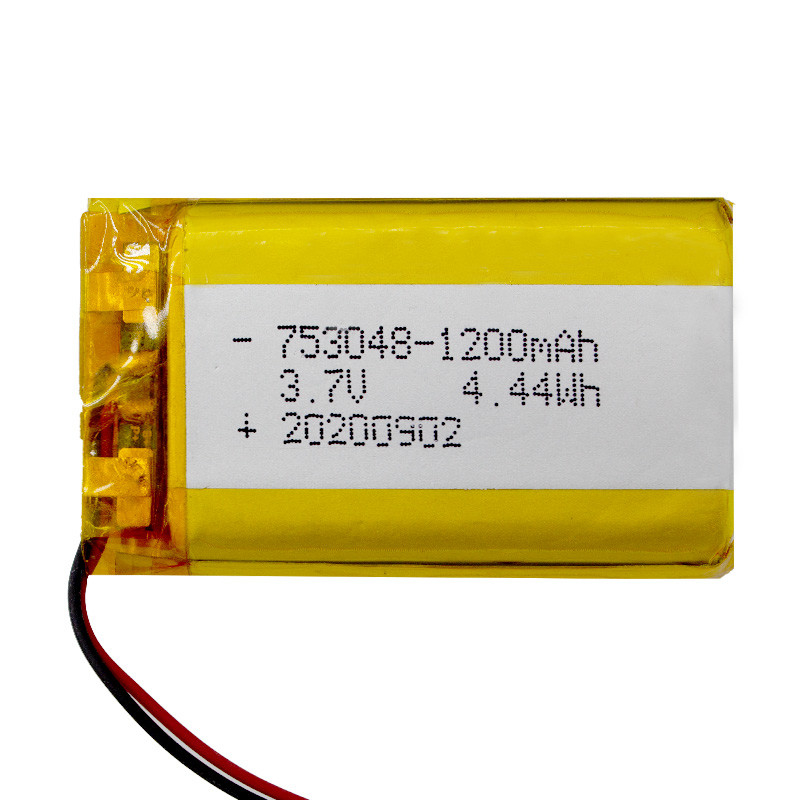

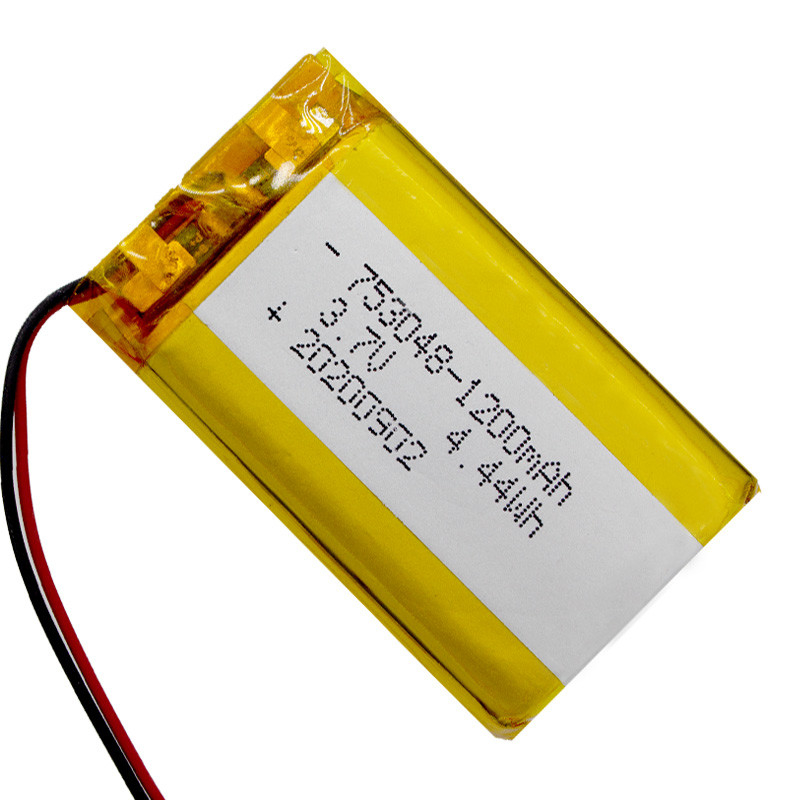

753048 1200mAh 3.7V Rechargeable Lithium Polymer Battery

small.img.alt
small.img.alt small.img.alt small.img.alt small.img.alt
Basic Information
Place of Origin: CHINA
Brand Name: HB
Certification: KC/UN38.3
Model Number: 753048-1200mAh
Minimum Order Quantity: Contact sales to get
Price: Contact sales to get
Packaging Details: Contact sales to get
Delivery Time: Contact sales to get
Payment Terms: T/T
Supply Ability: Contact sales to get
Get Best Price Contact Now Chat Now
Detail Information
NominalVoltage:3.7VNominalCapacity:1200mAh
Min.Capacity:1150mAhCellInitialImpedance:≤200mΩ
CycleLife:>300Times11
Warranty:1Year
HighLight:753048LiPolymerBattery,1200mAhLiPolymerBattery

Product Description

753048 Li Polymer Battery 1200mAh / Rechargeable Lithium Polymer Battery 3.7V



1.Size of battery

Item Description Dimension
T Battery pack Thickness max.  7.6mm
W Battery pack Width max. 30.5mm
H Battery pack Height max. 50.5mm
L Wire Length 50± 3mm
Pack Impedance  ≤ 300mΩ
Battery Weight  About 21 g



2.Basic Performance

Item  Specification  Note
Nominal Capacity  1200 mAh 0.2C discharge
Min. Capacity  1150 mAh 0.2C discharge
Cell Weight  ≈ 21g
Cell Initial Impedance  ≤ 200mΩ 3.7V AC 1KHz measured
Normal Voltage  3.7 V
Initial Voltage  ≥3.8V
Limited Charge Voltage  4.2 V Voltage of CC charge to CV charge

Standard Charging Method

0.2C CC current charge to 4.2V, then CV charge till current declines to 0.01C
Cut-off Voltage  2.75 V Load Voltage when discharge ended

Standard Charging

Current



 240mA (0.2C)





CC charge to 4.2 V, then CV charge till current declines to less than 0.01C


Standard Charging Time  6~7 hours

Rapid Charging Current

 600 mA (0.5C)

Rapid Charging Time

 about 3.5hours
Standard Discharging C 240mA (0.2C)



CC discharge to 2.75 V
Max. Discharging Current  1200mA
Operating Temperature Range  Charging:0 ～ 45℃ Discharging:-20 ～ 60℃
Operating humidity Range  ≤ 90%RH



3.Pack List

No. Item Quantity Material Specification
1 753048 1 Li-ion polymer cell 1200mAh
2 PCB 1 Fiber glass polymer compound circuit board Pass RoHS
3 wire 2 Polythene and copper PH2.0-2P reverse UL1007 24AWG



4.Drawing of battery

753048 1200mAh 3.7V Rechargeable Lithium Polymer Battery 0
