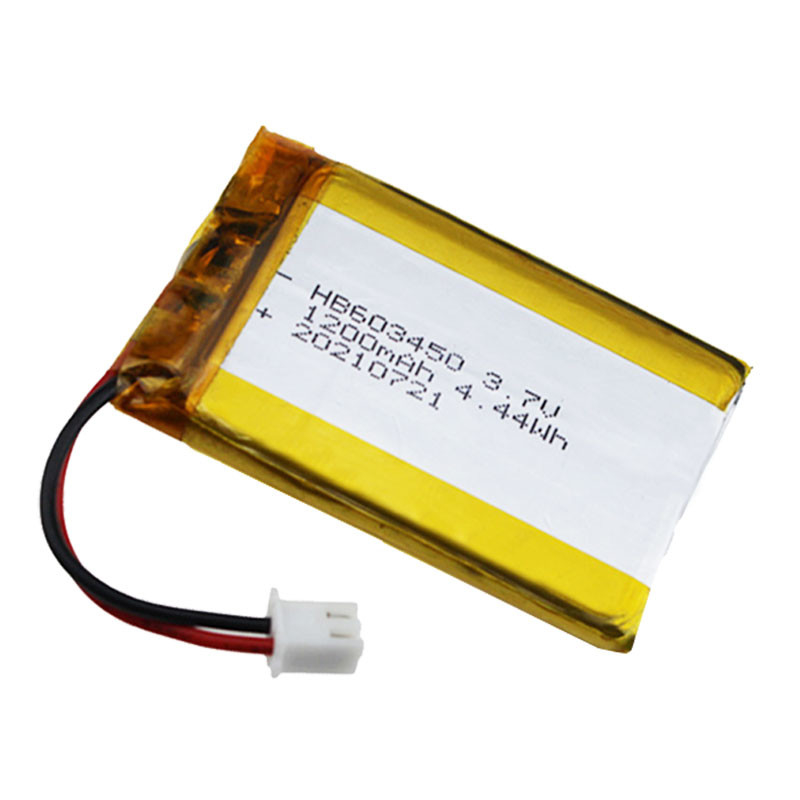

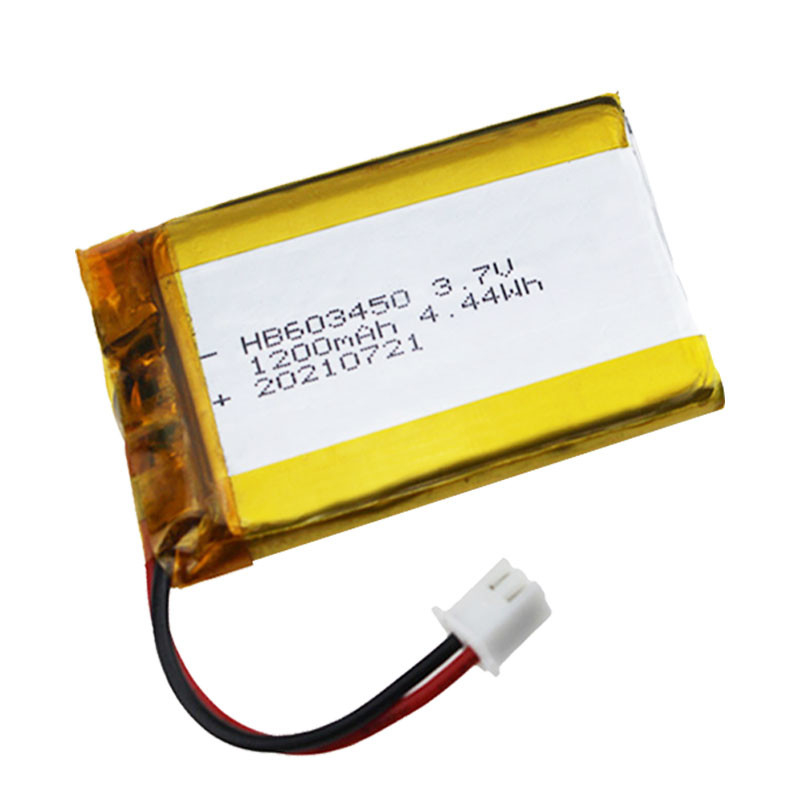

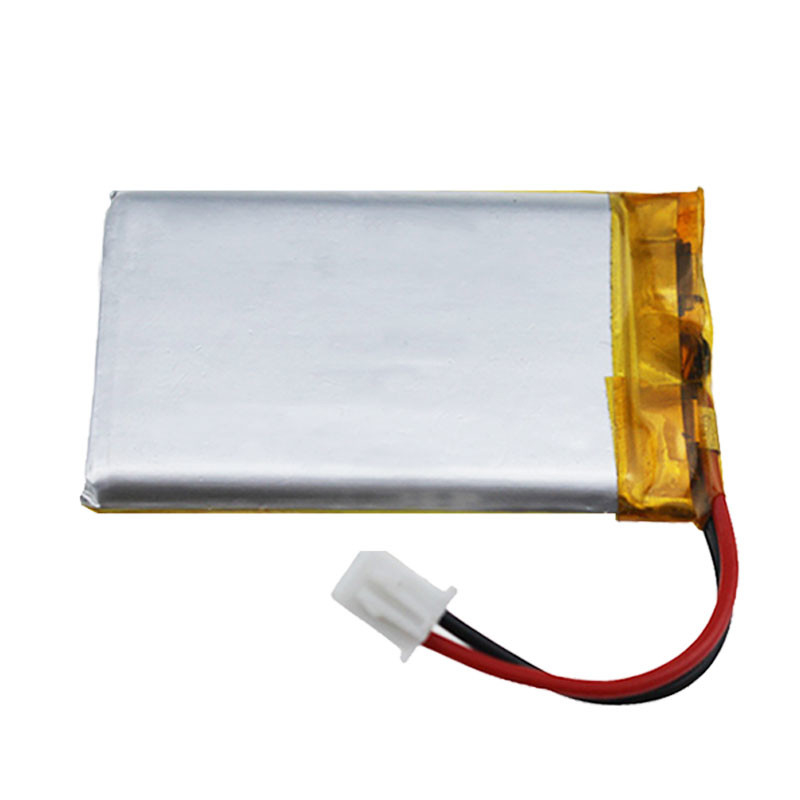

603450 Rechargeable 3.7V 1200mAh Li Polymer Battery

Basic Information
Place of Origin: CHINA
Brand Name: HB
Certification: ROHS、CB、BIS、UN38.3
Model Number: 603450 1200mAh
Minimum Order Quantity: Contact sales to get
Price: Contact sales to get
Packaging Details: Contact sales to get
Delivery Time: Contact sales to get
Payment Terms: T/T
Supply Ability: Contact sales to get
Detail Information
Nominal Voltage: 3.7V Nominal Capacity: 1200mAh
Warranty: 1 Year Cycle Life: 500 Times
Standard Discharge Current: 0.2C Standard Charge Current: 0.2C
High Light:

603450 Polymer Lithium Battery

,

603450 Li Polymer Battery


Product Description

603450 Polymer Lithium Battery 1050mAh 3.7V Infrared Thermometer Battery



Item Description Dimension
T Battery pack Thickness max.  6.2mm
W Battery pack Width max. 34.5mm
H Battery pack Height max. 52mm
L Wire Length 40± 3mm
(1.25-2P reverse UL3302/26#)
Pack Impedance  ≤ 300mΩ
Battery Weight  about21g
PTC Model JK100





No. Item  Specification
2 Nominal Capacity  1200 mAh
3 Min. Capacity 1200 mAh
4 Cell Weight  ≈ 20.5g
5 Cell Initial Impedance  ≤ 200mΩ
6 Normal Voltage  3.7 V
7 Initial Voltage  ≥3.8V
8 Limited Charge Voltage  4.2 V



9

Standard Charging Method

0.2C CC current charge to 4.2V, then CV charge till current declines to 0.01C 0.2C

10 Cut-off Voltage  2.75 V
11 Standard Charging Current 240mA (0.2C)
12 Standard Charging Time 6~7 hours
13 Rapid Charging Current 600 mA (0.5C)
14 Rapid Charging Time 约3.5hours
15 Standard Discharging Current  240mA (0.2C)
16 Max. Discharging Current  600mA
17 Operating Temperature Range

Charging:0 ~ 45℃

Discharging:-20 ~ 60℃

18 Operating humidity Range  ≤ 90%RH



TIP:



Q1. How to place an order?

A. 1. Let us know your requirements and application.

     2.We quote according to your requirements or our suggestions.

     3.Customer confirms the samples and places 50% deposit for formal order.

     4. Fourthly We arrange the production.



Q2. What about the lead time?

A. Sample needs 10 days, mass production time needs 30-40days, it depends on order quantity.



Q3. Do you have any MOQ limit?

A. Yes, we have MOQ for mass production, MOQ is generally 1000PCS.
