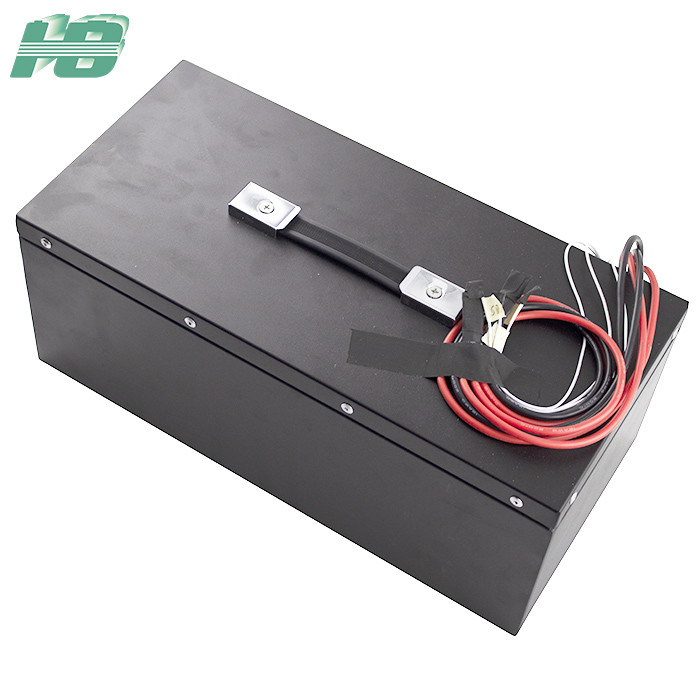

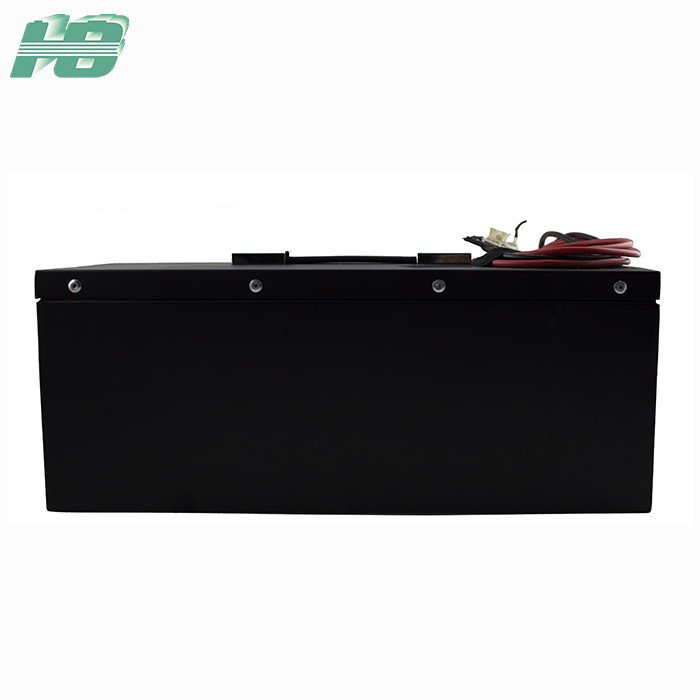

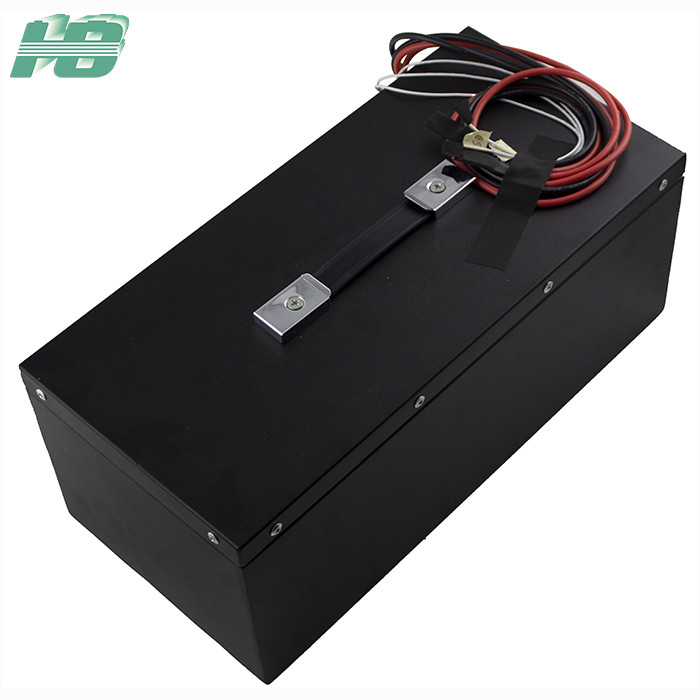

25.2v Power Lithium Battery 88Ah High Capacity Robot Rechargeable Tool Batteries
| Place of Origin: | CHINA |
|---|---|
| Brand Name: | HB |
| Certification: | ROHS |
| Model Number: | 25.2V 88Ah |
| Minimum Order Quantity: | Contact sales to get |
| Price: | Contact sales to get |
| Packaging Details: | Contact sales to get |
| Delivery Time: | Contact sales to get |
| Payment Terms: | T/T |
| Supply Ability: | Contact sales to get |
| NominalVoltage: | 25.2V | NominalCapacity: | 88Ah |
|---|---|---|---|
| CycleLife: | ≥300Times | Weight: | About13.5kg |
| MinimumCapacity: | 85.5Ah | 1 | 1 | Max.ContinuousDischargeCurrent: | 60A |
| HighLight: | fastcharginglithiumionbatteries,longlifecyclebattery |
25.2v Power Lithium Battery 88Ah High Capacity Robot Battery rechargeable tool batteries
1. Pack BOM
| No. | Name | Type or Specification | Qty. | Unit |
| 7.1 | Cell | 21700 | 147 | Pcs |
| 7.2 | Case | Metal case | 1 | Pcs |
| 7.3 | PCM | N-7S-60A | 1 | Pcs |
| No. | Items | Specification description | ||
| 3.1 | Appearance |
The surface is clear and is free of scratch, mechanical cuts and match well with the host. |
||
| 3.2 | Charge voltage | 29.4±0.2V | ||
| 3.3 | Nominal voltage | 25.2V | ||
| 3.4 | Cut-off voltage | 17.5V | ||
| 3.5 | Nominal Capacity |
88.0Ah(at 0.2C rate discharge after standard charge)
|
||
| 3.6 | Minimum capacity | 85.5Ah(at 0.2C rate discharge after standard charge) | ||
| 3.7 |
Standard Charge Current &Voltage
|
Step 1:0.5C CC charge to 29.2V; Step 2: CV (constant voltage 29.2V) charge till charge current decline to 0.02C.
|
Temperature:5~50°C
|
|
| 3.8 | Max. continue charge current | 66.0A(5~50°C) | ||
| 3.9 |
Max. continue discharge current |
60.0A | ||
| 3.10 | Operating temperature |
Charging: 0°C ~ 50°C Discharging:-40°C ~60°C |
||
| 3.11 | Regular Storage Temperature and Humidity Range |
6 months: 0~25°C Humidity:45%~90% RH
|
The battery should cycle once in three months. Recommended storage temperature is 25±5°C of SOC 50%〜60%. | |
| 3.12 | Cycle Life |
>800cycles, more than 80% at 0.5C charge and 0.5C discharge at 25°C (Charge method :0.5C CC charge to 29.2V, then CV 29.2V charge till charge current decline toW0.02C; Discharge: Constant current 0.2C 17.5V Cut-off)
|
| 3.13 | Pack Initial Internal Impedance |
<70mQ (50% SOC, Measure the AC impedance at 1kHz) |
| 3.14 | Pack weight | Approx 13.5kg |
| 3.15 | Delivery voltage | 25.4 〜25.5V |
| 3.16 | Battery dimension | 380X180X150 |
| 3.17 | Color | Silvery or Black |
| 3.18 | Communication | SMBus |
| 3.19 | Low temperature discharge Capacity | -40°C, 0.5Cdischarge,capacity75% (17.5V Cut-off) |
| 3.20 | length out of frame | 600mm, OT5 |
| 3.21 | Drop reliability |
After the battery pack is put into the protective box, it can pass the drop test of 1.22m and 6 faces. Please refer to GJB150.18a standard. |
