18Ah 12V Low Temperature Lithium Ion Battery / 32700 Custom Lithium Battery

Basic Information
Place of Origin: CHIAN
Brand Name: HB
Certification: ROHS
Model Number: 12V 18Ah
Minimum Order Quantity: Contact sales to get
Price: Contact sales to get
Packaging Details: Contact sales to get
Delivery Time: Contact sales to get
Payment Terms: T/T
Supply Ability: Contact sales to get
Contact Now
Detail Information
Nominal Voltage: 12V Nominal Capacity: 18Ah
Weight: About 2.35kg Minimum Capacity: 17.5Ah
Standard Discharge Current: 0.2C Standard Charge Current: 0.2C
High Light:

agv lithium battery

,

soft pack lithium battery


Product Description

32700 Custom Lithium Battery 18Ah 12V Low Temperature Lithium Ion Battery



1. Specification description

Items

Specification description

Appearance



The surface is clear and is free of scratch, mechanical cuts and match well with the host.

Charge voltage

14.6±0.2V

Nominal voltage



12.8V

Cut-off voltage

10.0V

Nominal capacity

18.0Ah(at 0.2C rate discharge after standard charge)

Minimum capacity

17.5Ah(at 0.2C rate discharge after standard charge)



Standard charge



Step 1:0.3C CC charge to 14.4V;



Step 2: CV (constant voltage 14.4V) charge till charge current decline to 0.02C.







Temperature:0~50℃

Max. continue charge current

6.0A

Max. continue discharge current



6.0A

Operating temperature

Charging: 0°C ~ 50°C



Discharging: -20°C ~55°C

Regular Storage

6 months: 0~25°C Humidity:45%~90% RH



The battery should cycle once in three month. Recommended storage temperature is 25±5°C of SOC 50%~60%.





Cycle Life



≥2000cycles, more than 80% at 0.3C charge and 0.3C discharge at 25 ℃ (Charge method :0.3C CC charge to 14.4V, then CV 14.4V charge till charge current decline to≤0.02C; Discharge: Constant current 0.3C 10.0V Cut-off)

Pack Initial Internal Impedance

≤150mΩ (50% SOC, Measure the AC impedance at 1kHz)

Battery pack weight

Approx 2.35kg



3.15

Delivery voltage

12.8~13.5V

3.16

Battery pack dimension

180×120×90mm



3.17

Case

Metal box
3.18

Communication mode

N/A
3.19

Connector type

N/A
3.20

Length out of frame

300mm



2. Pack BOM



No



Name



Specification



Qty



Unit



1



 Cell



32700



12

Pcs



2



 Case



Metal box



1

Pcs



3



 PCM



N-4S-6A



1

Pcs





3. Cell Specification



Width :15.92mm



Height:70.5mm



Diameter:32.5mm

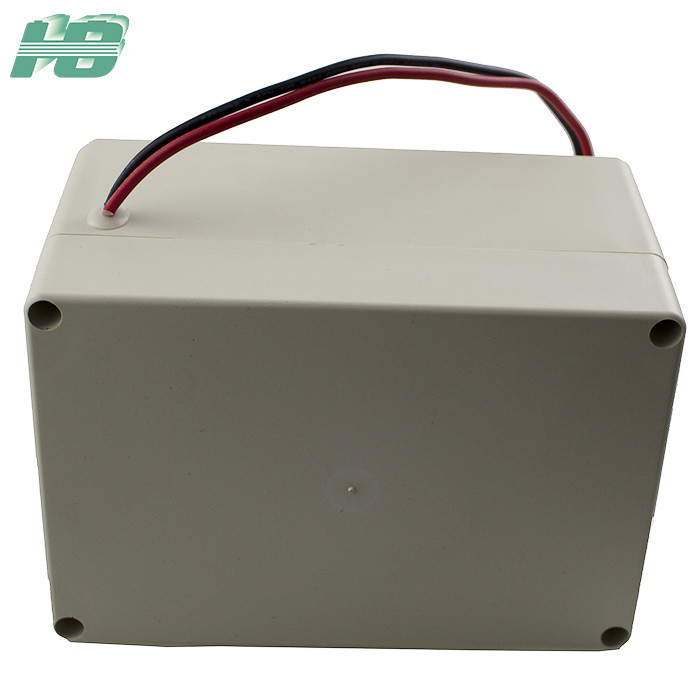

18Ah  12V Low Temperature Lithium Ion Battery / 32700 Custom Lithium Battery 0

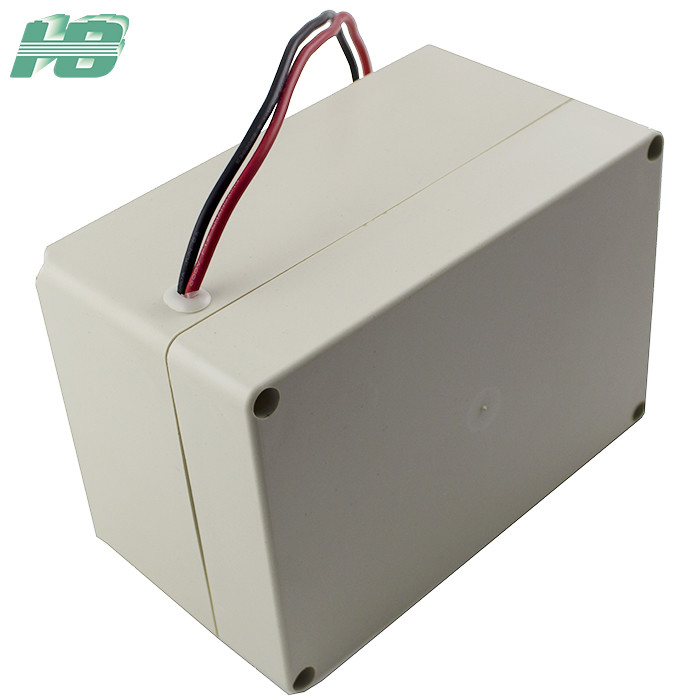

18Ah  12V Low Temperature Lithium Ion Battery / 32700 Custom Lithium Battery 1
