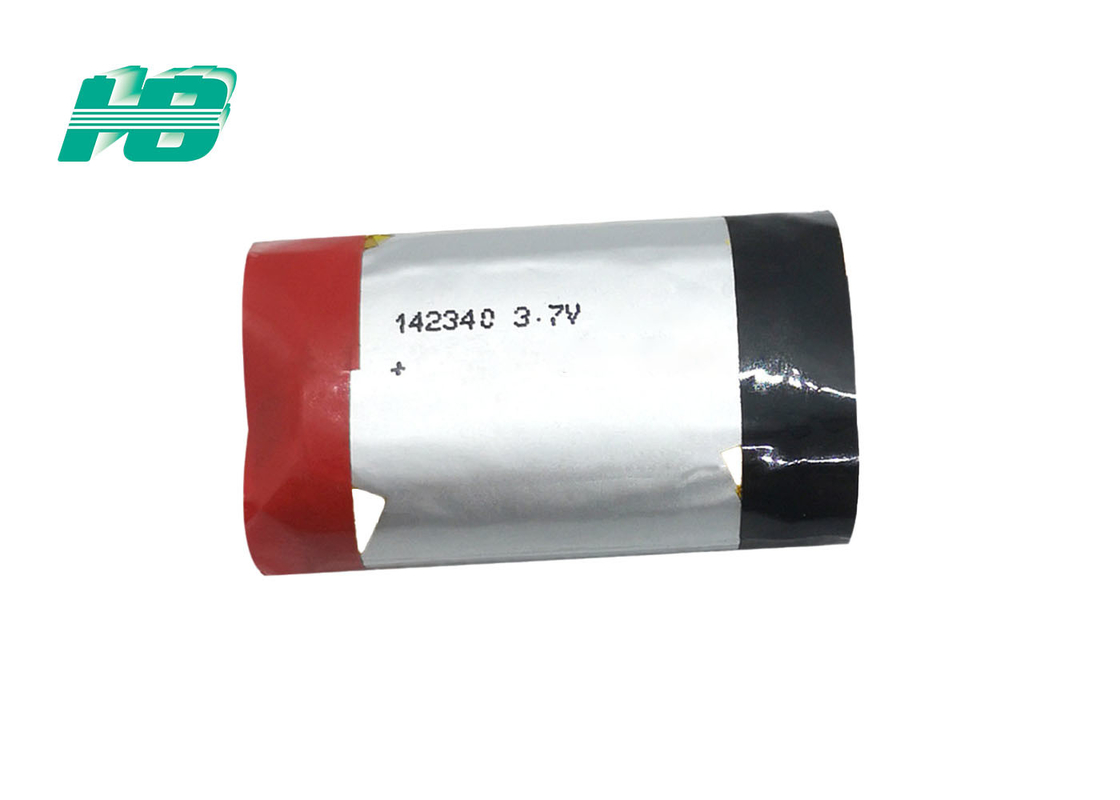

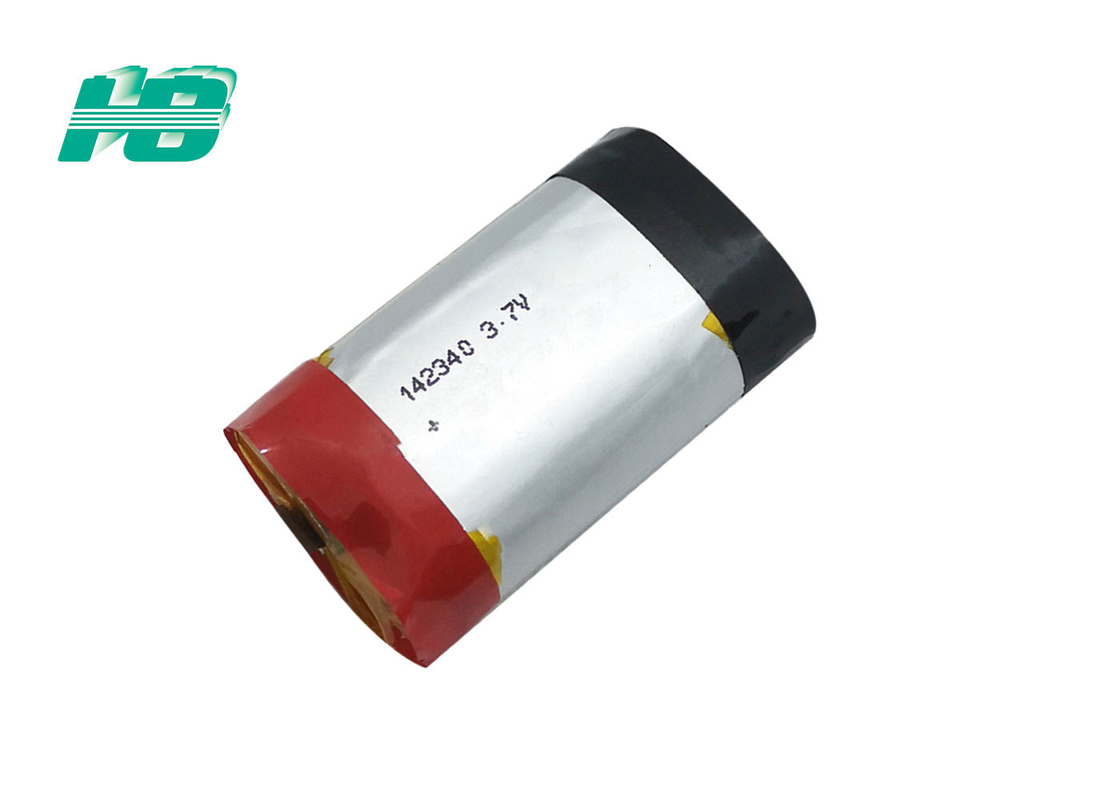

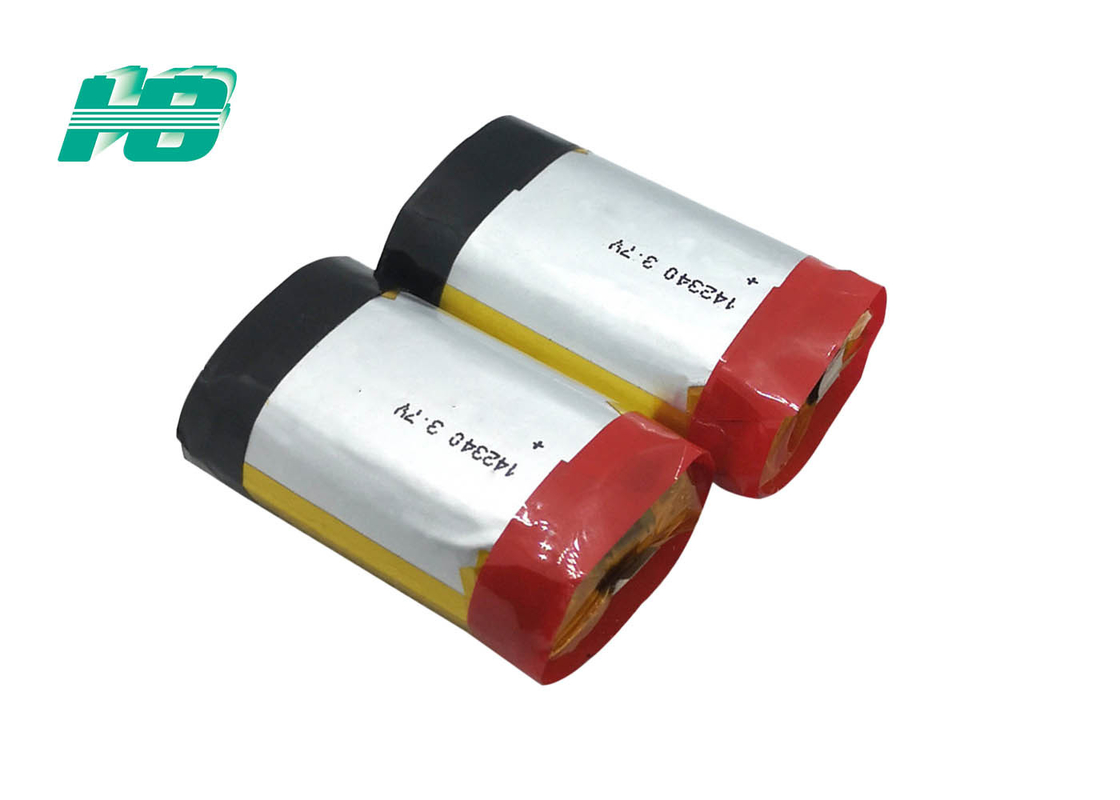

142340 Electronic Cigarette Battery 1100mAh 5A High Discharge Current

Basic Information
Place of Origin: CHINA
Brand Name: HB
Certification: UL/PSE/CB/UN/BIS/KC/CE/CQC
Model Number: 112365-1500mAh
Minimum Order Quantity: Contact sales to get
Price: Contact sales to get
Packaging Details: Contact sales to get
Delivery Time: Contact sales to get
Payment Terms: T/T
Supply Ability: Contact sales to get
Detail Information
Nominal Voltage: 3.7V Max. Internal Resistance: 60mΩ
Nominal Capacity: 1100mAh Cycle Life: 300 Times
Discharge Current: 5A Charging Cut-off Voltage: 4.2V
High Light:

e cigarette battery

,

e cig accessories


Product Description

142340 electronic cigarette battery 1100mAh 3.7V 5A high discharge current



Size and capacity can be customized according to your needs !



1. Technical Parameter Of Cell and Pack:

Item

Parameter

Nominal Capacity

1100mAh

Nominal Voltage

3.7V

Resistance

≤60mΩ

Max. Constant Discharge Current

5A

Discharge Cut-off Voltage

3.0V

Max. Constant Charge Current

1100mA

Charging Cut-off Voltage

4.20V
Thickness max. 14.0mm
Width max 20.0mm
Height max 43.0mm
Ear width 4.0mm

Range Of Work Temperature

Charge:0~+45℃

Dischare:-20~+45℃





2. Electricity Characteristics

Item

Testing method

Requirement

1. High and low temperature performance

After full charge under the condition of 23 ℃, measure the capacity ( compared with initial capacity ) of the cell core at different temperature and discharge with 0.2 c current to 3.0V.

≥ 45 % at - 20 ℃

≥ 65 % at 0 ℃

≥ 90 % at 45 ℃

2. Cycle Life characteristics

Measure capacity under the cycle conditions described below, until the discharge capacity ≤80%(10C) for three times. Cycle conditions: Standard Charge(CC-CV,10C,4.2V),Rest for 30min; Discharge at 0.5C to 3.0V cut-off. Testing temperature is 23±2℃

Life≥300 cycles

Discharge Capacity≥80%(10C)

3. Capacity Discharge the battery at a constant current of 1Cto 3.0V after Standard Charge and rest 30min

Discharge Capacity≥

100%(Nominal Capacity)

4. C-rate Discharge Characteristics Discharge the battery at a constant current of 10C to 3.0V after Standard Charge Discharge Capacity≥98%(10 C)



142340 Electronic Cigarette Battery 1100mAh 5A High Discharge Current 0
