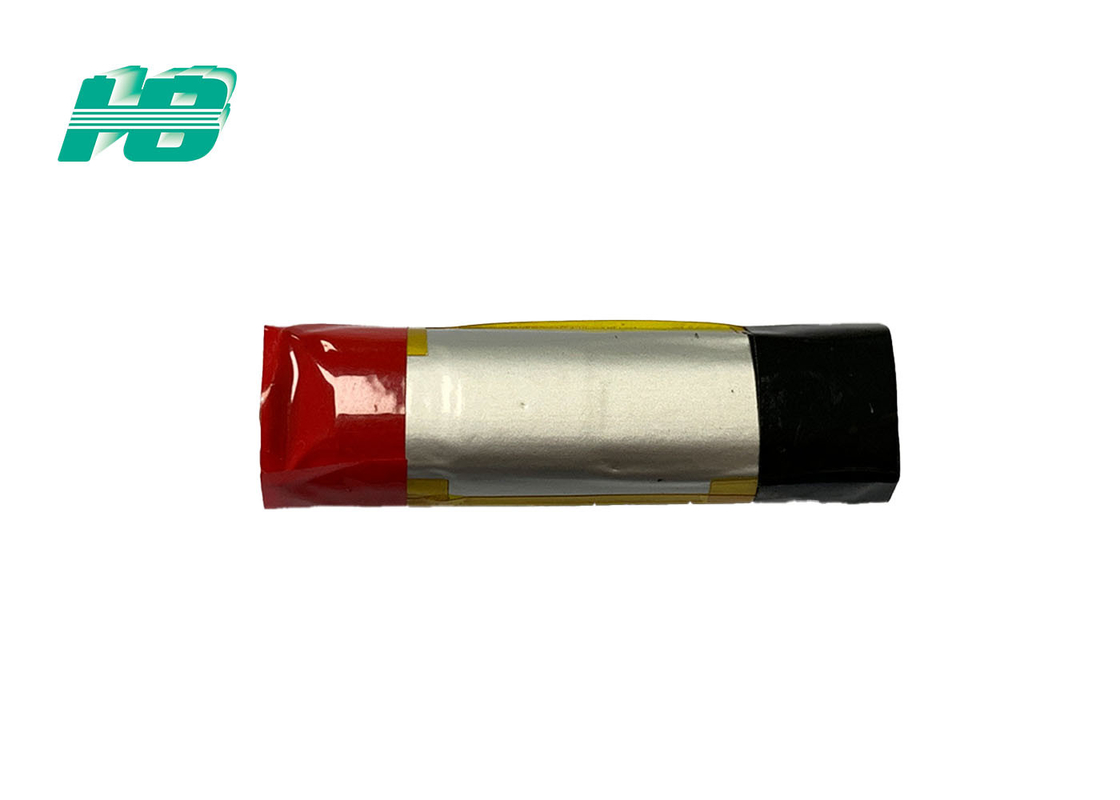

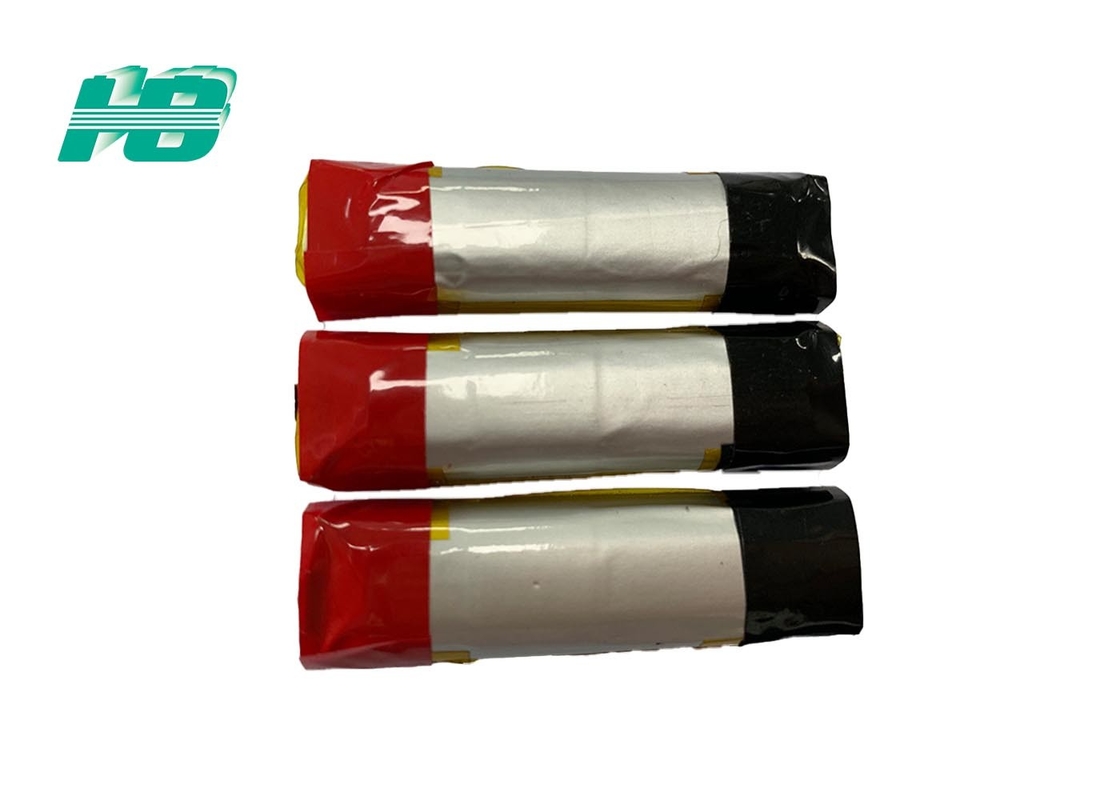

801345 Electronic Cigar Battery 350mAh Max. Internal Resistance 60mΩ

Basic Information
Place of Origin: CHINA
Brand Name: HB
Certification: UL/PSE/CB/UN/BIS/KC/CE/CQC
Model Number: 801345-350mAh
Minimum Order Quantity: Contact sales to get
Price: Contact sales to get
Packaging Details: Contact sales to get
Delivery Time: Contact sales to get
Payment Terms: T/T
Supply Ability: Contact sales to get
Detail Information
Nominal Voltage: 3.7V Max. Internal Resistance: 60mΩ
Nominal Capacity: 350mAh Cycle Life: 300 Times
Discharge Current: 3A Charging Cut-off Voltage: 4.2V
High Light:

e cigarette battery

,

e cig accessories


Product Description

801345 electronic cigarette battery 350mAh 3.7V high magnification





1.Technical Parameter Of Cell and Pack:

Item

Parameter

Nominal Capacity

350mAh

Nominal Voltage

3.7V

Resistance

≤60mΩ

Max. Constant Discharge Current

3A
Max. Constant Charge Current 1A

Discharge Cut-off Voltage

3.0V

Max. Constant Charge Current

350mA

Charging Cut-off Voltage

4.20V(PCM)
Thickness max. 8.0mm
Width max 13.0mm
Height max 45.5mm

Range Of Work Temperature

Charge:0~+45℃

Dischare:-20~+45℃





2.Electricity Characteristics

Item

Testing method

Requirement

1. Capacity



Discharge the battery at a constant current of 1Cto 3.0V after Standard Charge and rest 30min



Discharge Capacity≥

100%(Nominal Capacity)

2. C-rate Discharge Characteristics



Discharge the battery at a constant current of 10C to 3.0V after Standard Charge



Discharge Capacity≥98%(10 C)

3.High and low temperature performance

After full charge under the condition of 23 ℃, measure the capacity ( compared with initial capacity ) of the cell core at different temperature and discharge with 0.2 c current to 3.0V.

≥ 45 % at - 20 ℃

≥ 65 % at 0 ℃

≥ 90 % at 45 ℃

4.Cycle Life characteristics

Measure capacity under the cycle conditions described below, until the discharge capacity ≤80%(10C) for three times. Cycle conditions: Standard Charge(CC-CV,10C,4.2V),Rest for 30min; Discharge at 0.5C to 3.0V cut-off. Testing temperature is 23±2℃

Life≥300 cycles

Discharge Capacity≥80%(10C)



801345 Electronic Cigar Battery 350mAh Max. Internal Resistance 60mΩ 0

The Reasons You Choose US
1). Competitive price. Because we have our own factory.
2). Good quality. We all batteries are use grade cells and 100% quality check before shipment.
3). Fast delivery. We have several factories with high daily output.
4). Best service. We will patiently reply to you.
5). Size and capacity can be customized according to your needs!
