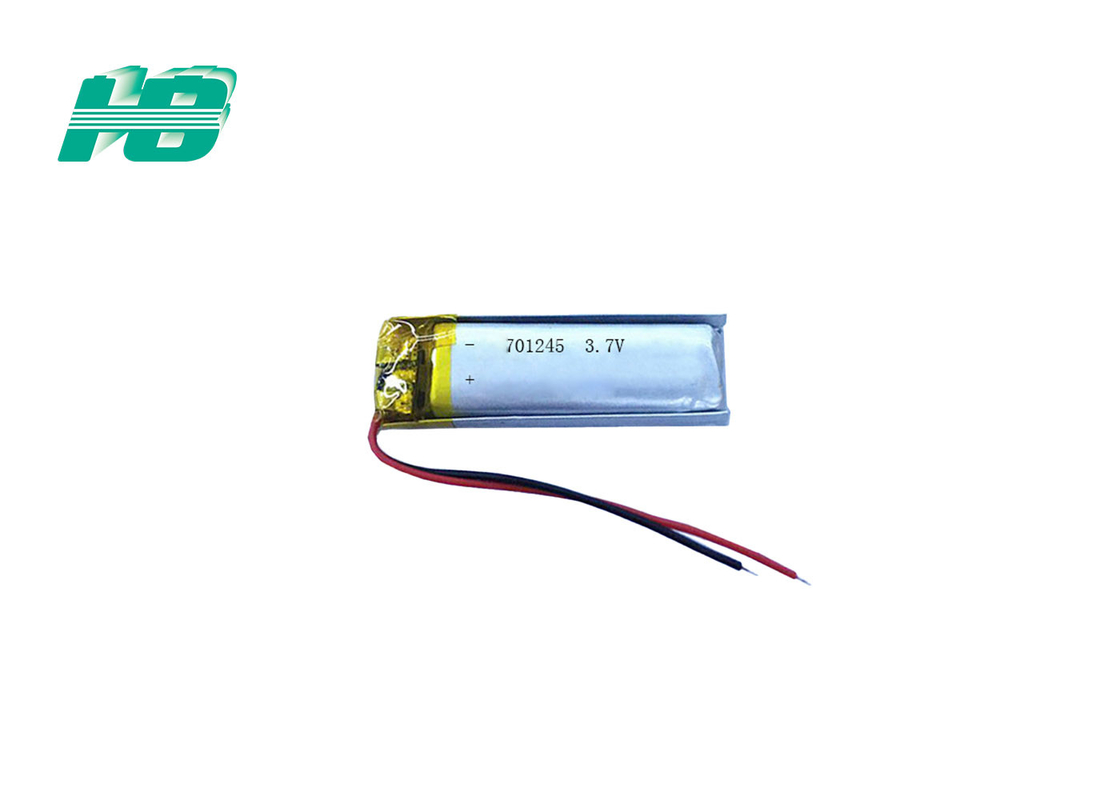

Mini 701245 Vape E Cigar Battery 350mAh Work Temperature 0~+45℃

Basic Information
Place of Origin: CHINA
Brand Name: HB
Certification: UL/PSE/CB/UN/BIS/KC/CE/CQC
Model Number: 701245-350mAh
Minimum Order Quantity: Contact sales to get
Price: Contact sales to get
Packaging Details: Contact sales to get
Delivery Time: Contact sales to get
Payment Terms: T/T
Supply Ability: Contact sales to get
Detail Information
Nominal Voltage: 3.7V Max. Internal Resistance: 80mΩ
Nominal Capacity: 350mAh Cycle Life: 300 Times
Discharge Current: 3A Charging Cut-off Voltage: 4.2V
High Light:

e cig batteries

,

e cig accessories


Product Description

701245 electronic cigarette battery 350mAh 3.7V high magnification





1. Technical Parameter Of Cell and Pack:

Item

Parameter

Nominal Capacity

350mAh

Nominal Voltage

3.7V

Resistance

≤80mΩ

Max. Constant Discharge Current

3A

Discharge Cut-off Voltage

3.0V

Max. Constant Charge Current

350mA

Charging Cut-off Voltage

4.20V(PCM)
Thickness max. 7.5mm
Width max 12.0mm
Height max 45.0mm

Range Of Work Temperature

Charge:0~+45℃

Dischare:-20~+45℃





2. Electricity Characteristics

Item

Testing method

Requirement

1. Capacity



Discharge the battery at a constant current of 1Cto 3.0V after Standard Charge and rest 30min



Discharge Capacity≥

100%(Nominal Capacity)

2. C-rate Discharge Characteristics



Discharge the battery at a constant current of 10C to 3.0V after Standard Charge



Discharge Capacity≥98%(10 C)

3. High and low temperature performance

After full charge under the condition of 23 ℃, measure the capacity ( compared with initial capacity ) of the cell core at different temperature and discharge with 0.2 c current to 3.0V.

≥ 45 % at - 20 ℃

≥ 65 % at 0 ℃

≥ 90 % at 45 ℃

4. Cycle Life characteristics

Measure capacity under the cycle conditions described below, until the discharge capacity ≤80%(10C) for three times. Cycle conditions: Standard Charge(CC-CV,10C,4.2V),Rest for 30min; Discharge at 0.5C to 3.0V cut-off. Testing temperature is 23±2℃

Life≥300 cycles

Discharge Capacity≥80%(10C)



Mini 701245 Vape E Cigar Battery 350mAh Work Temperature 0~+45℃ 0
