| Place of Origin: | CHINA |
|---|---|
| Brand Name: | HB |
| Certification: | ROHS |
| Model Number: | 1160120-870mAh |
| Minimum Order Quantity: | Contact sales to get |
| Price: | Contact sales to get |
| Packaging Details: | Contact sales to get |
| Delivery Time: | Contact sales to get |
| Payment Terms: | T/T |
| Supply Ability: | Contact sales to get |
| Nominal Voltage: | 3.8V | Nominal Capacity: | 870mAh |
|---|---|---|---|
| Warranty: | 1 Year | Cycle Life: | 500 Times |
| Standard Discharge Current: | 0.2C | Standard Charge Current: | 0.2C |
| High Light: | semi solid state battery,super thin battery |
||

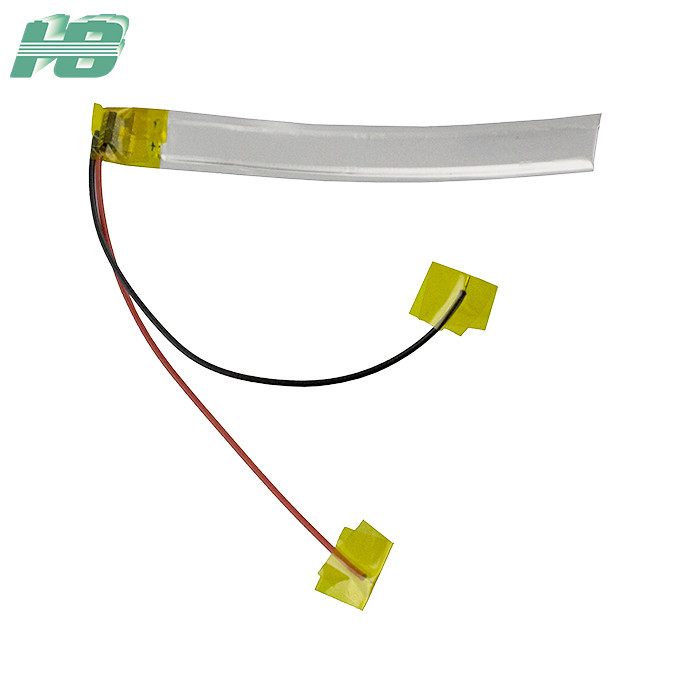

1160120 Arc Battery 870mAh polymer lithium battery 3.8V custom battery
Note: We can customize different models according to your needs.Thickness below 3mm-capacity adjustable.
Features of flexible batteries
Traditional lithium batteries and supercapacitors are rigid. When they are bent or folded, it is easy to cause the electrode material and current collector to separate, affect the electrochemical performance, and even cause short circuits. Serious safety problems occur.
But the so-called flexible battery means that it can withstand bending and twisting and stretching even foldable batteries.
The battery can maintain stable electrochemical performance in a bent state and serves as an important for wearable electronic devices.
| Item | Rating |
| Typical capacity | 870mAh |
| Min capacity | 820mAh |
| Energy | 3.3Wh |
|
Nominal Voltage |
3.8V |
|
AC Impedance Resistance |
≤150mΩ |
|
Discharge Cut-off Voltage |
3.0V |
|
Charge Voltage |
4.35V |
|
Max. Charge Voltage |
4.40V |
|
Charge Time |
Approx 6.5h |
| Shipments voltage | ≥4.05V |
| Charge | 0~+60℃ |
| Discharge | -10~+60℃ |
|
less than 1 month |
-10~+60℃ |
|
less than 6 months |
-10~+45℃ |
