220mah 3.8 V Lithium Ion Polymer Battery , 1020140 Flexible Lithium Battery

Basic Information
Place of Origin: CHINA
Brand Name: HB
Certification: ROHS
Model Number: 1020140-220mAh
Minimum Order Quantity: Contact sales to get
Price: Contact sales to get
Packaging Details: Contact sales to get
Delivery Time: Contact sales to get
Payment Terms: T/T
Supply Ability: Contact sales to get
Detail Information
Nominal Voltage: 3.8V Nominal Capacity: 220mAh
Warranty: 1 Year Cycle Life: 500 Times
Standard Discharge Current: 0.2C Standard Charge Current: 0.2C
High Light:

flexible li ion battery

,

flexible rechargeable battery


Product Description

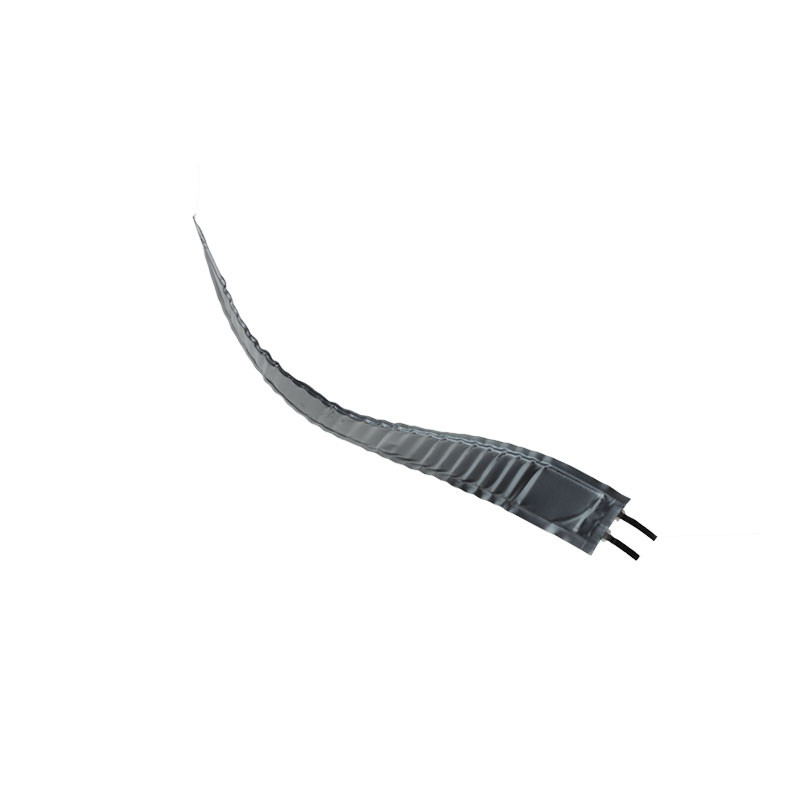

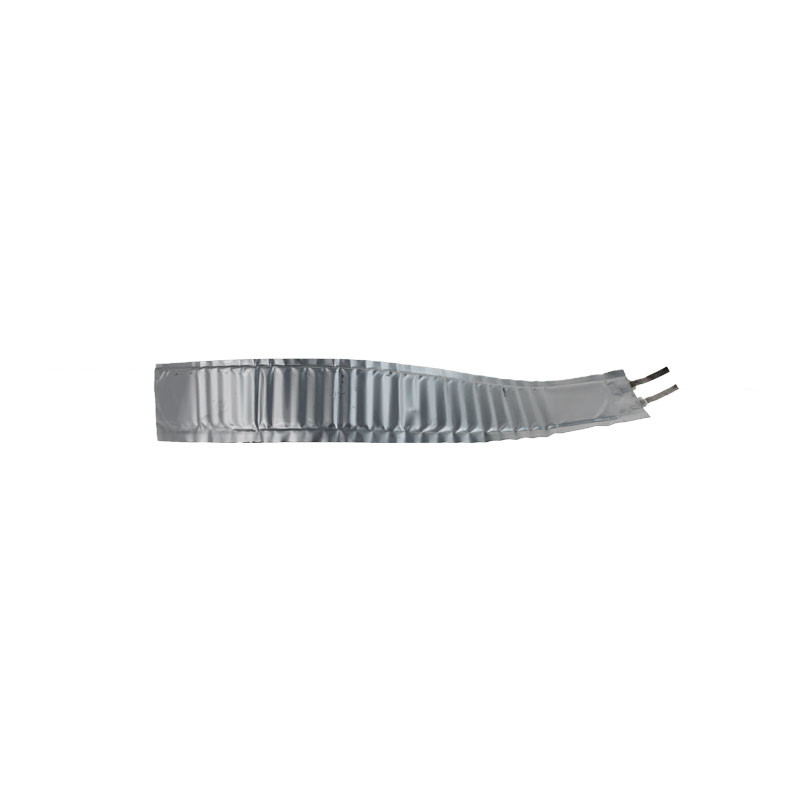

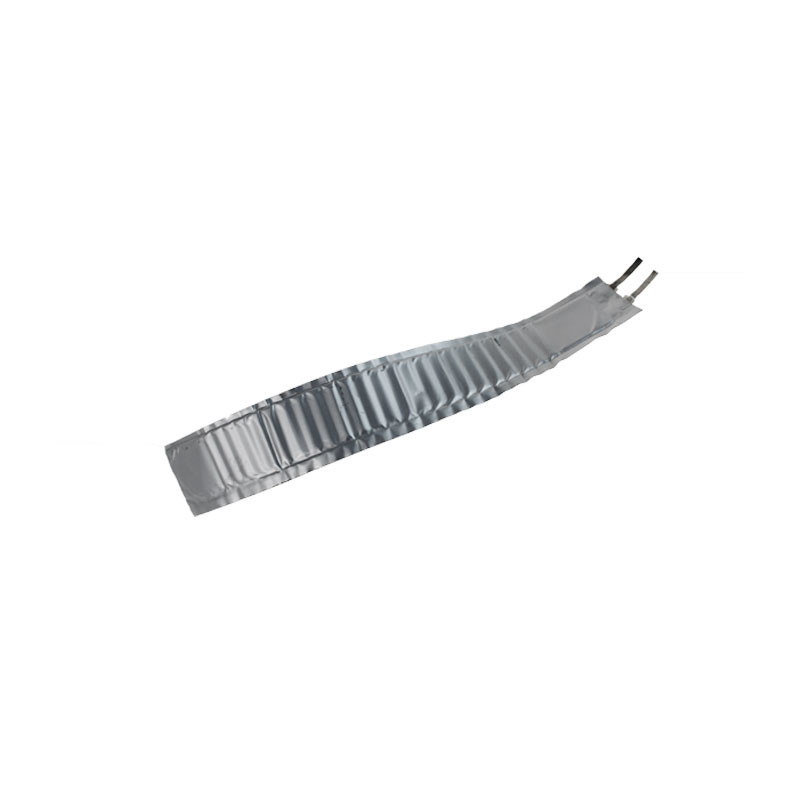

1020140 flexible battery 220mAh polymer lithium battery 3.8V custom battery



Flexible battery means that it can work normally under the condition of a certain range of deformation (bend, fold, twist, compress or stretch). Flexible batteries are becoming more widely used, such as curved displays and touch screens, radio frequency identification tags, wearable sensors, implantable medical devices, bracelets, watches and even mobile phones. It can be seen that flexible batteries will be just the demand for future electronic equipment.



Tip: We can customize different models according to your needs.





Technical Parameters

Item Rating
Typical capacity 220mAh
Min. capacity 210mAh
Energy 0.84Wh

Nominal Voltage

3.8V

AC Impedance Resistance

≤150mΩ

Discharge Cut-off Voltage

3.0V

Charge Voltage

4.35V

Max. Charge Voltage

4.40V

Charge Time

Approx 6.5h
Shipments voltage ≥4.05V
Charge 0~+60℃
Discharge -10~+60℃

less than 1 month

-10~+60℃

less than 6 months

-10~+45℃



Safety instructions

HB lithium battery uses non-polluting materials and is produced with unique technology; it has fully passed UL safety certification, but as a lithium battery, like other types of cells, it has certain dangers when it is mechanically damaged. Therefore, the following precautions must be taken into consideration when handling and using HB lithium batteries:
1) It is forbidden to put the battery in water, and should be placed in a cool and dry environment during storage.
2) Do not use non-special charging, which should be done in accordance with the manufacturer's instructions.
3) It is prohibited to disassemble, open, chop or puncture the battery pack with metal.
4) It is forbidden to expose the battery or battery pack to heat or flame, to put the battery into the fire and to avoid storing it in direct sunlight.
5) In the event of leakage, do not contact the leaking liquid directly to the skin or eyes, if contact occurs, apply a large amount of water to flush the contact area.
6) It is prohibited to subject a battery or battery pack to mechanical shock.
7) It is forbidden to use in the hot sunlight of moxibustion, otherwise it may cause battery overheating, fire or function failure.
8) It is forbidden to short-circuit batteries or batteries, and do not place multiple batteries in boxes or drawers at will to avoid shorting each other or by other metal objects.
9) Note the "plus positive ear" and "-negative ear "signs of the battery pack to ensure proper use.
10) Keep the battery pack clean and dry.
If the battery pack becomes extremely dirty, use a clean, dry cloth to wipe it.
12) Do not charge the battery pack for a long time.
13) The best performance and service life of the battery or battery pack can be obtained by charging and discharging at 15°C ~25°C.
14) Keep the original specification of the product for future reference.
15) Dispose of waste batteries or batteries in accordance with national environmental protection laws.
