1350mAh 553759 Li Polymer Battery 500 Times Cycle Life 1 Year Warranty

Basic Information
Place of Origin: CHINA
Brand Name: HB
Certification: ROHS
Model Number: HB553759 1350mAh
Minimum Order Quantity: Contact sales to get
Price: Contact sales to get
Packaging Details: Contact sales to get
Delivery Time: Contact sales to get
Payment Terms: T/T
Supply Ability: Contact sales to get
Detail Information
Nominal Voltage: 3.7V Nominal Capacity: 1350mAh
Warranty: 1 Year Cycle Life: 500 Times
Standard Discharge Current: 0.2C Standard Charge Current: 0.2C
High Light:

rechargeable lithium batteries

,

lithium polymer battery


Product Description

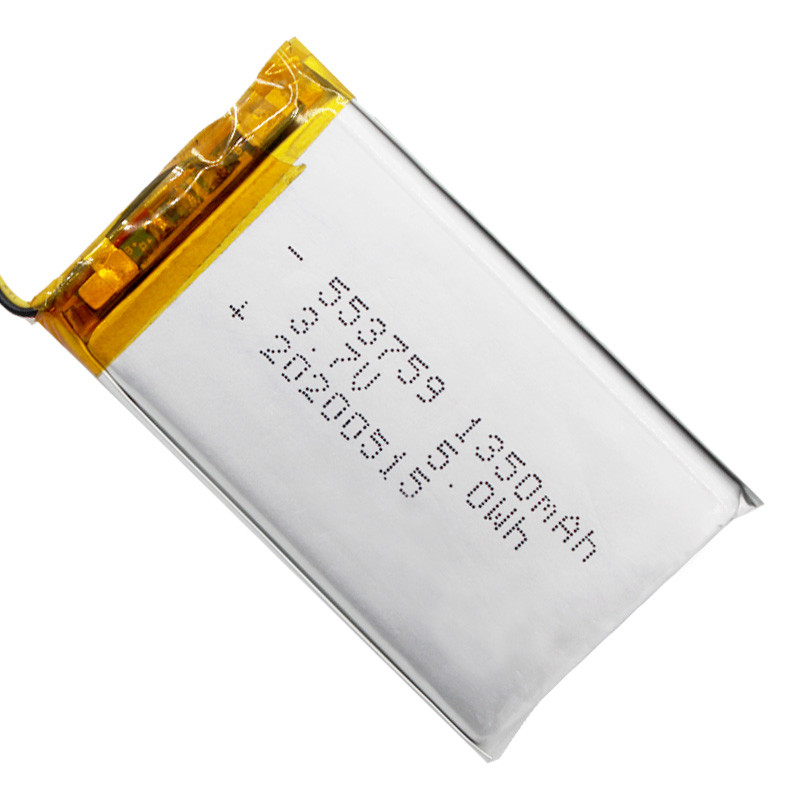

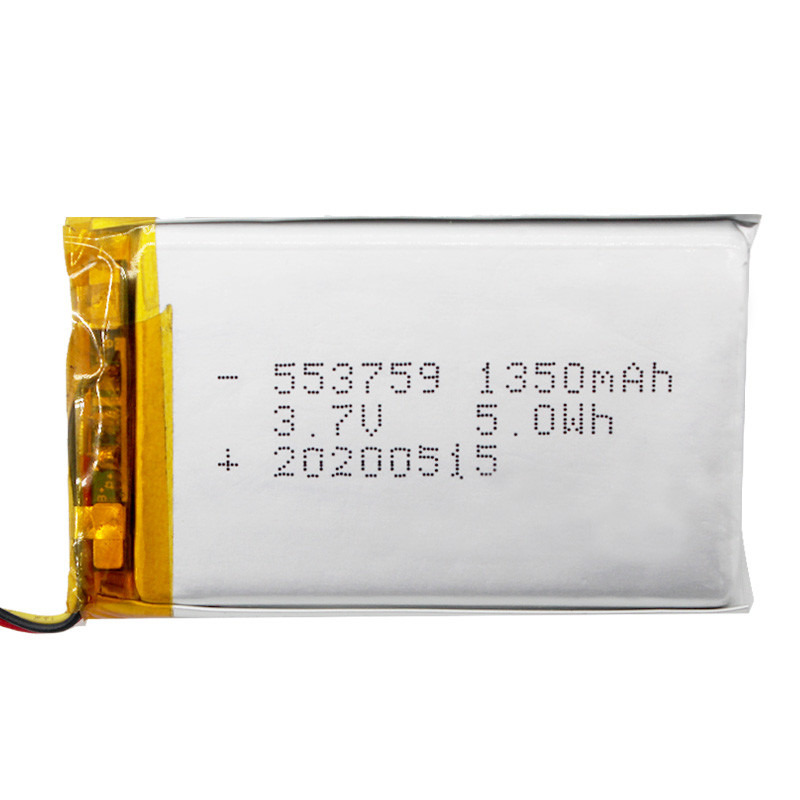

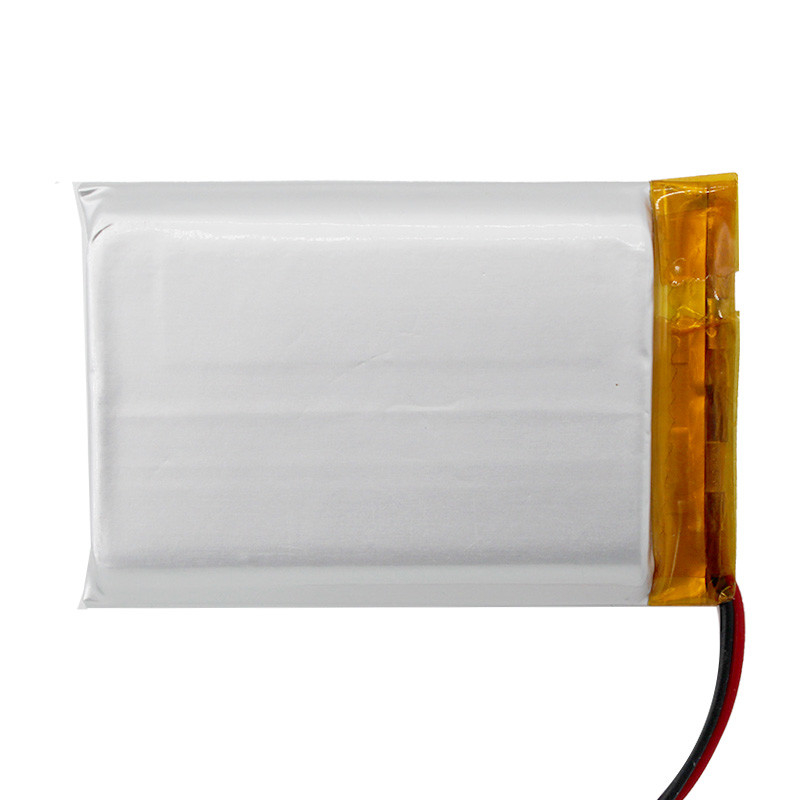

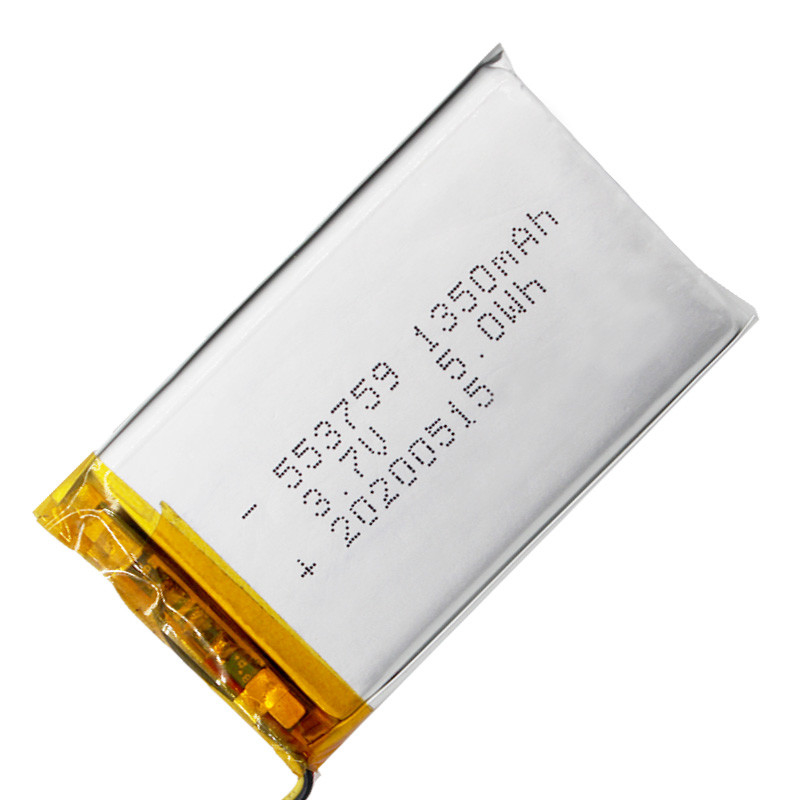

553759 Li Polymer Battery 1350mAh soft pack Infrared thermometer battery 3.7V

1. Technical Parameters

Item SpecificationNote
Nominal Capacity 1350mAh0.2C discharge
Min. Capacity1250 mAh0.2C discharge
Cell Weight≈21g
Cell Initial Impedance≤ 80mΩ3.7V AC 1KHz measured
Normal Voltage3.7 V
Initial Voltage≥3.8V
Limited Charge Voltage4.2 VVoltage of CC charge to CV charge


Standard Charging Method


0.2C CC current charge to 4.2V, then CV charge till current declines to 0.01C

Cut-off Voltage2.75 VLoad Voltage when discharge ended
Standard Charging Current270mA (0.2C)

Standard Charging Time6~7 hoursCC charge to 4.2 V, then CV charge till
 current declines to less than 0.01C
Rapid Charging Current1350 mA (0.5C)
 0.01C
Rapid Charging Time约1.5hours

Standard Discharging Current 270mA (0.2C)


CC discharge to 2.75 V

Max. Discharging Current1350mA (1C)
Operating Temperature Range

Charging:0 ~ 45℃
Discharging:-20 ~ 60℃


Operating humidity Range ≤ 90%RH



ItemCriterionTest Method

0.2C dischargring capacity

Discharging capacity is not less than normal capacity

After Standard Charging,rest 5 minutes,then 0.2C discharge to cut-off voltage

1.0C dischargring capacity

Discharging capacity is not less than 90% of normal capacity

After Standard Charging,rest 5 minutes,then 1.0C discharge to cut-off voltage

Cycle life

The cycle times is not less than 300

Charge:0.5C CC-CV charge to 4.2 V, then current declines to 0.02C
Discharge:0.5C CC discharge to 2.75 V
When the discharge capacity reduced to 80% of rated capacity, stop testing, and record the cycle times.

Self-discharge

Discharging capacity is not less than 85% of initial capacity

After Standard Charging,rest the cell for 28 days in the condition of 20±5℃, then 0.2C discharge to cut- off voltage, and record the capacity.
