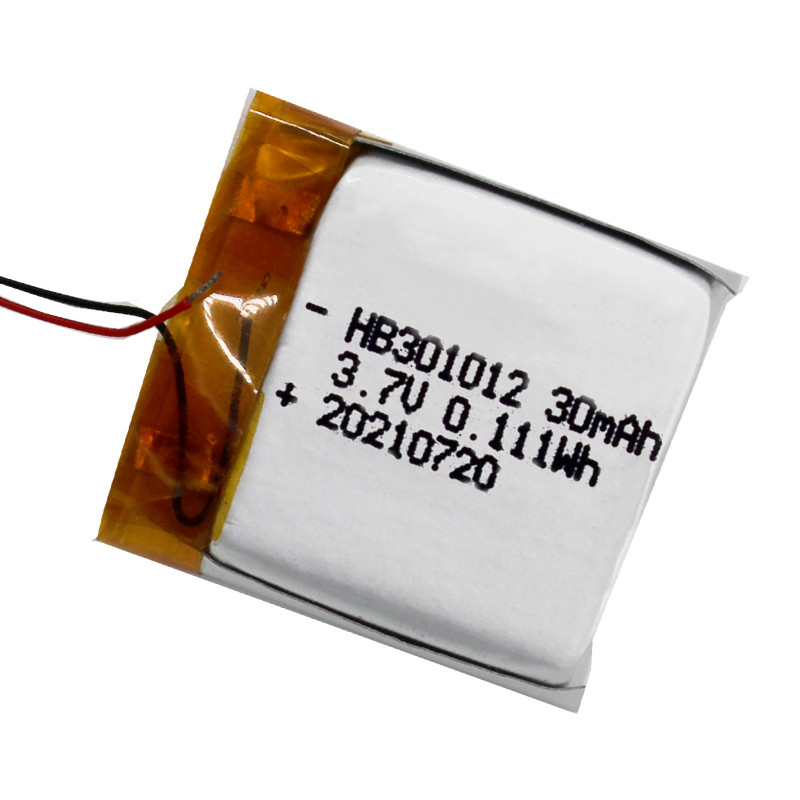

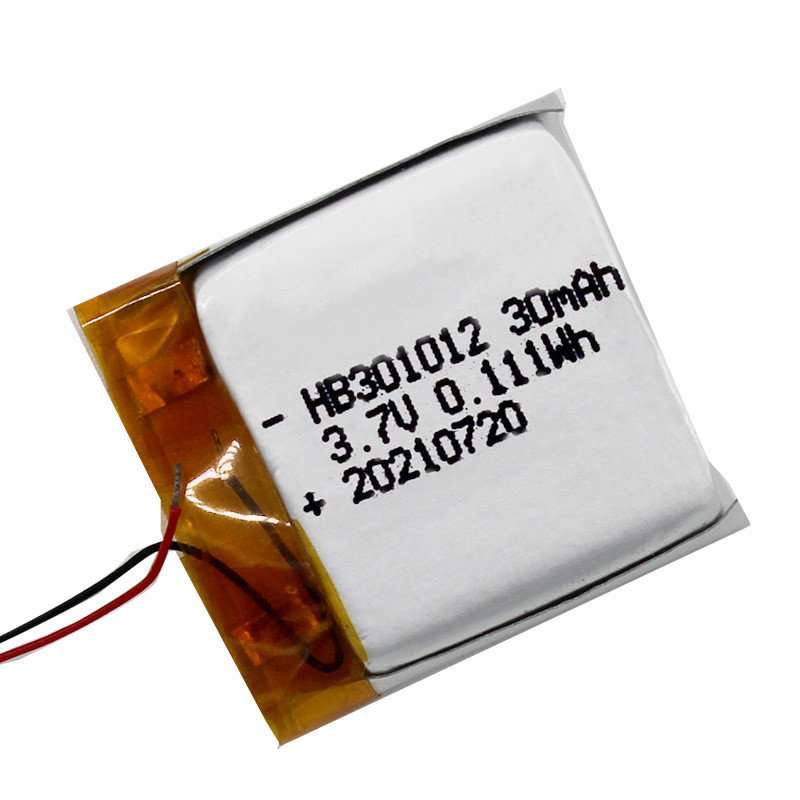

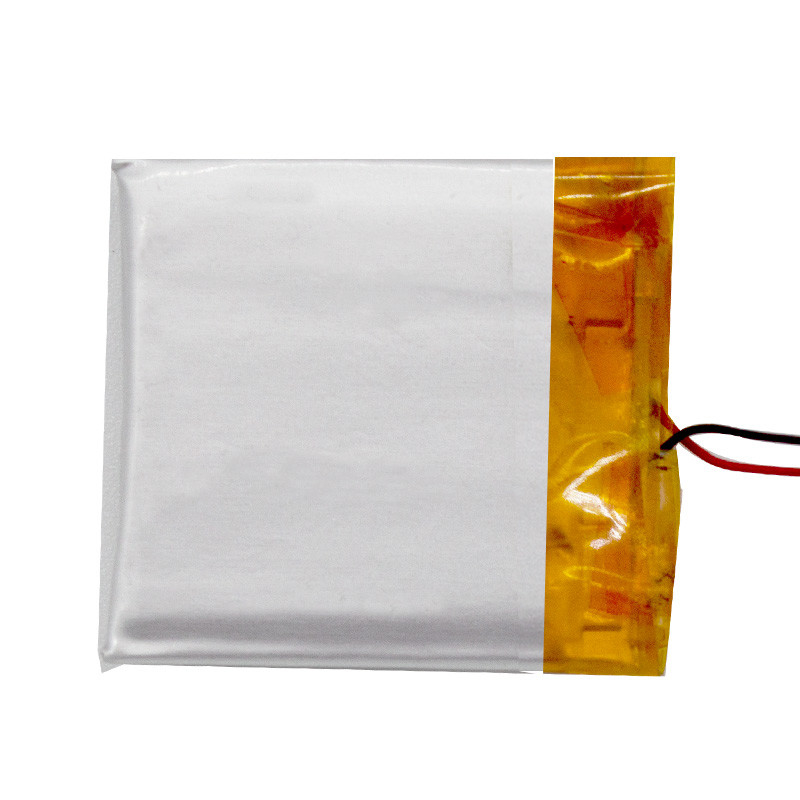

301012 Lithium Ion Polymer Rechargeable Battery , 30mAh Soft Pack Battery
| Place of Origin: | CHINA |
|---|---|
| Brand Name: | HB |
| Certification: | ROHS |
| Model Number: | 301012 |
| Minimum Order Quantity: | Contact sales to get |
| Price: | Contact sales to get |
| Packaging Details: | Contact sales to get |
| Delivery Time: | Contact sales to get |
| Payment Terms: | T/T |
| Supply Ability: | Contact sales to get |
| NominalVoltage: | 3.7V | StandardDischargeCurrent: | 0.2C |
|---|---|---|---|
| NominalCapacity: | 30mAh | Warranty: | 1Year |
| CycleLife: | 500Times | 1 | 1 | StandardChargeCurrent: | 0.2C |
| HighLight: | lithiumternarybattery,rechargeablelithiumbatteries |
301012 li polymer rechargeable battery 20mAh soft pack rechargeable battery 3.7V
1. Technical Parameters
| Item | Rating | Note | ||
| Capacity | Typical | 30mAh |
Discharge:4mA , 4mA |
|
| Min | 30mAh | |||
| Energy | 0.111Wh | |||
|
Nominal Voltage
|
3.70V | |||
| Discharge Cut-off Voltage | 3.0V | |||
| Charge Voltage | 4.25V | |||
| Max. Charge Voltage | 4.30V | |||
| Charge Time | Approx 6.5h | 0.2C | ||
| Standard charge current | 6mA | 0.2C | ||
| Max. Charge Current | 30mA | 1.0C | ||
| Max. discharge current | ≤45℃ | 1.0C | ||
| Shipments voltage | ≥4.05V | |||
| Weight | Approx 2.0g | |||
| Operating Temperature | Charge | 0~+60℃ | ||
| Discharge | -10~+60℃ | |||
2. Application Area
Mainly used in solar backpack, solar hood, solar flashlight, solar car, solar sailing boat, solar airplane, BIPV, etc.
3. Warning and Cautions
Danger warning(it should be described in manual or instruction for users, indicated especially) to prevent the
possibility of the battery from leaking, heating, explosion. Please observe the following precautions:
Don’t immerse the battery in water and seawater. Please put it in cool and dry environment if no using
Do not discard or leave the battery near a heat source as fire or heater
Being charged, using the battery charger specifically for that purpose
Don’t reverse the positive and negative terminals
Don’t connect the battery to an electrical outlet directly
Don’t connect the positive and negative terminal directly with metal objects such as wire. Short
terminals of battery is strictly prohibited, it may damage battery
Do not transport and store the battery together with metal objects such as necklaces, hairpins
Do not strike, throw or trample the battery
Do not directly solder the battery and pierce the battery with a nail or other sharp object
