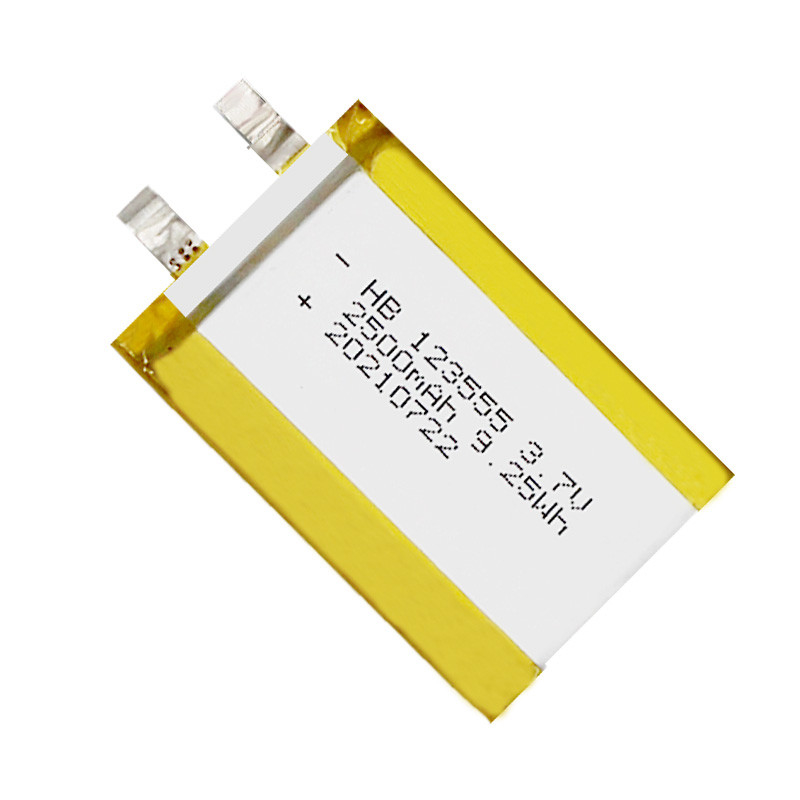

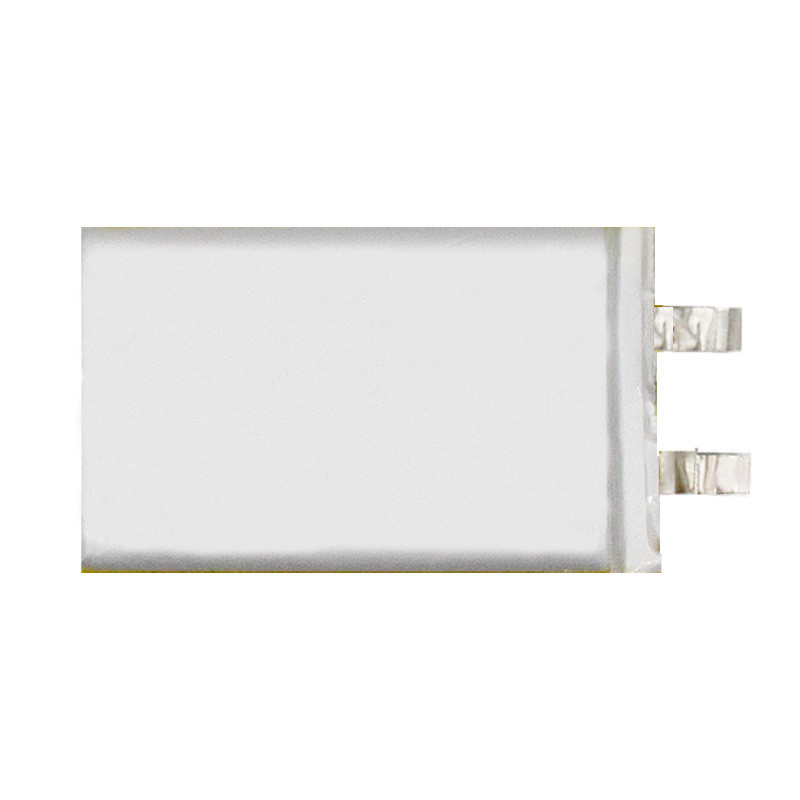

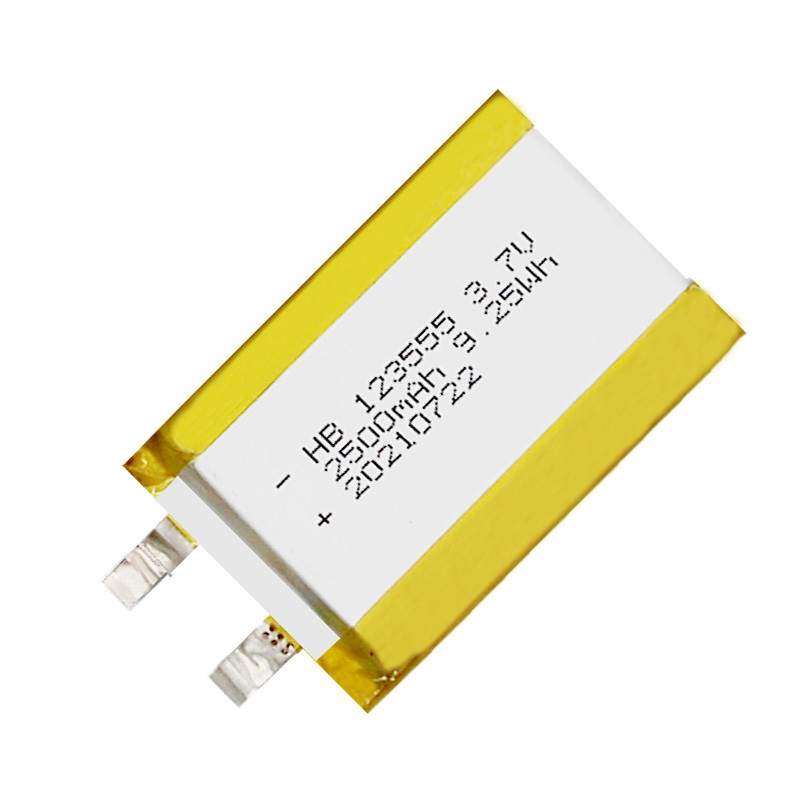

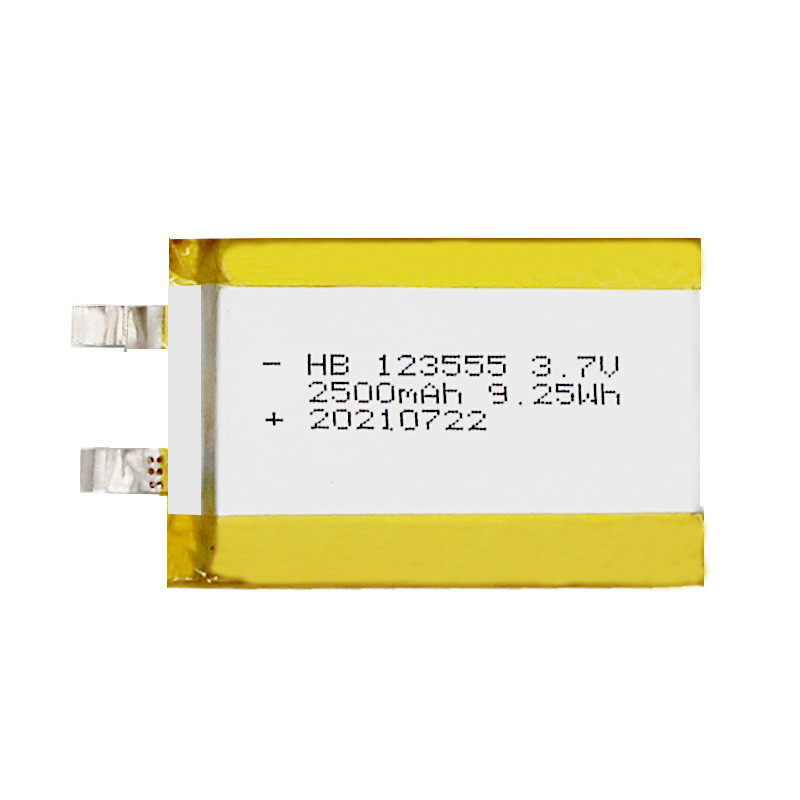

123555 Li Polymer Battery 2500mah Rechargeable 0.2c Standard Discharge Current

Basic Information
Place of Origin: CHINA
Brand Name: HB
Certification: ROHS
Model Number: HB 123555 2500mAh
Minimum Order Quantity: Contact sales to get
Price: Contact sales to get
Packaging Details: Contact sales to get
Delivery Time: Contact sales to get
Payment Terms: T/T
Supply Ability: Contact sales to get
Detail Information
Nominal Voltage: 3.7V Nominal Capacity: 2500mAh
Warranty: 1 Year Cycle Life: 500 Times
Standard Discharge Current: 0.2C Standard Charge Current: 0.2C
High Light:

lithium ternary battery

,

lithium polymer battery


Product Description

123555 li polymer battery 2500mAh rechargeable lithium polymer battery 3.7V



1. Technical Parameters



Item Rating Note
Capacity Typical 2500mAh

Discharge:500mA ,

500mA

Min 2500mAh
Energy 9.25Wh

Nominal Voltage

3.70V
AC Impedance Resistance ≤100mΩ
Discharge Cut-off Voltage 3.0V
Charge Voltage 4.25V
Max. Charge Voltage 4.30V
Charge Time Approx 6.5h 0.2C
Standard charge current 500mA 0.2C
Max. Charge Current 2500mA 1.0C
Max. discharge current ≤45℃ 1.0C
Shipments voltage ≥4.05V
Weight Approx 50.0g
Operating Temperature Charge 0~+60℃
Discharge -10~+60℃

Storage Temperature



less than 1

month

-10~+60℃ Recommended storage temperature: 20℃,at the transportation

less than 6

months

-10~+45℃





2. Application Area



Mainly used in solar backpack, solar hood, solar flashlight, solar car, solar sailing boat, solar airplane, BIPV, etc.





3. Safety instructions



HB lithium battery uses non-polluting materials and is produced with unique technology; it has fully passed UL safety certification, but as a lithium battery, like other types of cells, it has certain dangers when it is mechanically damaged. Therefore, the following precautions must be taken into consideration when handling and using HB lithium batteries:

It is forbidden to use in the hot sunlight of moxibustion, otherwise it may cause battery overheating, fire or function failure.

It is prohibited to disassemble, open, chop or puncture the battery pack with metal.

It is forbidden to expose the battery or battery pack to heat or flame, to put the battery into the fire and to avoid storing it in direct sunlight.

It is forbidden to short-circuit batteries or batteries, and do not place multiple batteries in boxes or drawers at will to avoid shorting each other or by other metal objects.





Lithium Polymer Battery Advantages

1. Safe And Reliable
2. Quality Assurance
3. Price Concessions
4. Long cycle life
5. High energy density
6. No memory effect
7. Environmental protection (not Contain Cadmium, Lead, Mercury)
8. One year warranty
