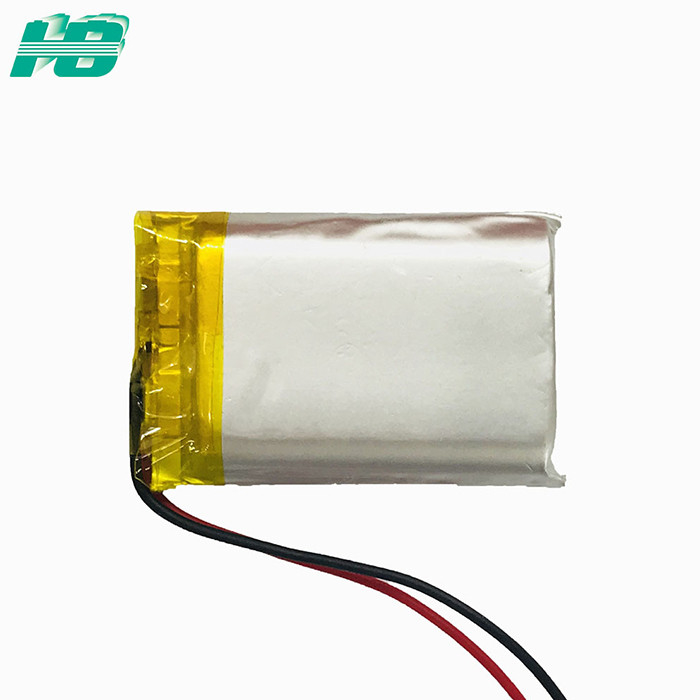

603035 3.7 V 600mah Lithium Battery , Rechargeable Battery Pack For Digital Production

small.img.alt
small.img.alt small.img.alt small.img.alt
Basic Information
Place of Origin: CHINA
Brand Name: HB
Certification: ROHS
Model Number: 603035-600mAh
Minimum Order Quantity: Contact sales to get
Price: Contact sales to get
Packaging Details: Contact sales to get
Delivery Time: Contact sales to get
Payment Terms: T/T
Supply Ability: Contact sales to get
Get Best Price Contact Now Chat Now
Detail Information
NominalVoltage:3.7V NominalCapacity:600mAh
Warranty:1Year CycleLife:300Times
StandardDischargeCurrent:0.2C 11
StandardChargeCurrent:0.2C
HighLight:lithiumternarybattery,lithiumpolymerbattery

Product Description

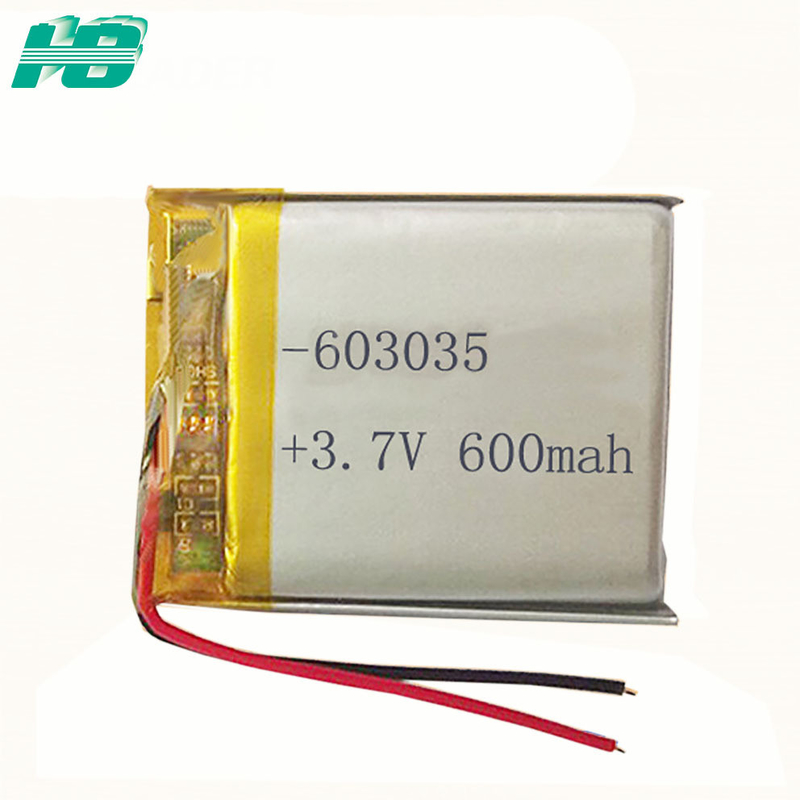

603035 li polymer battery 3.7 v 600mAh li poly rechargeable battery pack
Mainly used in GPS,MP4,watches,earphone and other digital production, etc.

1. Technical Parameters


Items Rated Performance Remarks
Nominal Capacity 600mAh

Discharge at 0.2C after standard charge fully
Nominal Voltage 3.70V

End-of-Voltage at end of Discharge

 2.75V

End-of-Charging Voltage

 4.25V
AC Impedance  ≤100 mΩ AC 1KHz
Standard Charge 0.5C CC/CV→4.25V 0.05Ccutoff Charge time: Approx 2.5h.
Standard Discharge 0.2C CC→2.75V cutoff
Fast Charge 0.3A →0.05C cutoff Charge time: Approx 1h.
Fast Discharge 0.3A→7.5V cutoff
Maximum Continuous Charge Current 0.5A
Maximum Continuous Discharge Current 1.8A


Test method and request

Items  Test Method  Request

Open-Circuit Voltage

The open-circuit voltage shall be measured within 24 hours after standard charge.

 ≥3.7V

Impedance

AC
Impedance Resistance

 ≤100 mΩ

Cycle Life
(0.2C)

Test condition: temperature:
First step:0.5C CC/CV to 4.2V
Second step: Static 10 min
Third step:0.2C CC to 2.5V.
Fourth step: Static 10 min
Fifth step: Repeat first step to fourth step 300cycles, record 300cycle then compare with first cycle value.
Sixth step: end

Higher than 80% of the Initial Capacities of the Cell



2. Safety Performance



Items Test Method and Condition Criteria

Over-Discharge Protection

At 20±5℃ conditions, discharge battery to 6.0V with 0.5C constant current, then discharge with 30Ω loading for 24 hours. Check the appearance of battery.

The appearance is normal,
Noexplosion, No fire,
No smoking, No leakage.

Short-Circuit Protection

After fast-charging, use a cable of 0.1Ω resistance to short the battery for 1 hour. Then check the appearance of battery.
Cut circuit of resistance; test the battery’s voltage after charging with 1C constant current for 5 seconds.

The appearance is normal,
Noexplosion, No fire,
No smoking, No leakage.
