102540 3.7 Volt 1200mah Rechargeable Lithium Battery Pack 500 Times Cycle Life

Basic Information
Place of Origin: CHINA
Brand Name: HB
Certification: ROHS
Minimum Order Quantity: Contact sales to get
Price: Contact sales to get
Packaging Details: Contact sales to get
Delivery Time: Contact sales to get
Payment Terms: T/T
Supply Ability: Contact sales to get
Detail Information
Nominal Voltage: 3.7V Nominal Capacity: 1200mAh
Warranty: 1 Year Cycle Life: 500 Times
Standard Discharge Current: 0.2C Standard Charge Current: 0.2C
High Light:

lithium ternary battery

,

rechargeable lithium batteries


Product Description

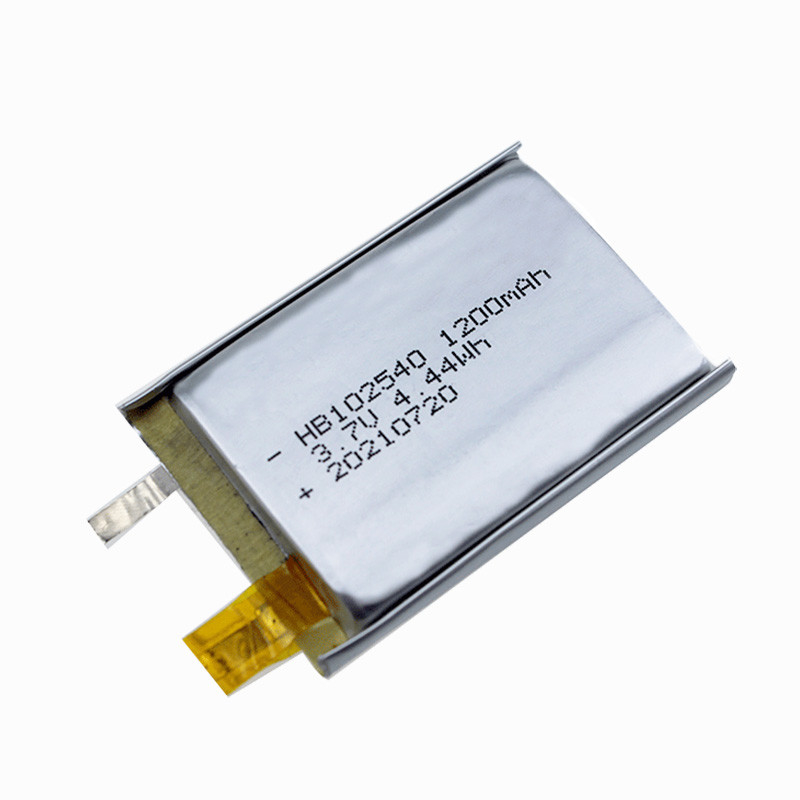

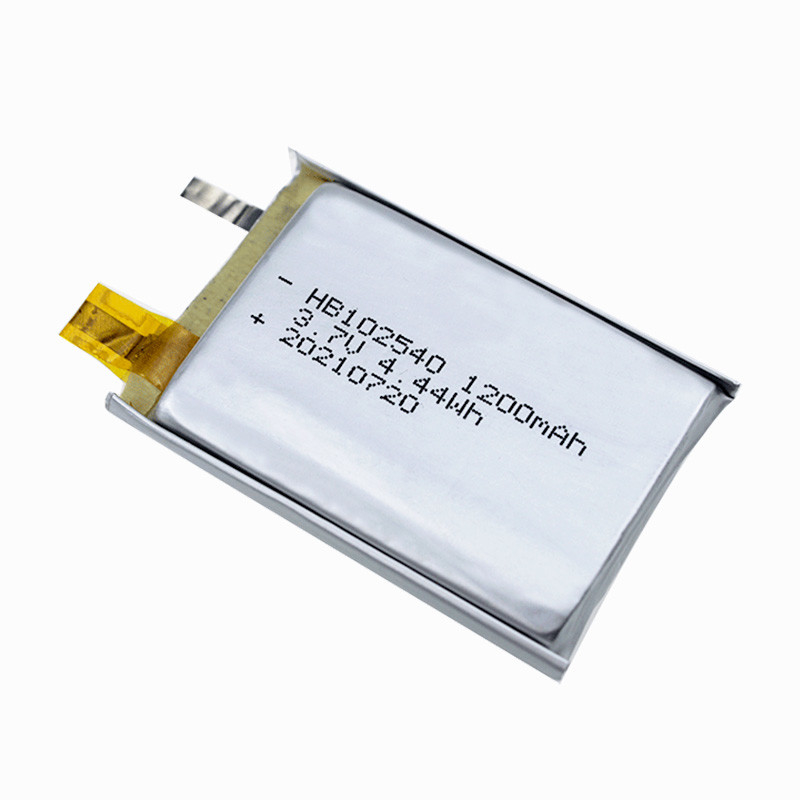

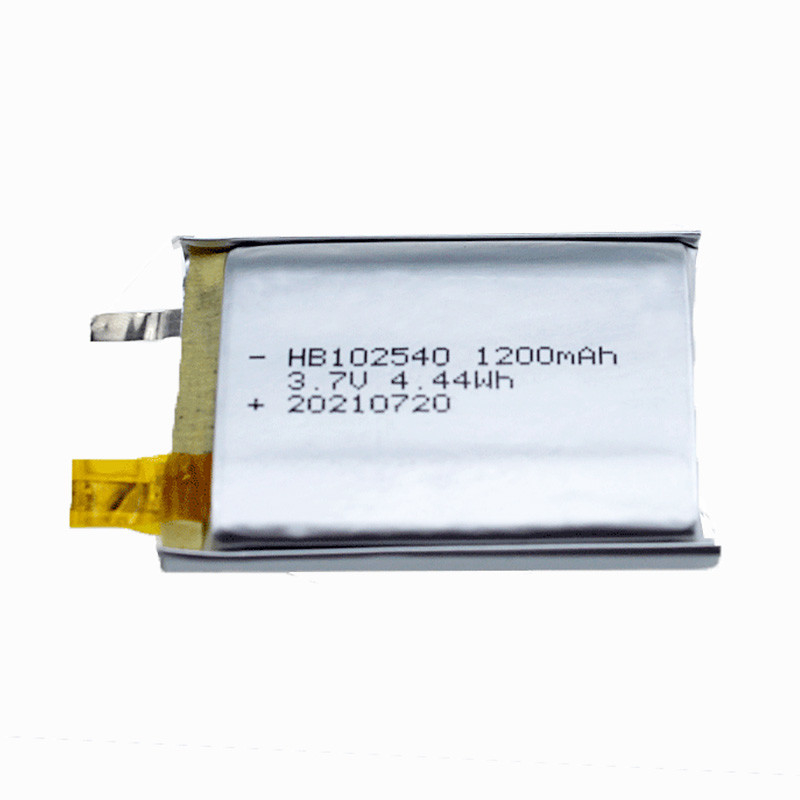

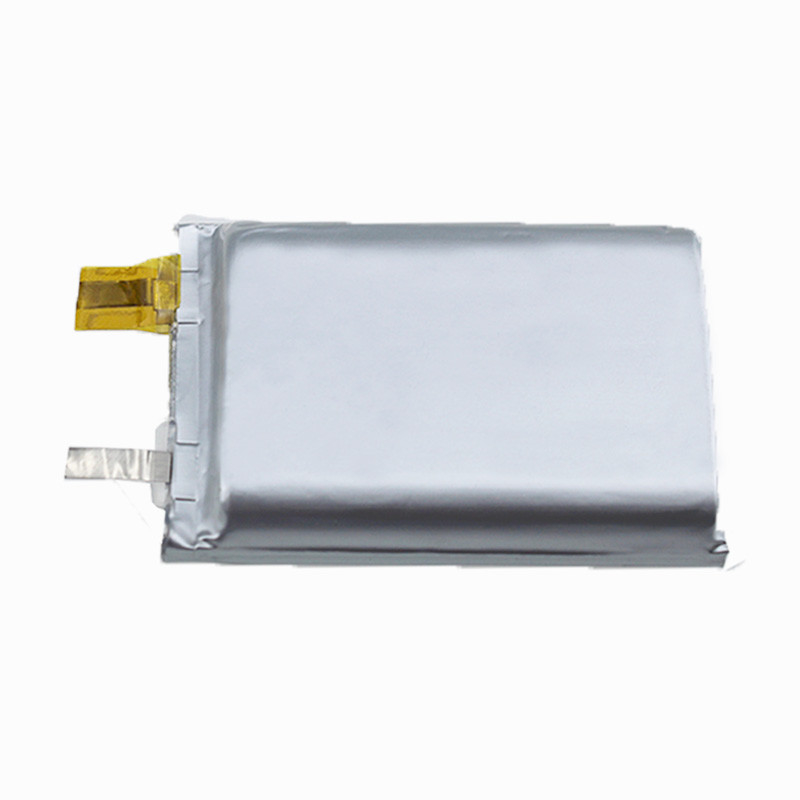

102540 li polymer battery 1200mAh 3.7 v li poly rechargeable battery pack



1.Technical Parameters



Item Rating Note
Capacity Typical 1200mAh

Discharge:240mA ,

240mA

Min 1200mAh
Energy 4.44Wh

Nominal Voltage



3.70V
AC Impedance Resistance ≤100mΩ
Discharge Cut-off Voltage 3.0V
Charge Voltage 4.25V
Max. Charge Voltage 4.30V
Charge Time Approx 6.5h 0.2C
Standard charge current 240mA 0.2C
Max. discharge current ≤45℃ 1.0C
Operating Temperature Charge 0~+60℃
Discharge -10~+60℃

Storage Temperature



less than 1

month

-10~+60℃ Recommended storage temperature: 20℃,at the transportation

less than 6

months

-10~+45℃

HB

It is forbidden to put the battery in water, and should be placed in a cool and dry environment during storage.

It is forbidden to expose the battery or battery pack to heat or flame, to put the battery into the fire and to avoid storing it in direct sunlight.

It is forbidden to short-circuit batteries or batteries, and do not place multiple batteries in boxes or drawers at will to avoid shorting each other or by other metal objects.

It is prohibited to subject a battery or battery pack to mechanical shock.

In the event of leakage, do not contact the leaking liquid directly to the skin or eyes, if contact occurs, apply a large amount of water to flush the contact area.

Do not use non-special charging, which should be done in accordance with the manufacturer's instructions.

Dispose of waste batteries or batteries in accordance with national environmental protection laws.
