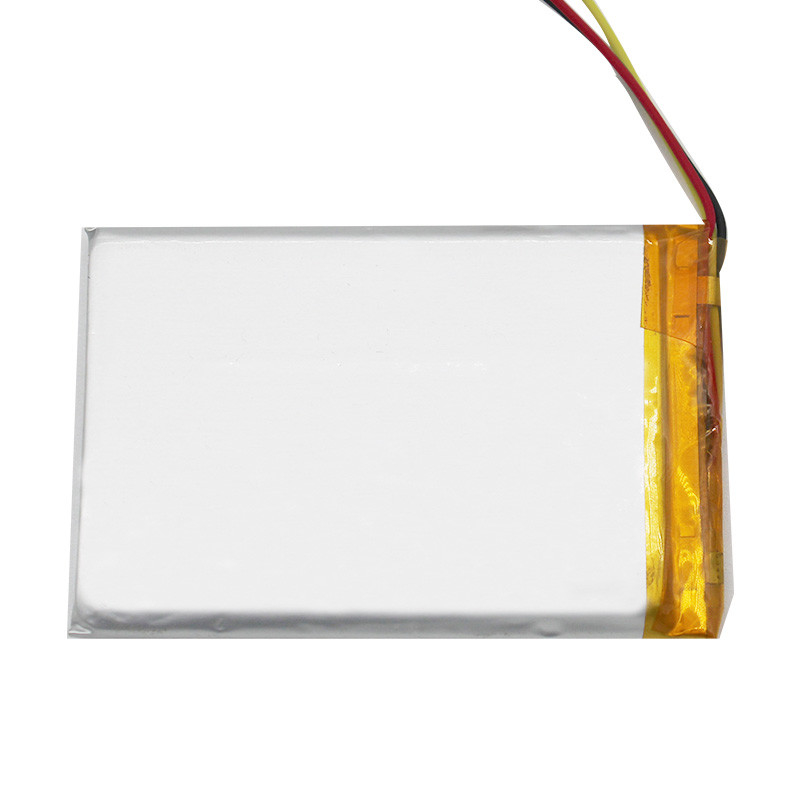

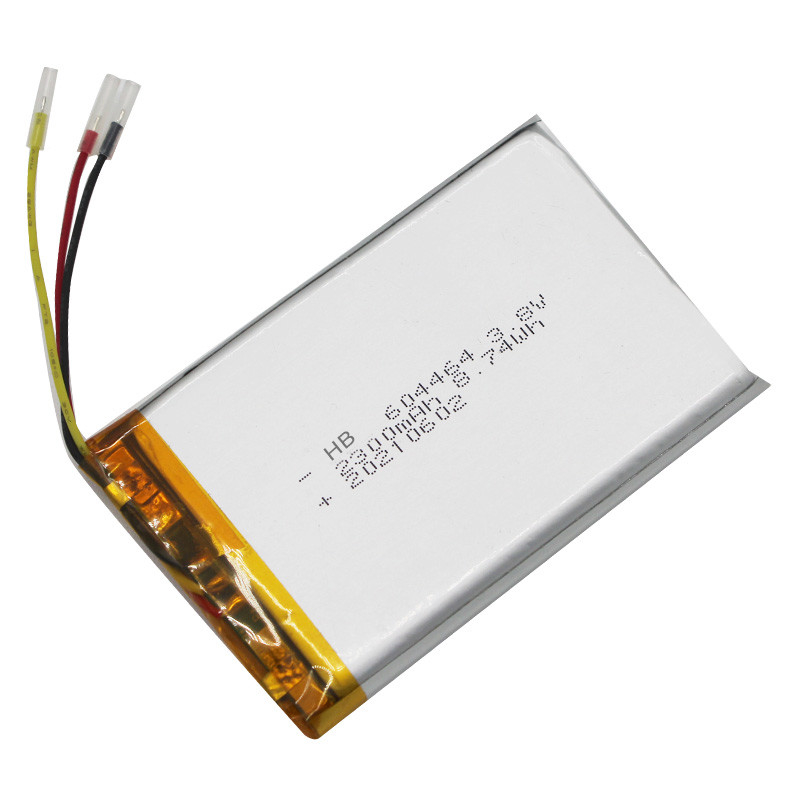

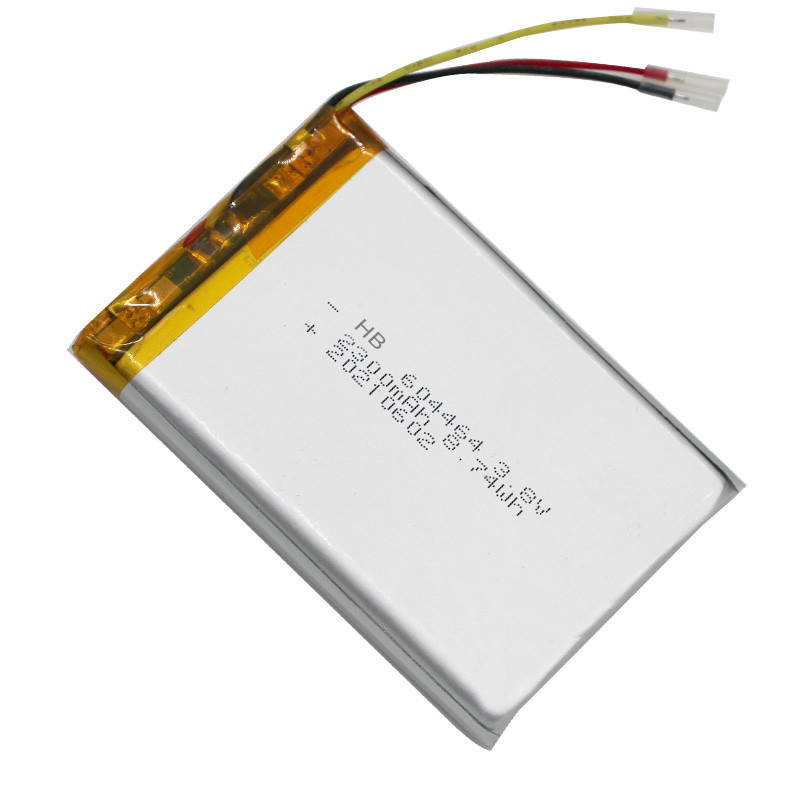

604464 2200mAh 3.8V352828 300mAh 3.8V UL\UN38.3\BIS\KC\CB\MSDS\PSE\ROHS Certification Lithium Polymer Battery
| Place of Origin: | CHINA |
|---|---|
| Brand Name: | HB |
| Certification: | ROHS |
| Model Number: | 604464-2200mAh |
| Minimum Order Quantity: | Contact sales to get |
| Price: | Contact sales to get |
| Packaging Details: | Contact sales to get |
| Delivery Time: | Contact sales to get |
| Payment Terms: | T/T |
| Supply Ability: | Contact sales to get |
| NominalVoltage: | 3.7V | NominalCapacity: | 2200mAh |
|---|---|---|---|
| Warranty: | 1Year | CycleLife: | 300Times |
| StandardDischargeCurrent: | 0.2C | 1 | 1 | StandardChargeCurrent: | 0.2C |
| HighLight: | lithiumternarybattery,rechargeablelithiumbatteries |
604464 2200mAh 3.8V352828 300mAh 3.8V ULUN38.3BISKCCBMSDSPSEROHS Certification Lithium Polymer Battery
1. Technical Parameters
| L | MAX;65.5mm |
| W | MAX;44.5 MM |
| H | MAX;6.15MM |
| L1 | 50±3 MM |
| 1007 22# |
| Items | Rated Performance | Remarks |
| Nominal Capacity | 2200mAh |
Discharge at 0.2C after standard charge fully |
| Nominal Voltage | 3.80V | |
|
End-of-Voltage at end of Discharge |
2.75V | |
|
End-of-Charging Voltage |
4.35V | |
| AC Impedance | ≤100 mΩ | AC 1KHz |
| Standard Charge | 0.2C CC/CV→4.35V 0.05Ccutoff | Charge time: Approx 2.5h. |
| Standard Discharge | 0.2C CC→2.75V cutoff | |
| Fast Charge | 1.1A →0.05C cutoff | Charge time: Approx 1h. |
| Fast Discharge | 1.1A→7.5V cutoff | |
| Maximum Continuous Charge Current | 1.1A | |
| Maximum Continuous Discharge Current | 2.2A | |
|
Operation Temperature Range |
Charge: 0~60℃ | Humidity |
| Discharge: -20~60℃ | ||
|
Storage T/H Range |
-20~50℃/60±25% |
| items | Test Method and Condition | Criteria |
|
Over-Charge Protection |
At 20±5℃ conditions,after full-charging the battery with 0.5C and set the constant current and voltage supplier with 2times of the nominal voltage and current, then load it to the battery for 8h. |
The battery should be no leakage,deformation,smoking and explosion during the test processes. |
|
Over-Discharge Protection |
At 20±5℃ conditions, discharge battery to 6.0V with 0.5C constant current, then discharge with 30Ω loading for 24 hours. Check the appearance of battery. |
The appearance is normal, |
|
Short-Circuit Protection |
After fast-charging, use a cable of 0.1Ω resistance to short the battery for 1 hour. Then check the appearance of battery. |
The appearance is normal, |
