NominalVoltage: | 7.4V | NominalCapacity: | 380mAh |
---|---|---|---|
Warranty: | 1Year | CycleLife: | 500Times |
StandardDischargeCurrent: | 0.2C | 1 | 1 | StandardChargeCurrent: | 0.2C |
HighLight: | rechargeablelithiumbatteries,lithiumpolymerbattery |

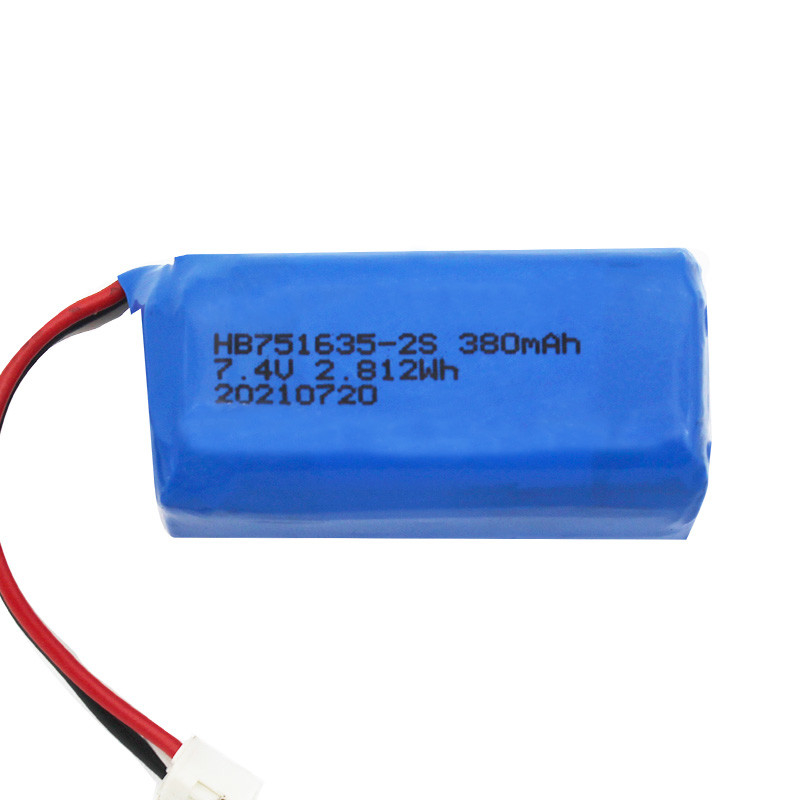

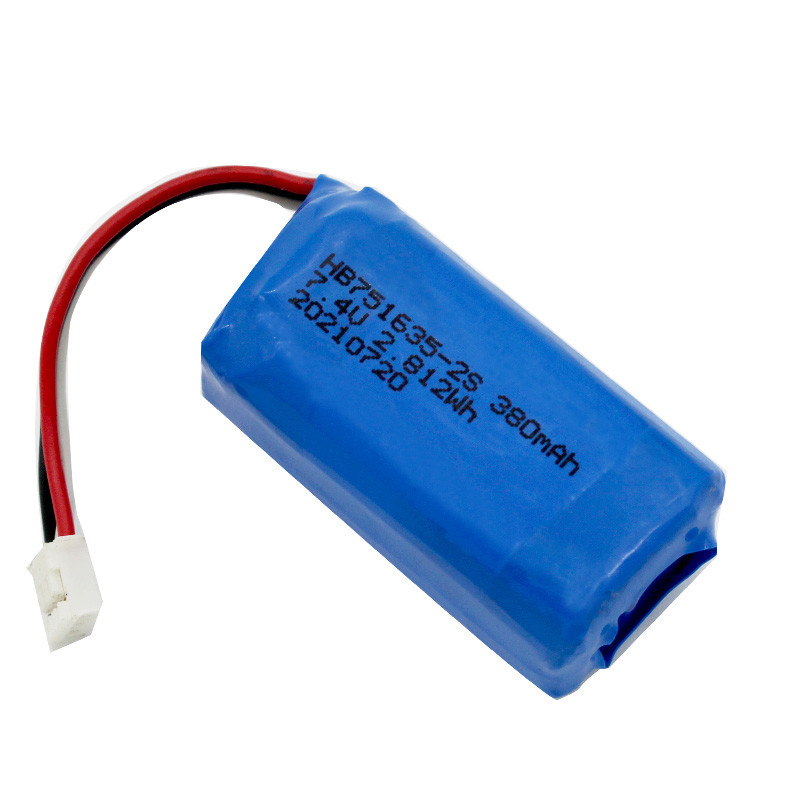

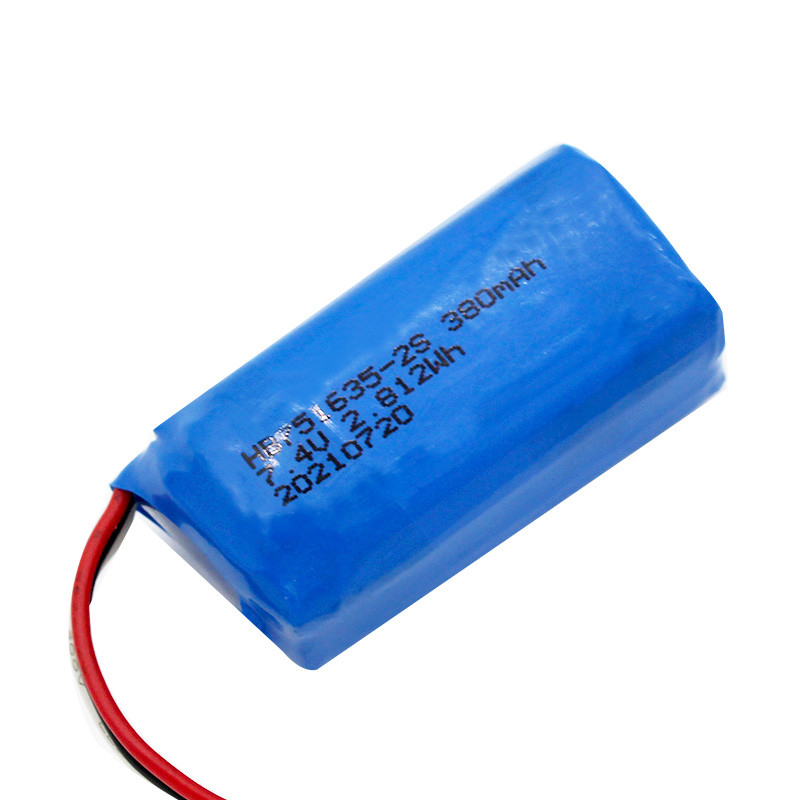

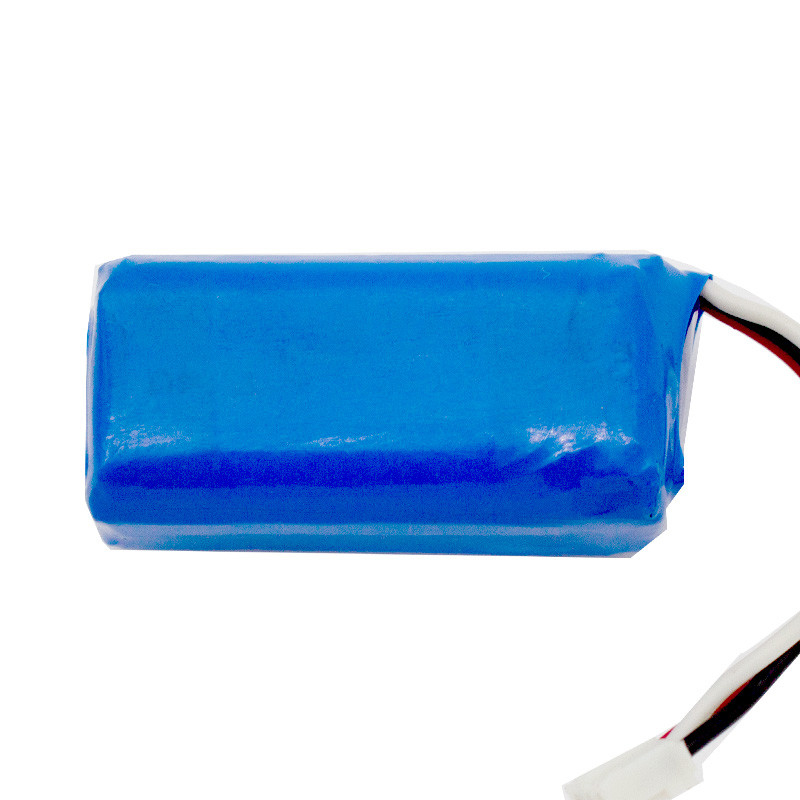

Customized Li Polymer Battery 751635 380mah 7.4v Rechargeable Non Pollution 2S
1.Technical Parameters
Item | Rating | Note | ||
Capacity | Typical | 380mAh |
Discharge:76mA , 76mA |
|
Min | 380mAh | |||
Energy | 1.406Wh | |||
Nominal Voltage |
7.40V | |||
AC Impedance Resistance | ≤100mΩ | |||
Discharge Cut-off Voltage | 6.0V | |||
Charge Voltage | 8.50V | |||
Max. Charge Voltage | 8.60V | |||
Charge Time | Approx 6.5h | 0.2C | ||
Standard charge current | 76mA | 0.2C | ||
Max. Charge Current | 380mA | 1.0C | ||
Max. discharge current | ≤45℃ | 1.0C | ||
Shipments voltage | ≥8.10V | |||
Weight | Approx 7.6g | |||
Operating Temperature | Charge | 0~+60℃ | ||
Discharge | -10~+60℃ |
It is forbidden to put the battery in water, and should be placed in a cool and dry environment during storage.
It is forbidden to use in the hot sunlight of moxibustion, otherwise it may cause battery overheating, fire or function failure.
It is prohibited to disassemble, open, chop or puncture the battery pack with metal.
It is forbidden to expose the battery or battery pack to heat or flame, to put the battery into the fire and to avoid storing it in direct sunlight.
It is prohibited to subject a battery or battery pack to mechanical shock.
In the event of leakage, do not contact the leaking liquid directly to the skin or eyes, if contact occurs, apply a large amount of water to flush the contact area.
Do not use non-special charging, which should be done in accordance with the manufacturer’s instructions.
Note the “plus positive ear” and “-negative ear “signs of the battery pack to ensure proper use.
Keep the battery pack clean and dry.
If the battery pack becomes extremely dirty, use a clean, dry cloth to wipe it.
The best performance and service life of the battery or battery pack can be obtained by charging and discharging at 15°C ~25°C.
Keep the original specification of the product for future reference.
Dispose of waste batteries or batteries in accordance with national environmental protection laws.
