4000mah 1 Cell Lithium Polymer Battery , 855080 Custom Lithium Battery

small.img.alt
small.img.alt small.img.alt small.img.alt small.img.alt
Basic Information
Place of Origin: CHINA
Brand Name: HB
Certification: ROHS
Model Number: HB 855080 4000mAh
Minimum Order Quantity: Contact sales to get
Price: Contact sales to get
Packaging Details: Contact sales to get
Delivery Time: Contact sales to get
Payment Terms: T/T
Supply Ability: Contact sales to get
Get Best Price Contact Now Chat Now
Detail Information
NominalVoltage:3.7VNominalCapacity:4000mAh
Warranty:1YearCycleLife:500Times
StandardDischargeCurrent:0.2C11
StandardChargeCurrent:0.2C
HighLight:lithiumternarybattery,rechargeablelithiumbatteries

Product Description

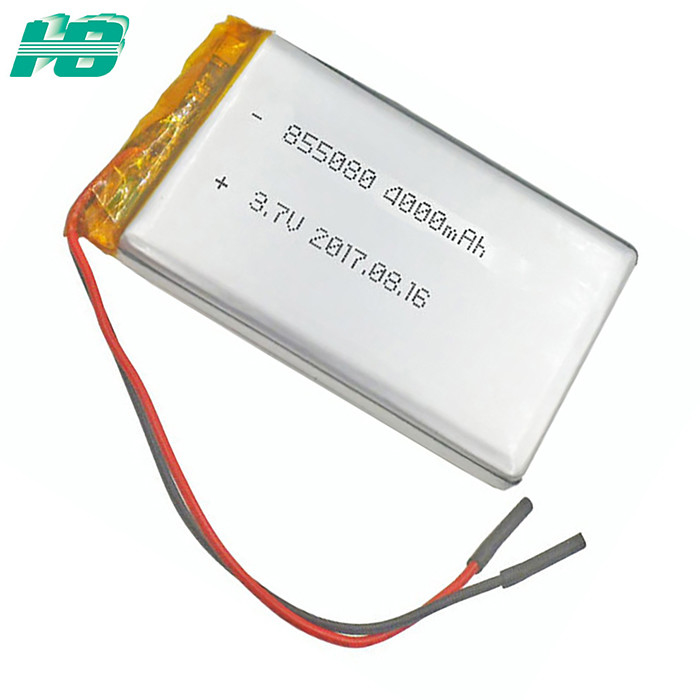

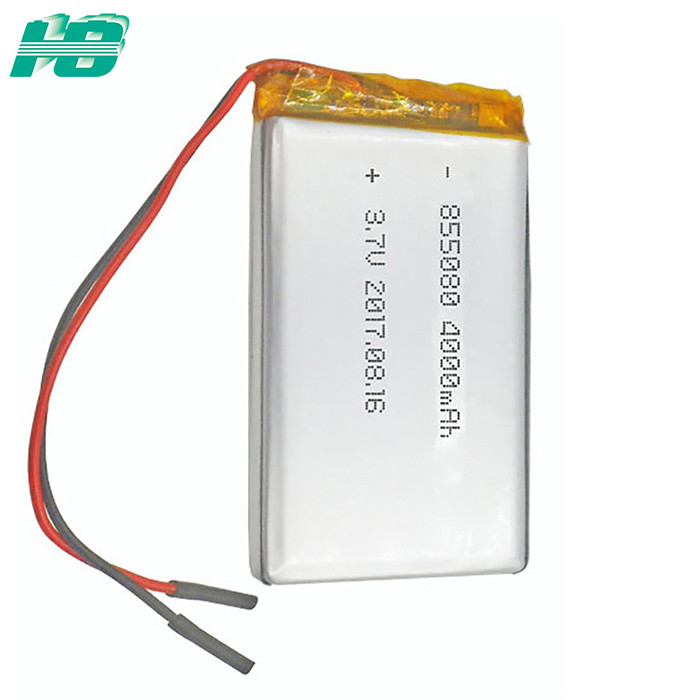

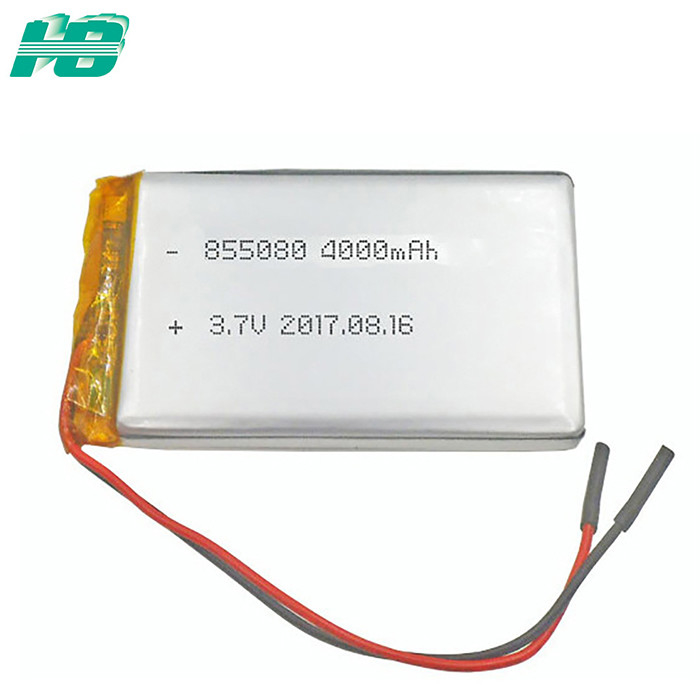

Custom 855080 3.7 v li poly battery 4000mAh 1 cell lithium polymer battery



1.Technical Parameters



Item Rating Note
Capacity Typical 4000mAh

Discharge:800mA ,

800mA
Min 4000mAh
Energy 14.8Wh

Nominal Voltage

 3.70V
AC Impedance Resistance ≤100mΩ
Discharge Cut-off Voltage 3.0V
Charge Voltage 4.25V
Max. Charge Voltage 4.30V
Charge Time Approx 6.5h 0.2C
Standard charge current 800mA 0.2C
Max. Charge Current 4000mA 1.0C
Max. discharge current ≤45℃ 1.0C
Shipments voltage ≥4.05V
Weight Approx 80.0g
Operating Temperature Charge 0~+60℃
Discharge –10~+60℃





HB lithium battery uses non-polluting materials and is produced with unique technology; it has fully passed UL safety certification, but as a lithium battery, like other types of cells, it has certain dangers when it is mechanically damaged.

Do not use non-special charging, which should be done in accordance with the manufacturer’s instructions.

Note the “plus positive ear” and “-negative ear “signs of the battery pack to ensure proper use.

Keep the battery pack clean and dry.

If the battery pack becomes extremely dirty, use a clean, dry cloth to wipe it.

Do not charge the battery pack for a long time.

The best performance and service life of the battery or battery pack can be obtained by charging and discharging at 15°C ~25°C.

Keep the original specification of the product for future reference.

Dispose of waste batteries or batteries in accordance with national environmental protection laws.
