| Place of Origin: | CHINA |
|---|---|
| Brand Name: | HB |
| Certification: | ROHS |
| Minimum Order Quantity: | Contact sales to get |
| Price: | Contact sales to get |
| Packaging Details: | Contact sales to get |
| Delivery Time: | Contact sales to get |
| Payment Terms: | T/T |
| Supply Ability: | Contact sales to get |
| Nominal Voltage: | 3.7V | Nominal Capacity: | 1700mAh |
|---|---|---|---|
| Warranty: | 1 Year | Cycle Life: | 500 Times |
| Standard Discharge Current: | 0.2C | Standard Charge Current: | 0.2C |
| High Light: | lithium ternary battery,rechargeable lithium batteries |
||

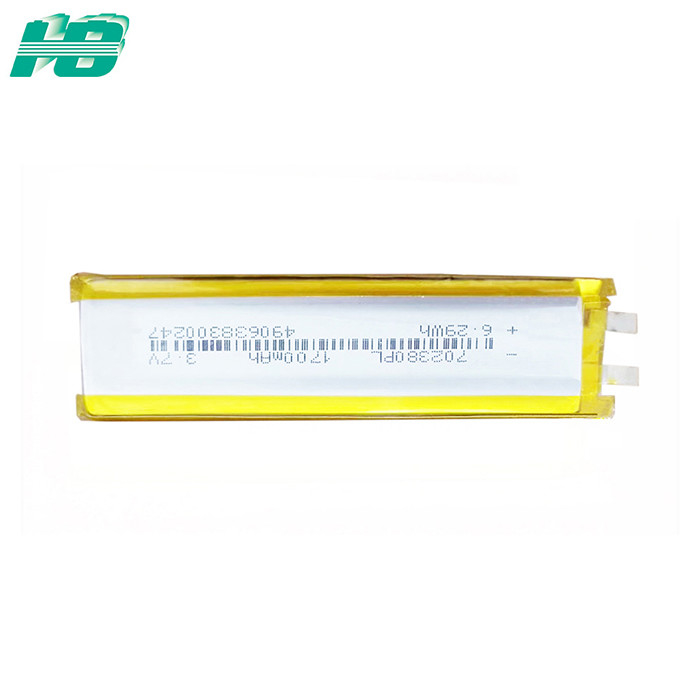

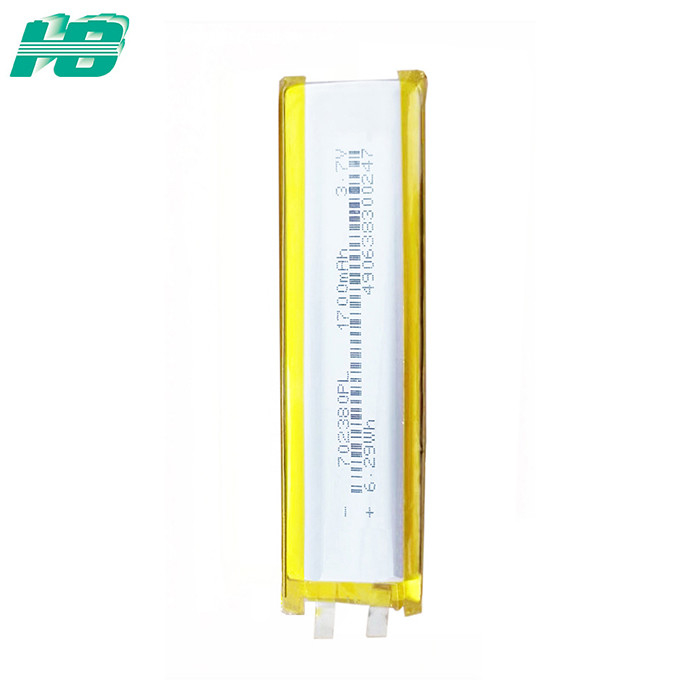

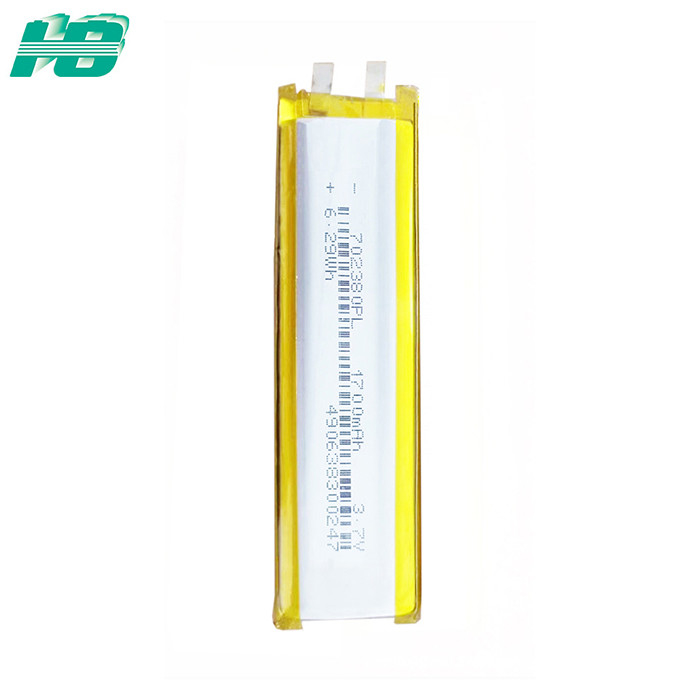

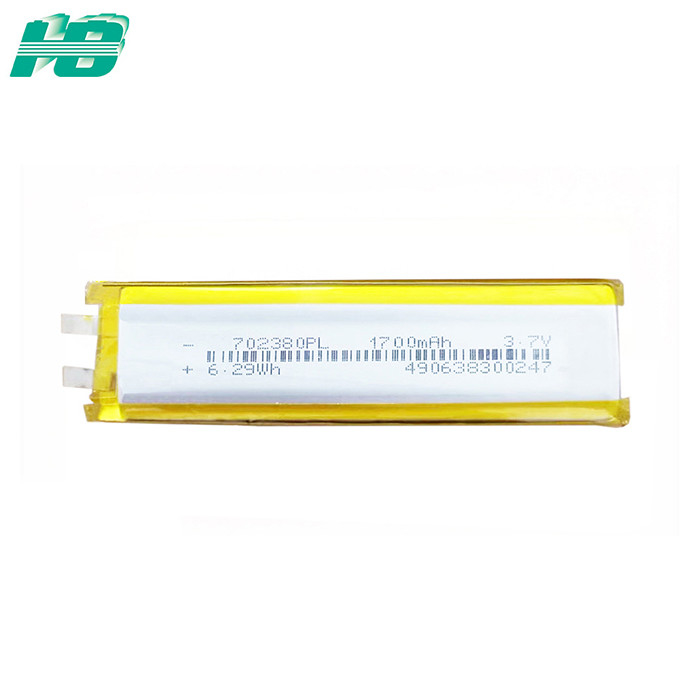

702380 li polymer rechargeable battery 1700mAh LED 3.7V soft pack battery
1.Technical Parameters
| Item | Rating | Note | ||
|
Nominal Voltage |
3.70V | |||
| AC Impedance Resistance | ≤150mΩ | |||
| Discharge Cut-off Voltage | 3.0V | |||
| Charge Voltage | 4.25V | |||
| Max. Charge Voltage | 4.30V | |||
| Charge Time | Approx 6.5h | 0.2C | ||
| Standard charge current | 340mA | 0.2C | ||
| Max. Charge Current | 1700mA | 1.0C | ||
| Max. discharge current | ≤45℃ | 1.0C | ||
| Shipments voltage | ≥4.05V | |||
| Weight | Approx 34.0g | |||
| Operating Temperature | Charge | 0~+60℃ | ||
| Discharge | -10~+60℃ | |||
HB lithium battery uses non-polluting materials and is produced with unique technology; it has fully passed UL safety certification, but as a lithium battery, like other types of cells, it has certain dangers when it is mechanically damaged.
It is forbidden to put the battery in water, and should be placed in a cool and dry environment during storage.
It is forbidden to use in the hot sunlight of moxibustion, otherwise it may cause battery overheating, fire or function failure.
It is prohibited to disassemble, open, chop or puncture the battery pack with metal.
It is prohibited to subject a battery or battery pack to mechanical shock.
In the event of leakage, do not contact the leaking liquid directly to the skin or eyes, if contact occurs, apply a large amount of water to flush the contact area.
Do not use non-special charging, which should be done in accordance with the manufacturer's instructions.
Note the "plus positive ear" and "-negative ear "signs of the battery pack to ensure proper use.
Keep the battery pack clean and dry.
