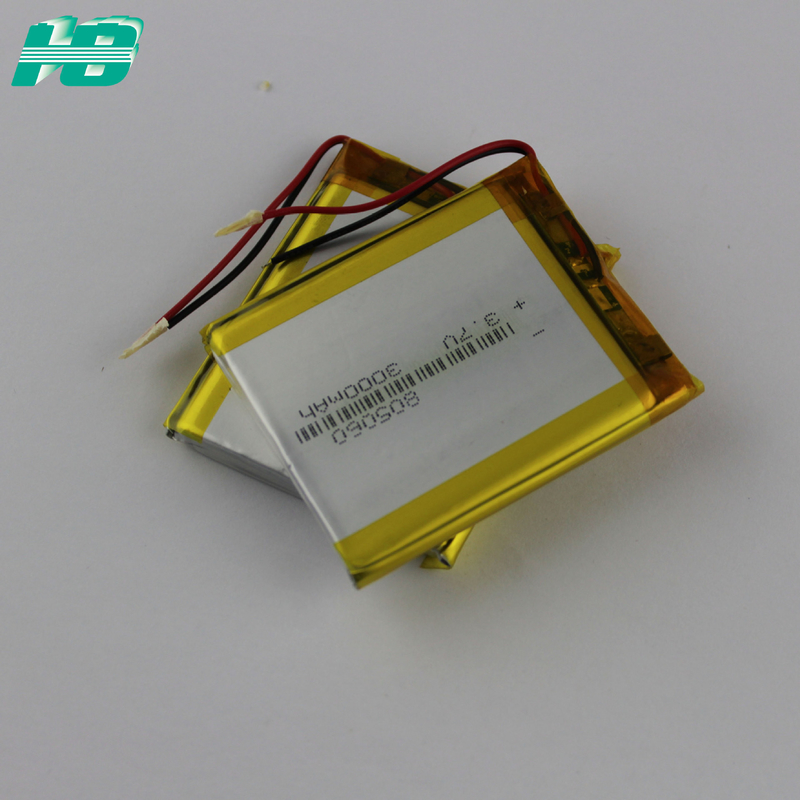

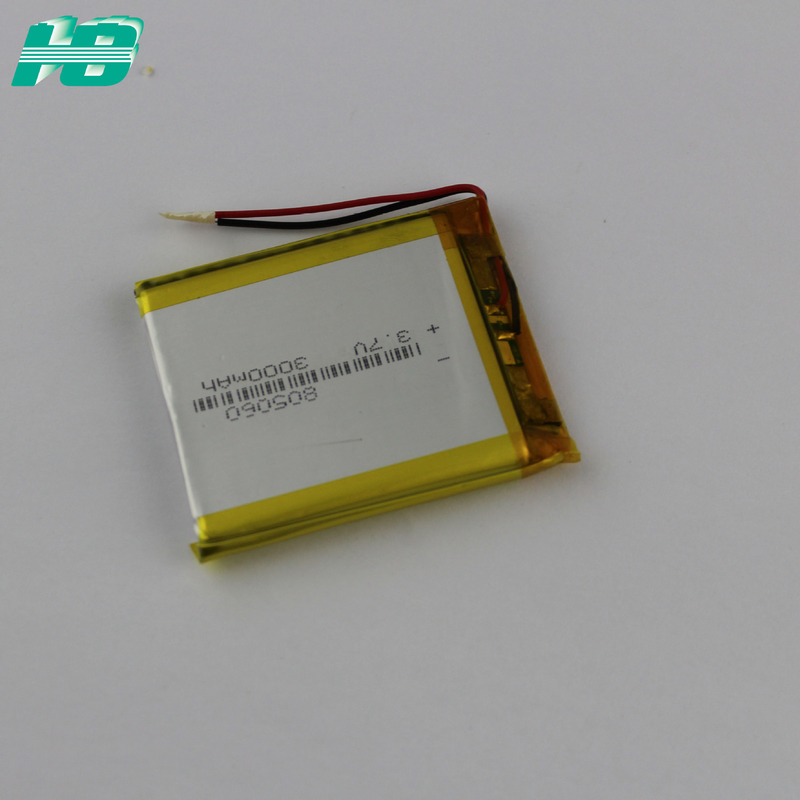

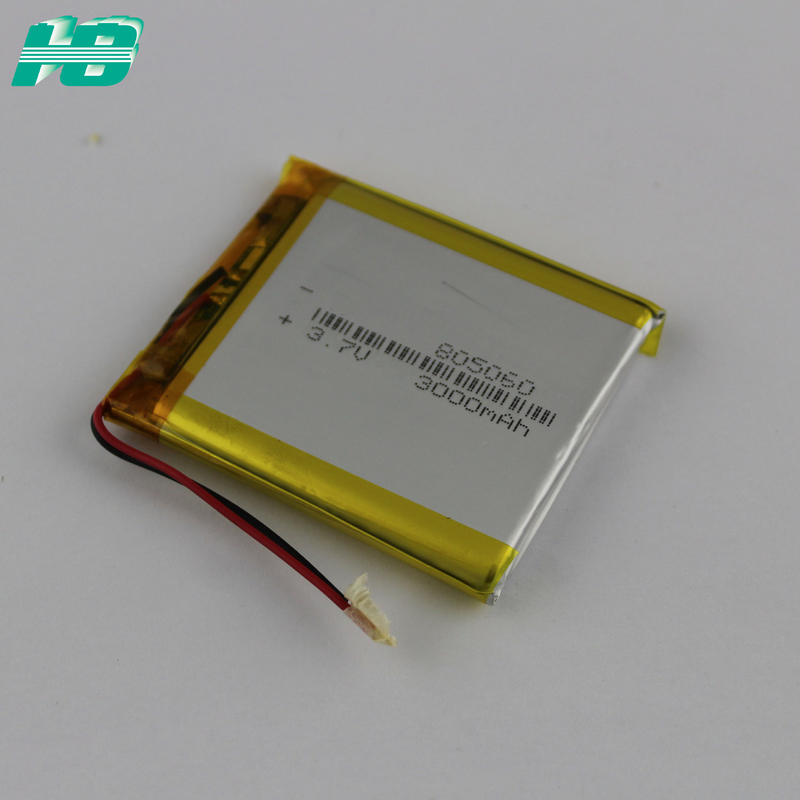

Large Capacity High Temperature Lithium Ion Battery Ternary Type 3000mah 3.7v

Basic Information
Place of Origin: CHINA
Brand Name: HB
Certification: ROHS
Model Number: 805060-3000mAh
Minimum Order Quantity: Contact sales to get
Price: Contact sales to get
Packaging Details: Contact sales to get
Delivery Time: Contact sales to get
Payment Terms: T/T
Supply Ability: Contact sales to get
Detail Information
Nominal Voltage: 3.7V Nominal Capacity: 3000mAh
Warranty: 1 Year Cycle Life: 300 Times
Standard Discharge Current: 0.2C Standard Charge Current: 0.2C
High Light:

ternary lithium ion battery

,

high temperature resistant battery


Product Description

805060 polymer battery 3000mAh large capacity 3.7V ternary lithium ion battery


size and capacity can be customized according to your requirements !

1.Technical Parameters

Items

Specification description

Appearance

The surface is clear and is free of scratch, mechanical cuts and match well with the host.

Charge voltage 4.2V
Nominal voltage 3.7V
Min Capacity

3000mAh(at 0.2C rate discharge after standard charge)

Max. charge current

1.0 C

Standard Discharge method

0.2C

Max. discharge current

1.0C

Storage Temperature and Humidity Range

-5~35°C

Humidity: 35%~85% RH

Charge the battery every three months. Recommended storage temperature is 25±5°C of SOC 50%~60%.

Cycle Life

≥300 cycles, more than 80% at 0.2C charge and 0.2C discharge

Pack Initial InternalImpedance

≤500mΩ (50% SOC, Measure the AC impedancet 1kHz)

Delivery voltage

3.7~4.05V



2.Safety Performance





Items Test Method and Condition Criteria

Over-Charge Protection



At 20±5℃ conditions,after full-charging the battery with 0.5C and set the constant current and voltage supplier with 2times of the nominal voltage and current, then load it to the battery for 8h.

The battery should be no leakage,deformation,smoking and explosion during the test processes.

Over-Discharge Protection

At 20±5℃ conditions, discharge battery to 6.0V with 0.5C constant current, then discharge with 30Ω loading for 24 hours. Check the appearance of battery.

The appearance is normal,

Noexplosion, No fire,

No smoking, No leakage.





The products are widely used in medical, 3C consumer electronics, public security, power communication, secure communication, transportation and logistics, exploration and mapping, military industry, and other fields.
