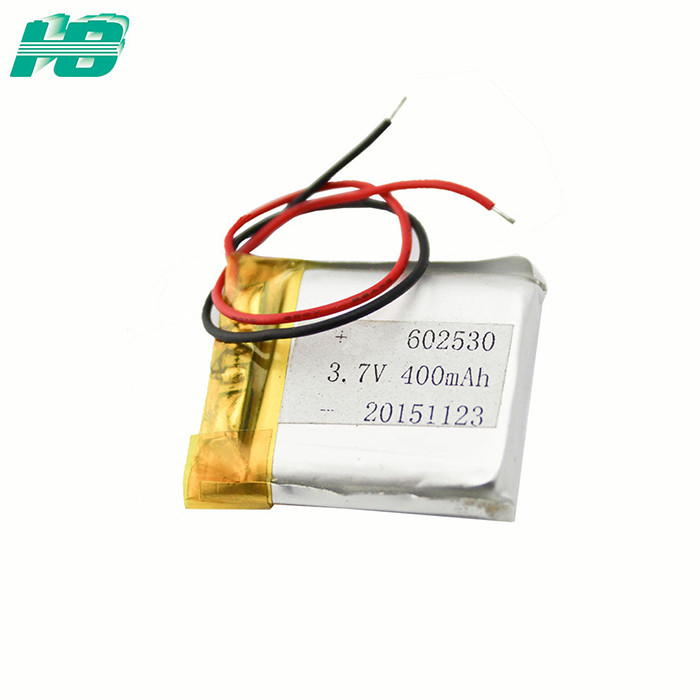

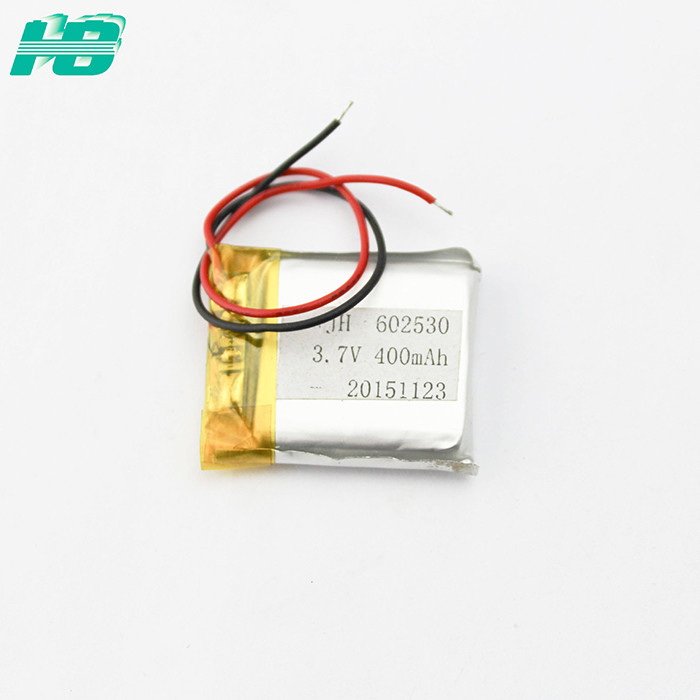

602530 Li Polymer Battery 400mAh Custom Capacity 3.7v UL UN CB KC Certification

Basic Information
Place of Origin: CHINA
Brand Name: HB
Certification: ROHS
Minimum Order Quantity: Contact sales to get
Price: Contact sales to get
Packaging Details: Contact sales to get
Delivery Time: Contact sales to get
Payment Terms: T/T
Supply Ability: Contact sales to get
Detail Information
Nominal Voltage: 3.7V Nominal Capacity: 400mAh
Warranty: 1 Year Cycle Life: 500 Times
Standard Discharge Current: 0.2C Standard Charge Current: 0.2C
High Light:

rechargeable lithium batteries

,

lithium polymer battery


Product Description

602530 polymer lithium battery 400mAh custom 3.7V UL UN CB KC certification



1.Technical Parameters



Item Rating Note
Capacity Typical 400mAh

Discharge:80mA ,

80mA

Min 400mAh
Energy 1.44Wh

Nominal Voltage

3.70V
AC Impedance Resistance ≤100mΩ
Discharge Cut-off Voltage 3.0V
Charge Voltage 4.25V
Max. Charge Voltage 4.30V
Charge Time Approx 6.5h 0.2C
Standard charge current 80mA 0.2C
Max. Charge Current 400mA 1.0C
Max. discharge current ≤45℃ 1.0C
Shipments voltage ≥4.05V
Weight Approx 8.0g
Operating Temperature Charge 0~+60℃
Discharge -10~+60℃

Storage Temperature



less than 1

month

-10~+60℃ Recommended storage temperature: 20℃,at the transportation

less than 6

months

-10~+45℃



HB





.Safety instructions

It is forbidden to expose the battery or battery pack to heat or flame, to put the battery into the fire and to avoid storing it in direct sunlight.

It is forbidden to short-circuit batteries or batteries, and do not place multiple batteries in boxes or drawers at will to avoid shorting each other or by other metal objects.

It is prohibited to subject a battery or battery pack to mechanical shock.

In the event of leakage, do not contact the leaking liquid directly to the skin or eyes, if contact occurs, apply a large amount of water to flush the contact area.

Do not use non-special charging, which should be done in accordance with the manufacturer's instructions.

Note the "plus positive ear" and "-negative ear "signs of the battery pack to ensure proper use.

Keep the battery pack clean and dry.

If the battery pack becomes extremely dirty, use a clean, dry cloth to wipe it.

Do not charge the battery pack for a long time.
