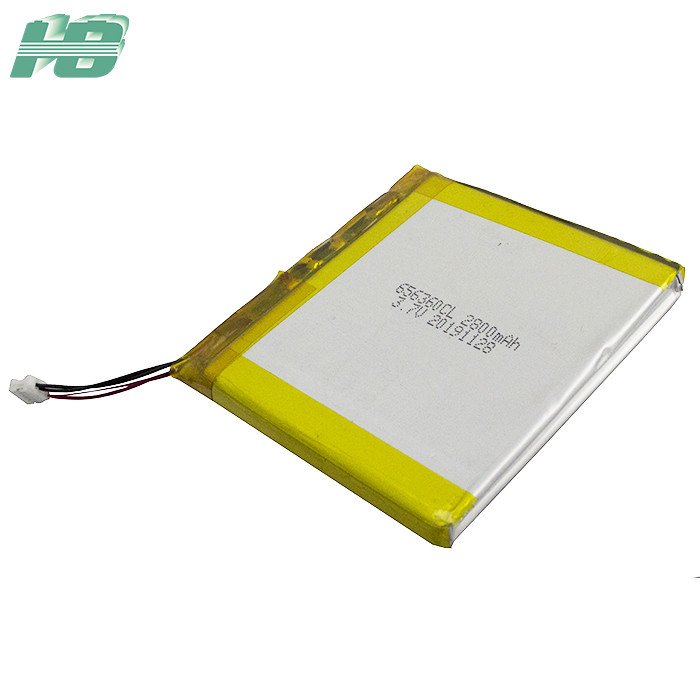

656360 Low Temperature Lithium Ion Battery 2800mAh 3.7V Soft Pack Type
| Place of Origin: | CHIAN |
|---|---|
| Brand Name: | HB |
| Certification: | ROHS |
| Model Number: | 656360-2800mAh |
| Minimum Order Quantity: | Contact sales to get |
| Price: | Contact sales to get |
| Packaging Details: | Contact sales to get |
| Delivery Time: | Contact sales to get |
| Payment Terms: | T/T |
| Supply Ability: | Contact sales to get |
| NominalVoltage: | 3.7V | NominalCapacity: | 2800mAh |
|---|---|---|---|
| Warranty: | 1Year | CycleLife: | 500Times |
| StandardDischargeCurrent: | 0.2C | 1 | 1 | StandardChargeCurrent: | 0.2C |
| HighLight: | agvlithiumbattery,softpacklithiumbattery |
656360 Low Temperature Lithium Ion Battery 2800mAh 3.7V Soft Pack Type
Typical Capacity:2800mAh
Min. Capacity:2700mAh
Energy:10.36Wh
Product Specification
|
No. |
Items |
Rated Performance |
Remarks |
|
1 |
Nominal Capacity |
2800mAh |
Discharge at 0.2C after standard charge fully. |
|
2 |
Nominal Voltage |
3.70V |
|
|
3 |
End-of-Voltage at end of Discharge |
2.75V |
|
|
4 |
End-of-Charging Voltage/ |
4.25V |
|
|
5 |
AC Impedance |
≤100 mΩ |
AC 1KHz |
|
6 |
Standard Charge |
0.2C CC/CV→4.2V 0.05Ccutoff |
Charge time:Approx 5h. |
|
7 |
Standard Discharge |
0.2C CC→2.50V cutoff |
|
|
8 |
Fast Charge |
1.4A →0.05C cutoff |
Charge time:Approx 5h. |
|
9 |
Fast Discharge |
1.4A→2.5V cutoff |
|
|
10 |
Maximum Continuous Charge Current |
1.4A |
|
|
11 |
Maximum Continuous Discharge Current |
2.8A |
|
|
12 |
Operation Temperature Range |
Charge: 0~45℃ |
Humidity 60±25% |
|
Discharge: -40~50℃ |
|||
|
13 |
Storage T/H Range |
-20~50℃/60±25% |
|
|
14 |
Discharge at Low Temperature |
1) Standard Charge 2) Put the cell into -40±2℃ low temp oven for 4 hours and discharge at 0.2C CC to 2.5V at the low temperature. |
0.2C Discharge capacity 80% |

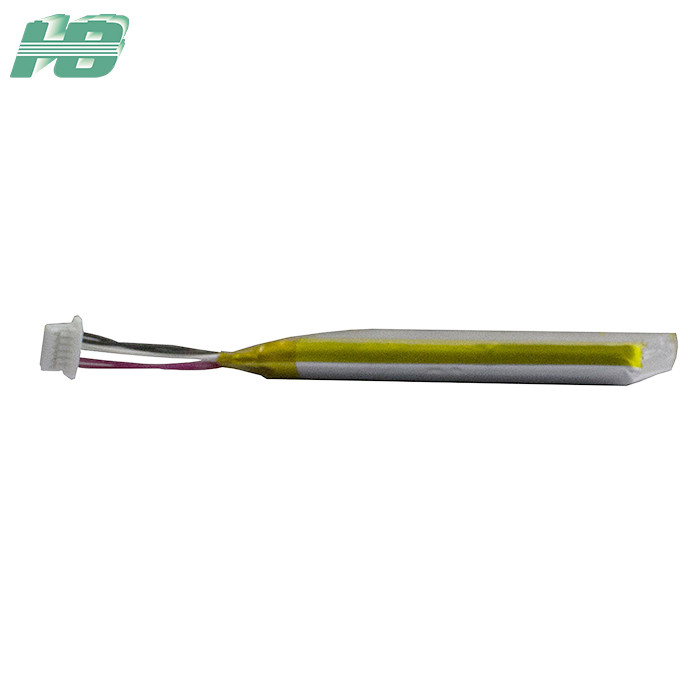

Product Configuration
|
L |
MAX;64.0mm |
|
W |
MAX;6.65mm |
|
H |
MAX;61.5mm |
|
Wire Length |
50±3 MM |
|
Wire/Terminal |
1007 22# |
