1260100 3.7 V 10000mah Lithium Ion Battery Rechargeable Lithium Batteries

Basic Information
Place of Origin: CHINA
Brand Name: HB
Certification: ROHS
Model Number: 1260100- 10000mAh
Minimum Order Quantity: Contact sales to get
Price: Contact sales to get
Packaging Details: Contact sales to get
Delivery Time: Contact sales to get
Payment Terms: T/T
Supply Ability: Contact sales to get
Detail Information
Nominal Voltage: 3.7V Nominal Capacity: 10000mAh
Warranty: 1 Year Cycle Life: 300 Times
Standard Discharge Current: 0.2C Standard Charge Current: 0.2C
High Light:

large capacity lithium ion battery

,

ternary lithium ion battery


Product Description

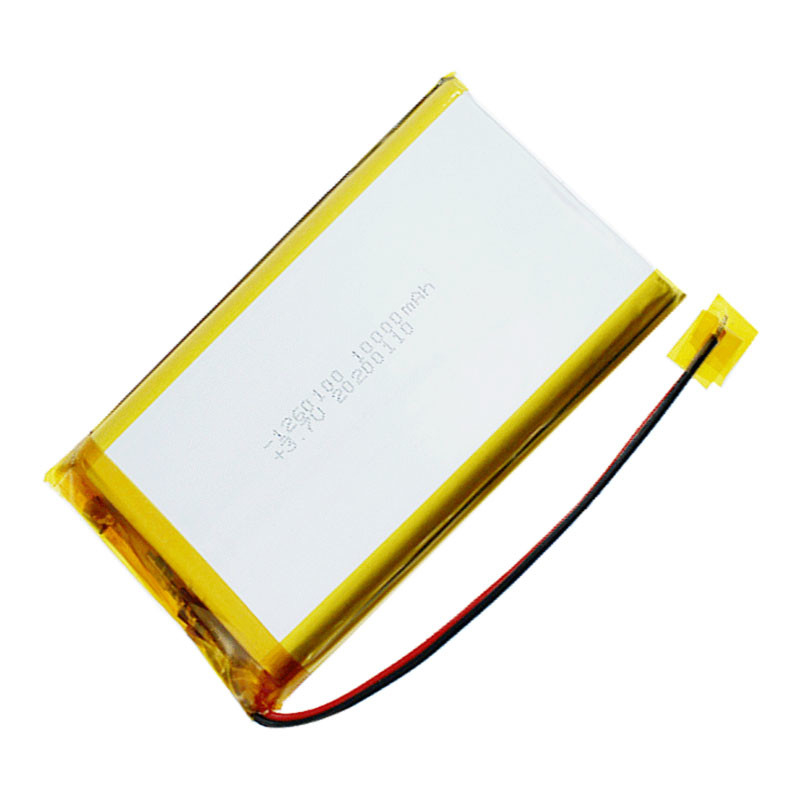

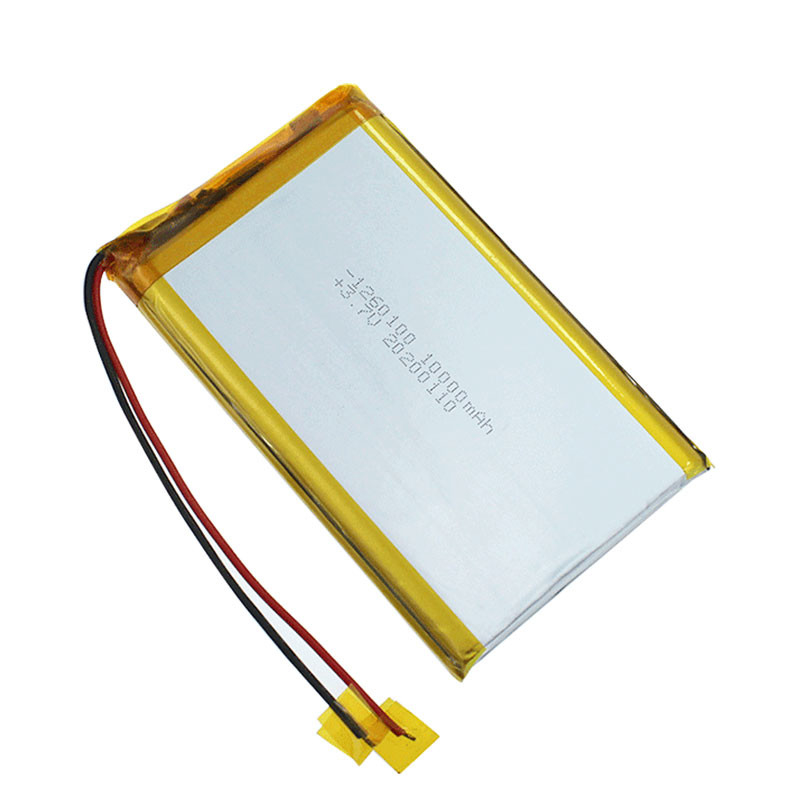

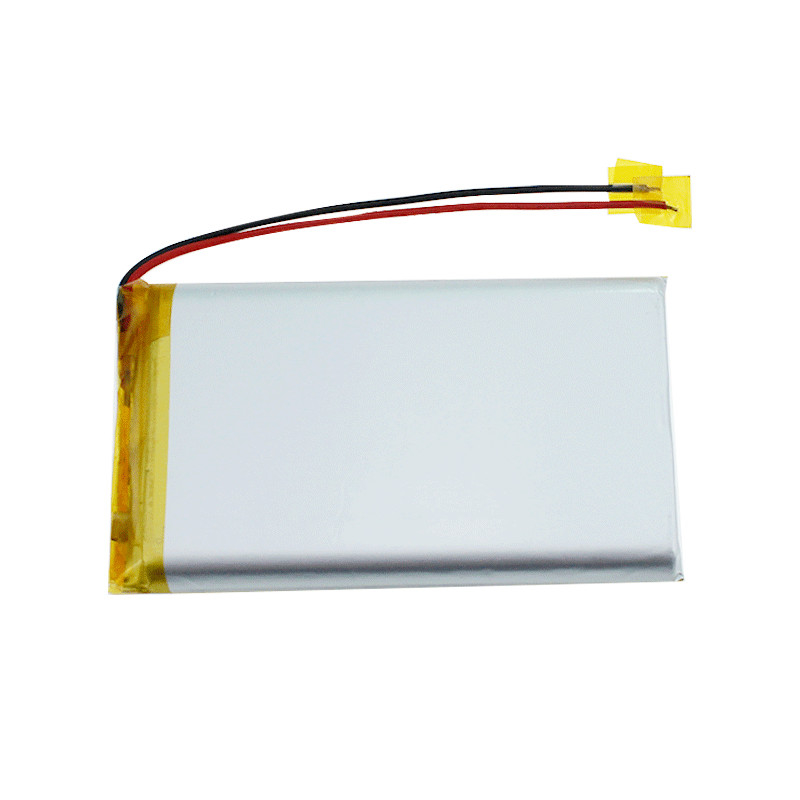

1260100 polymer lithium battery 3.7V10000mAh rechargeable battery

Dongguan Hoppt Light Technology Co., Ltd. provides the most attentive service to customers with the most preferential and competitive prices, the highest quality and reliable product quality, the most advanced research and development technology and the most efficient production efficiency.
 HB

Application
1. Lights, torch, searchlight, miner lamp, safety helmets, safety headlights;
2. Bluetooth headsets, e-books, mobile DVD, mobile TV, mobile scales, handheld computer, positioning devices, interphone, storing power.
3. Wireless meter reading, wireless ordering, wireless data transmitter, handheld scanner, mini-speaker, R/C toys, robot.

Technical Parameters

Items

Specification description

Appearance

The surface is clear and is free of scratch, mechanical cuts and match well with the host.

Charge voltage4.2V
Nominal voltage3.7V
Min Capacity

10000mAh(at 0.2C rate discharge after standard charge)

Standard Charge method

0.2C CC(constant current) charge to 4.2V, then CV(constant voltage 4.2V) charge till charge current decline to £ 0.01C

Max. charge current

1.0 C

Standard Discharge method

0.2C

Max. discharge current

1.0C

Operating temperature

Charging: 0°C ~ 45°C
Discharging: -20°C ~ 60°C

Storage Temperature and Humidity Range

-5~35°C
Humidity: 35%~85% RH

Charge the battery every three months. Recommended storage temperature is 25±5°C of SOC 50%~60%.

Cycle Life

≥300 cycles, more than 80% at 0.2C charge and 0.2C discharge

Pack Initial InternalImpedance

≤500mΩ (50% SOC, Measure the AC impedancet 1kHz)

Pack weight

Approx 6.0 g

Delivery voltage

3.7~4.05V


Safety Performance

ItemsTest Method and ConditionCriteria

Over-Charge Protection


At 20±5℃ conditions, after full-charging the battery with 0.5C and set the constant current and voltage supplier with 2times of the nominal voltage and current, then load it to the battery for 8h.

The battery should be no leakage, deformation, smoking and explosion during the test processes.

Over-Discharge Protection

At 20±5℃ conditions, discharge battery to 3.0V with 0.5C constant current, then discharge with 30Ω loading for 24 hours. Check the appearance of battery.

The appearance is normal,
No explosion, No fire,
No smoking, No leakage.

Short-Circuit Protection

After fast-charging, use a cable of 0.1Ω resistance to short the battery for 1 hour. Then check the appearance of battery.
Cut circuit of resistance; test the battery’s voltage after charging with 1C constant current for 5 seconds.

The appearance is normal,
No explosion, No fire,
No smoking, No leakage.
