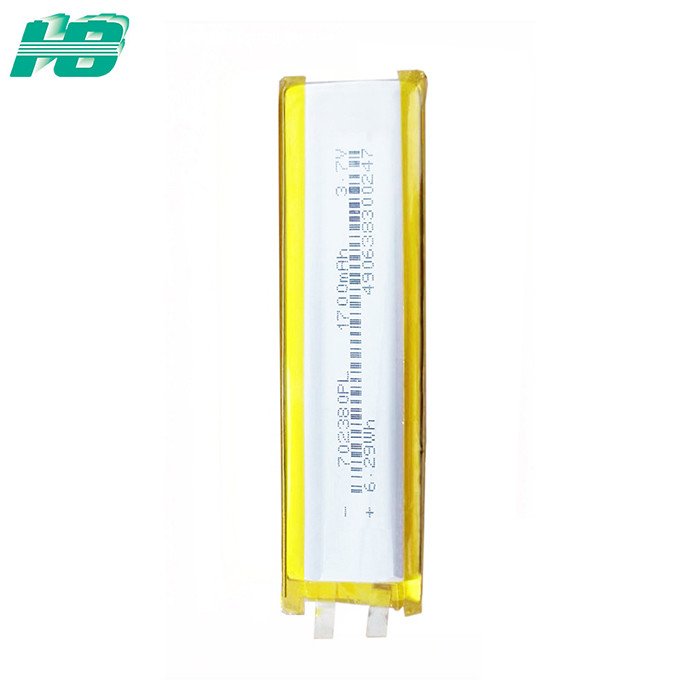

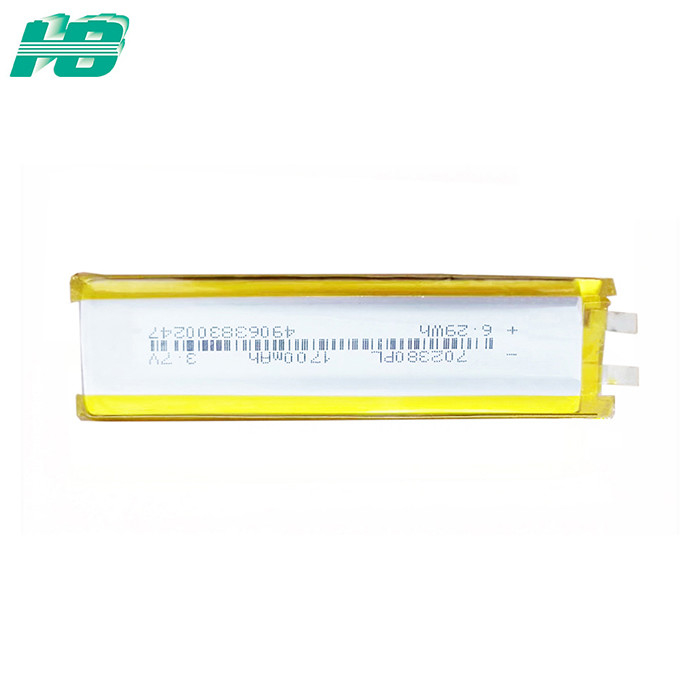

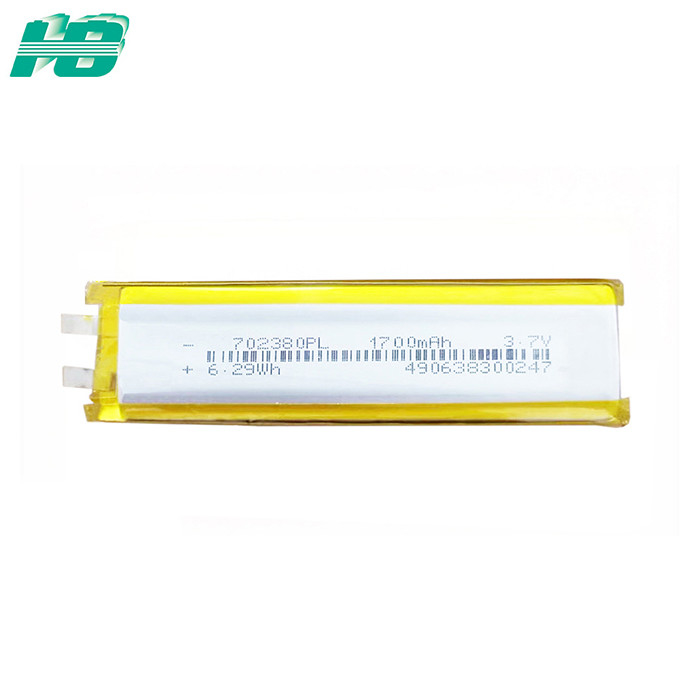

Ternary High Temperature Lithium Ion Battery 702380 Rechargeable 1700mah 3.7v

Basic Information
Place of Origin: CHINA
Brand Name: HB
Certification: ROHS
Model Number: 702380-1700mAh
Minimum Order Quantity: Contact sales to get
Price: Contact sales to get
Packaging Details: Contact sales to get
Delivery Time: Contact sales to get
Payment Terms: T/T
Supply Ability: Contact sales to get
Detail Information
Nominal Voltage: 3.7V Nominal Capacity: 1700mAh
Warranty: 1 Year Cycle Life: 300 Times
Standard Discharge Current: 0.2C Standard Charge Current: 0.2C
High Light:

large capacity lithium ion battery

,

ternary lithium ion battery


Product Description

702380 polymer lithium battery 1700mAh3.7V ternary lithium rechargeable battery

size and capacity can be customized according to your requirements !

Mainly used in GPS,MP4,watches,earphone and other digital production, etc.

1.Technical Parameters



Model 702380-1700mAh
T4.2
7.0mm Max
W
23mm Max
H
80mm Max






Item
Specifications
Test tools
Comments
nitial Capacity
1700mAh
Secondary batteries
test equipment


Nominal voltage

3.7V

Approx. Weight (g)
About 6g
Electronic weighbridge

Max Charge voltage
4.35V
Electronic voltage meter
Exactitude ±0.01V
Fast Charge current
1C mA
Secondary batteries
test equipment

Discharge cut-off voltage
2.75V
Secondary batteries
test equipment

Fast Discharge current
1C mA
Secondary batteries
test equipment

Charge temperature
0℃ ~ + 45℃

Discharge temperature
-20℃ ~ + 60℃

Transportion temperature
-20℃ ~ + 60℃
only for Transportion
Transportion temperature
< 70℃
less than 4 hours, battery should no damage,leakage,swell or explosion. Thickness increases less than 5%.

Recommended Storage temperature
23±3℃

Storage humidity
< 75%RH
Hygrometer
