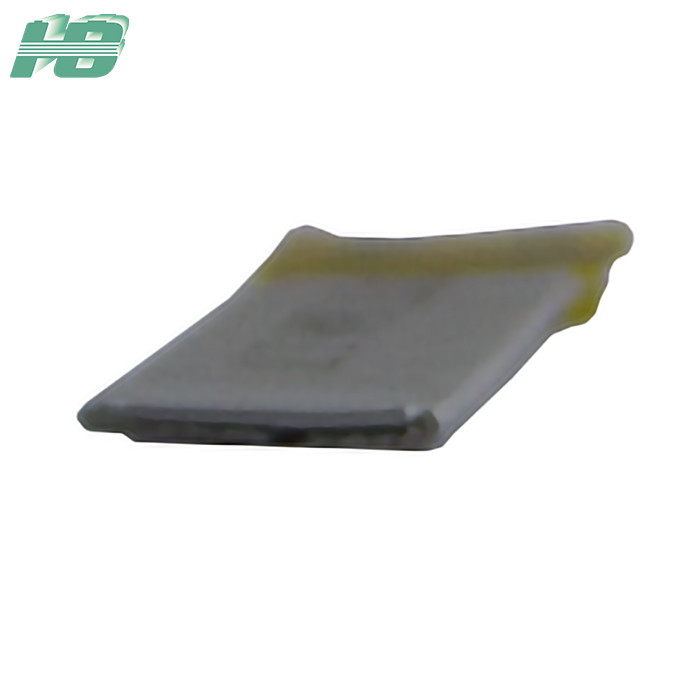

120733 Ultra Thin Lithium Battery 0~+60 Charge Operating Temperature

Basic Information
Place of Origin: CHINA
Brand Name: HB
Certification: ROHS
Model Number: HB120733 18mAh
Minimum Order Quantity: Contact sales to get
Price: Contact sales to get
Packaging Details: Contact sales to get
Delivery Time: Contact sales to get
Payment Terms: T/T
Supply Ability: Contact sales to get
Detail Information
NominalVoltage:3.7VNominalCapacity:18mAh
Warranty:1YearCycleLife:500Times
StandardDischargeCurrent:0.2C11
StandardChargeCurrent:0.2C
HighLight:thinlithiumpolymerbattery,thinlithiumionbattery

Product Description

Ultra-thin lithium battery 120733 polymer lithium battery 18mAh custom 3.7V

1. Technical Parameters


Ite Rating Note

Capacity


Typical 18mAh

Discharge:3.0mA ,

Min 17mAh

Discharge:3.0mA ,

Energy 60mWh

 Nominal Voltage

3.70V

AC Impedance Resistance

≤2000mΩ

Discharge Cut-off Voltage

3.0V

Charge Voltage

4.20V
Max. Charge Voltage 4.25V

Charge Time

Approx 6.5h 0.2C

Standard charge current

3.0mA 0.2C

Max. Charge Current

18mA 1.0C

Max. discharge current

≤45℃ 1.0C

Shipments voltage

≥4.05V

Weight

Approx 4.5g

Operating
Temperature

Charge 0~+60℃
Discharge -10~+60℃

 Storage
Temperature

less than 1 month -10~+60℃

Recommended storage
temperature: 20℃,at the
transportation


less than 6 months -10~+45℃



2. Outline Dimensions and Appearance


This thickness will be swelling when high temperature storage or operation in high temperature.

  • Appearance

There shall be no such defect as scratch, flaw, crack, rust, leakage, which may adversely affect Commercial value of battery.
