| Place of Origin: | CHINA |
|---|---|
| Brand Name: | HB |
| Certification: | ROHS |
| Model Number: | HB102323 28mAh |
| Minimum Order Quantity: | Contact sales to get |
| Price: | Contact sales to get |
| Packaging Details: | Contact sales to get |
| Delivery Time: | Contact sales to get |
| Payment Terms: | T/T |
| Supply Ability: | Contact sales to get |
| Nominal Voltage: | 3.7V | Nominal Capacity: | 28mAh |
|---|---|---|---|
| Warranty: | 1 Year | Cycle Life: | 500 Times |
| Standard Discharge Current: | 0.2C | Standard Charge Current: | 0.2C |
| High Light: | thin lithium polymer battery,solid state lithium battery |
||

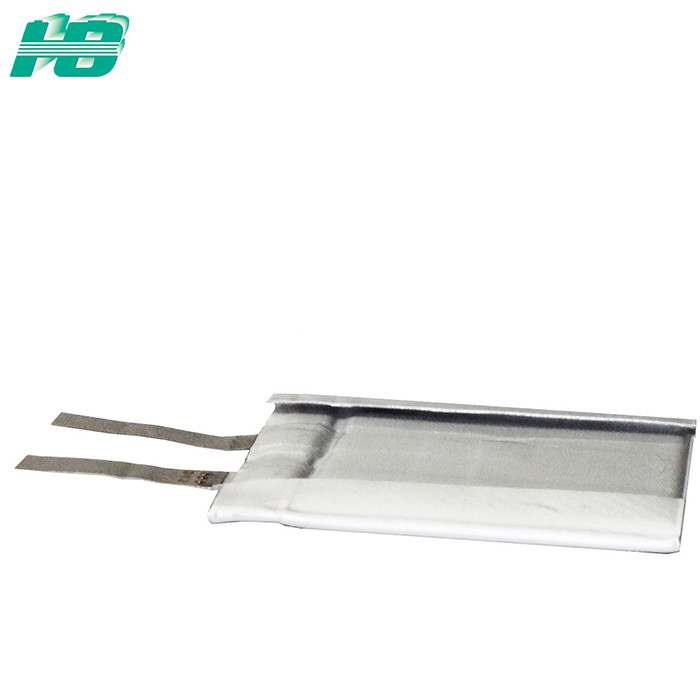

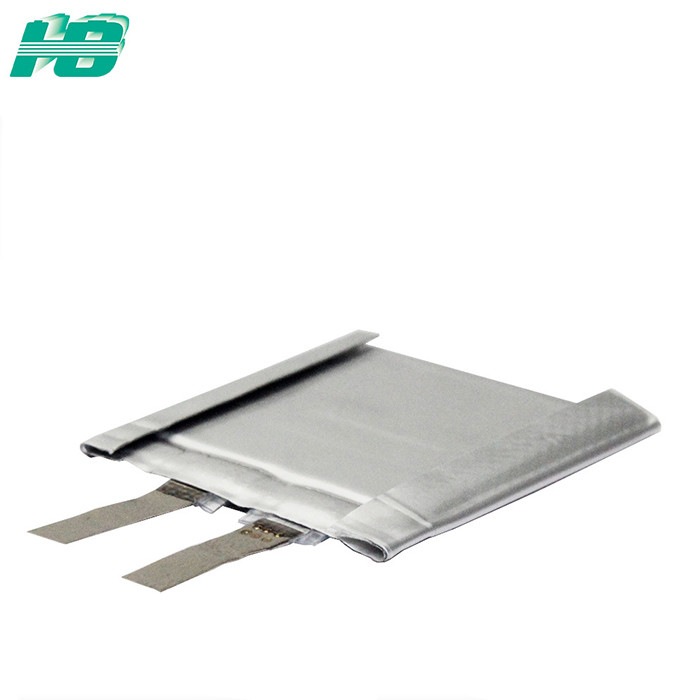

Ultra-thin lithium battery 102323 polymer lithium battery 28mAh custom 3.7V
1. Technical Parameters
| Part No | HB102323 |
| Voltage Range | 3.0 to 4.2V |
| Nominal Voltage | 3.7 V |
| Nominal Capacity | 28mAh @20mA to 3.0 V @ 23° C |
| Max. Discharge | 7mA continuous |
| Pulse Capability |
Up to10mA Varies according to pulse characteristics, temperature, cell history and the application. Consult ABLE. |
| Typical Weight | 1 grams |
| Operating Temp | -30° C to 75° C |
| Storage Temp | -40° C to 75° C |
| Exterior/Housing | Laminated Aluminum Foil |
| Terminals/Connec tor | Nickel-Aluminum Tabs (Ni-Ni optional) |
| Safety | AL-MSDS/RD-004 |
| Transportation | Excepted from Regulations – see note 1 |
2. Outline Dimensions and Appearance
This thickness will be swelling when high temperature storage or operation in high temperature.
There shall be no such defect as scratch, flaw, crack, rust, leakage, which may adversely affect Commercial value of battery.
