2000mAh Military Lithium Battery 654064 Low Temperature Type 500 Times Cycle Life

small.img.alt
small.img.alt small.img.alt small.img.alt small.img.alt
Basic Information
Place of Origin: CHINA
Brand Name: HB
Certification: ROHS
Model Number: HB654064CL-2000mAh
Minimum Order Quantity: Contact sales to get
Price: Contact sales to get
Packaging Details: Contact sales to get
Delivery Time: Contact sales to get
Payment Terms: T/T
Supply Ability: Contact sales to get
Get Best Price Contact Now Chat Now
Detail Information
NominalVoltage:3.85VNominalCapacity:2000mAh
Warranty:1YearCycleLife:500Times
StandardDischargeCurrent:0.2C11
StandardChargeCurrent:0.2C
HighLight:militaryvehiclebattery,militarybatterypack

Product Description

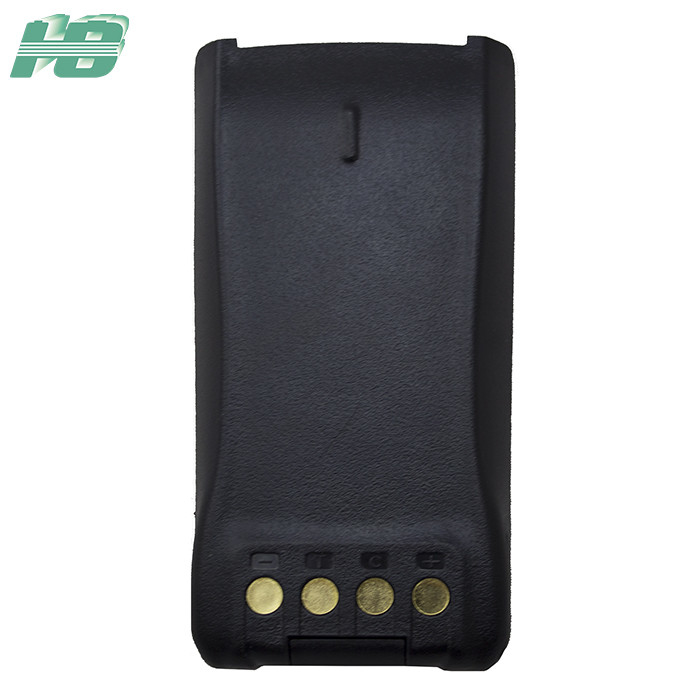

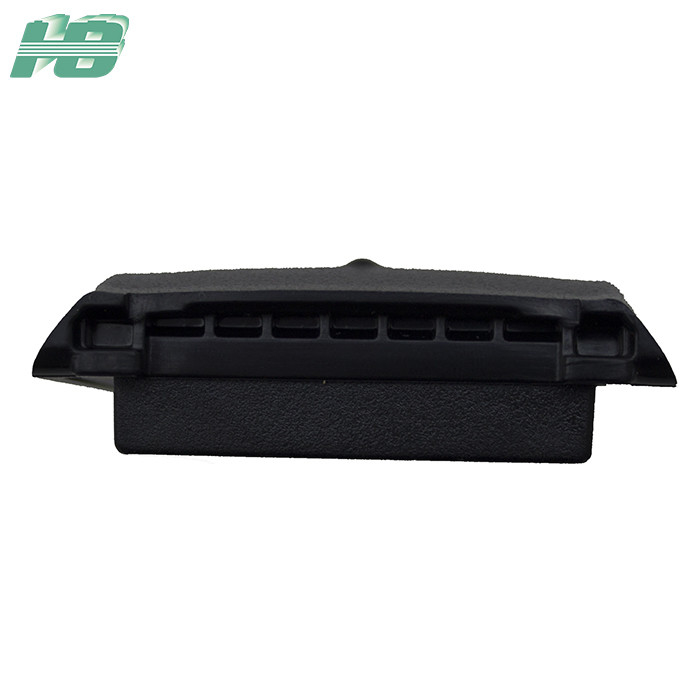

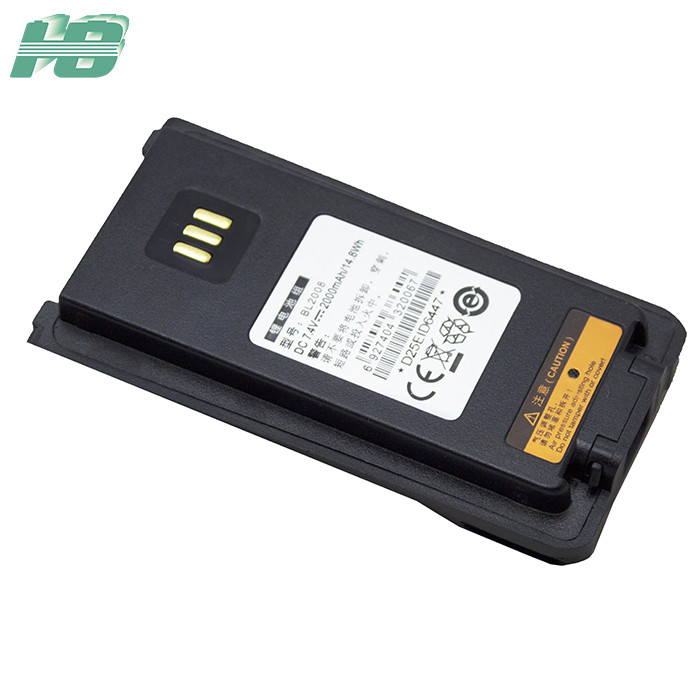

654064 polymer battery 2000mAh military intercom low temperature lithium battery



1.Technical Parameters



Nominal Capacity 2000mAh

Discharge at 0.2C after standard charge fully.
Nominal Voltage 3.85V

End-of-Voltage at end of Discharge

 2.5V

End-of-Charging Voltage

 4.40V
AC Impedance  ≤100 mΩ AC 1KHz
Standard Charge 0.5C CC/CV→4.4V 0.05Ccutoff Charge time: Approx 2.5h.
Standard Discharge 0.2C CC→2.50V cutoff
Fast Charge 1.05A →0.05C cutoff Charge time: Approx 1h.
Fast Discharge 2.2A→7.5V cutoff
Maximum Continuous Charge Current 0.5A
Maximum Continuous Discharge Current 2.2A

Operation Temperature Range

 Charge: 0~45℃ Humidity 60±25%
Discharge: -40~70℃

Storage T/H Range

 -10~35℃/60±25%

Discharge at Low Temperature

1) Standard Charge

2) Put the cell into -40±2℃ low temp oven for 4 hours and discharge at 0.2C CC to 2.5V at the low temperature.

0.2C Discharge

capacity 70%
