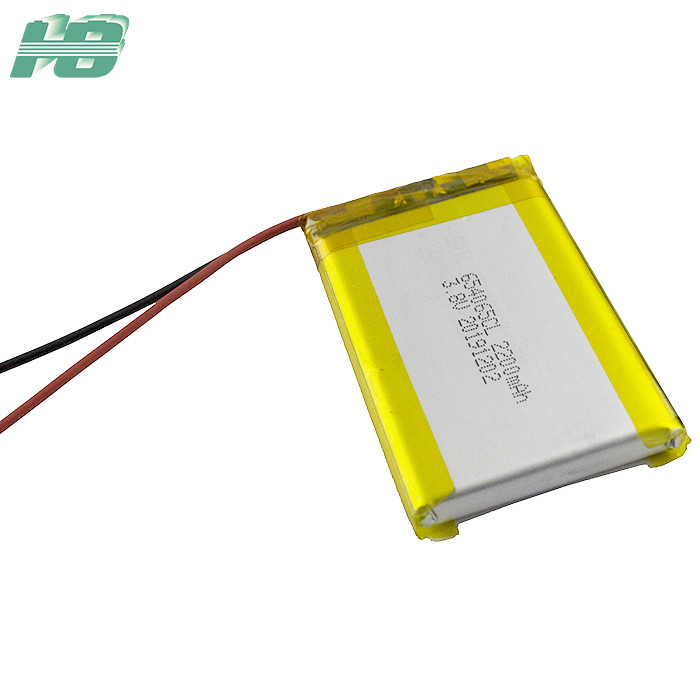

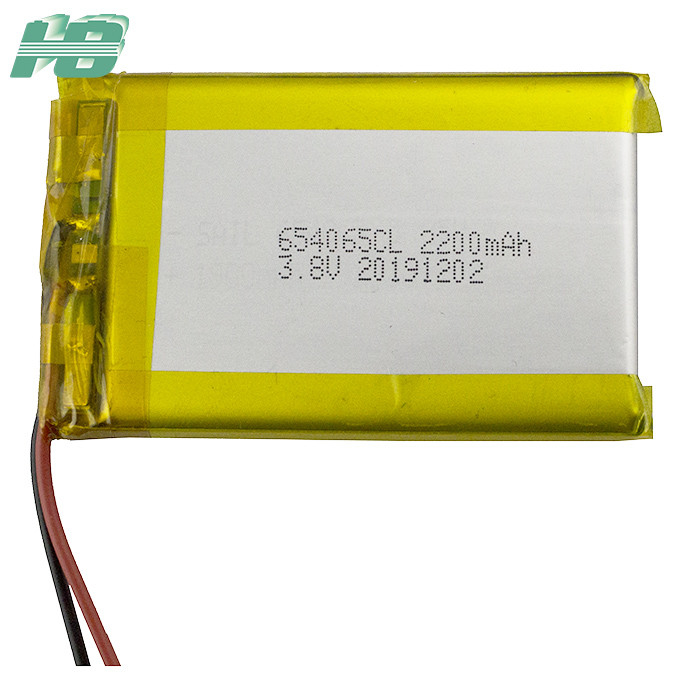

654065 Military Lithium Battery 2200mAh 3.8v Environment Friendly No Pollution

Basic Information
Place of Origin: CHINA
Brand Name: HB
Certification: ROHS
Model Number: HB654065CL-2200mAh
Minimum Order Quantity: Contact sales to get
Price: Contact sales to get
Packaging Details: Contact sales to get
Delivery Time: Contact sales to get
Payment Terms: T/T
Supply Ability: Contact sales to get
Detail Information
Nominal Voltage: 3.85V Nominal Capacity: 2200mAh
Warranty: 1 Year Cycle Life: 500 Times
Standard Discharge Current: 0.2C Standard Charge Current: 0.2C
High Light:

uav battery packs

,

military battery pack


Product Description

654065 military battery -40 ℃ lithium polymer battery 2200mAh3.8V particular battery



1. Technical Parameters



Nominal Capacity 2200mAh

Discharge at 0.2C after standard charge fully..

Nominal Voltage 3.85V

End-of-Voltage at end of Discharge

2.5V

End-of-Charging Voltage

4.40V
AC Impedance ≤100 mΩ AC 1KHz
Standard Charge 0.5C CC/CV→4.4V 0.05Ccutoff Charge time: Approx 2.5h.
Standard Discharge 0.2C CC→2.50V cutoff
Fast Charge 1.05A →0.05C cutoff Charge time: Approx 1h.
Fast Discharge 2.2A→7.5V cutoff
Maximum Continuous Charge Current 0.5A
Maximum Continuous Discharge Current 2.2A

Operation Temperature Range

Charge: 0~45℃ Humidity 60±25%
Discharge: -40~70℃

Storage T/H Range

-10~35℃/60±25%



Discharge at Low Temperature

1) Standard Charge

2) Put the cell into -40±2℃ low temp oven for 4 hours and discharge at 0.2C CC to 2.5V at the low temperature.

0.2C Discharge

capacity 70%
