1.8mm Ultra Thin Lithium Battery 200mah 3.7 Volt 183248 500 Times Cycle Life

Basic Information
Place of Origin: CHINA
Brand Name: HB
Certification: ROHS
Minimum Order Quantity: Contact sales to get
Price: Contact sales to get
Packaging Details: Contact sales to get
Delivery Time: Contact sales to get
Payment Terms: T/T
Supply Ability: Contact sales to get
Detail Information
Nominal Voltage: 3.7V Nominal Capacity: 200mAh
Warranty: 1 Year Cycle Life: 500 Times
Standard Discharge Current: 0.2C Standard Charge Current: 0.2C
High Light:

thin lithium ion battery

,

solid state lithium battery


Product Description

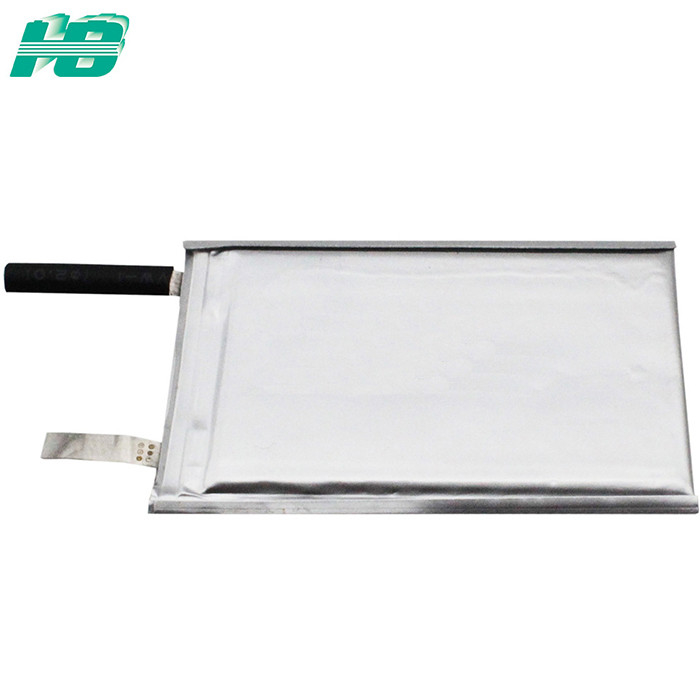

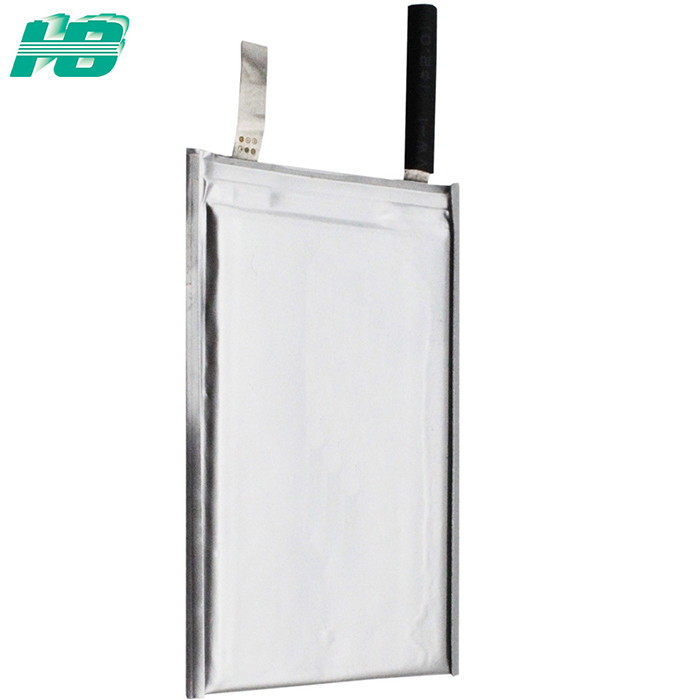

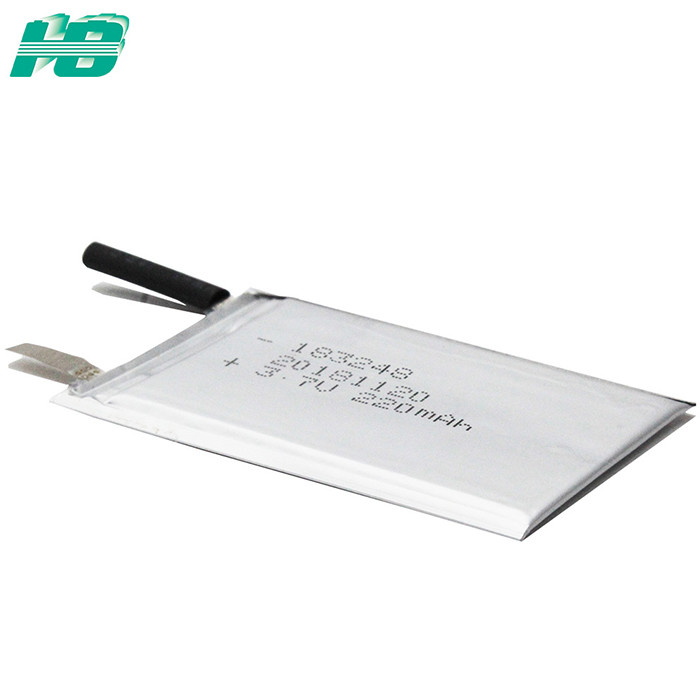

1.8mm ultra-thin lithium battery 200mAh 3.7V 183248 gel solid state battery



The main application fields are smart cards, bank cards, smart door cards, electronic tags, smart bracelet watches, smart glasses, active RFID cards, etc.



Technical Parameters

Item Rating Note

Capacity

Typical 200mAh

Discharge:44mA ,

Min 200mAh

Discharge:44mA ,

Energy 0.81Wh

Nominal Voltage

3.70V

AC Impedance Resistance

≤800mΩ

Discharge Cut-off Voltage

3.0V

Charge Voltage

4.20V

Max. Charge Voltage

4.25V

Charge Time

Approx 6.5h 0.2C

Standard charge current

44mA 0.2C

Max. Charge Current

220mA 1.0C

Max. discharge current

≤45℃ 1.0C

Shipments voltage

≥4.05V

Weight

Approx 5.0g

Operating

Temperature

Charge 0~+60℃
Discharge -10~+60℃

Storage

Temperature

less than 1 month -10~+60℃

Recommended storage

temperature: 20℃,at the

transportation

less than 6 months -10~+45℃
