043030 Ultra Thin Lithium Battery 18mah 0.4mm Customized Size And Capacity

Basic Information
Place of Origin: CHINA
Brand Name: HB
Certification: ROHS
Minimum Order Quantity: Contact sales to get
Price: Contact sales to get
Packaging Details: Contact sales to get
Delivery Time: Contact sales to get
Payment Terms: T/T
Supply Ability: Contact sales to get
Detail Information
Nominal Voltage: 3.7V Nominal Capacity: 18mAh
Warranty: 1 Year Cycle Life: 500 Times
Standard Discharge Current: 0.2C Standard Charge Current: 0.2C
High Light:

thin lithium polymer battery

,

thin lithium ion battery


Product Description

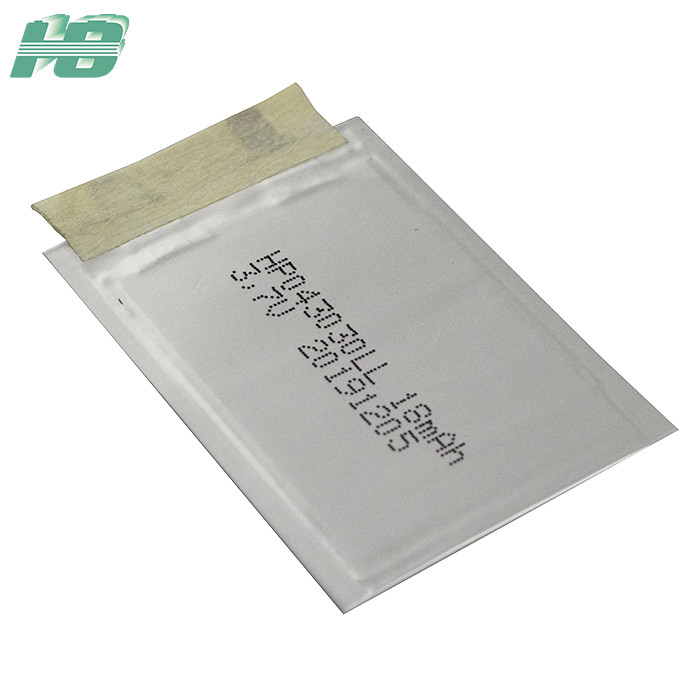

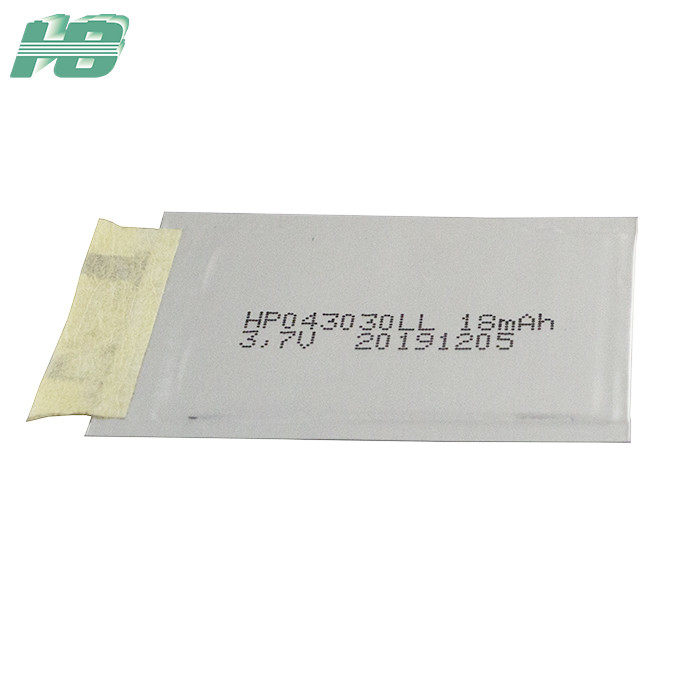

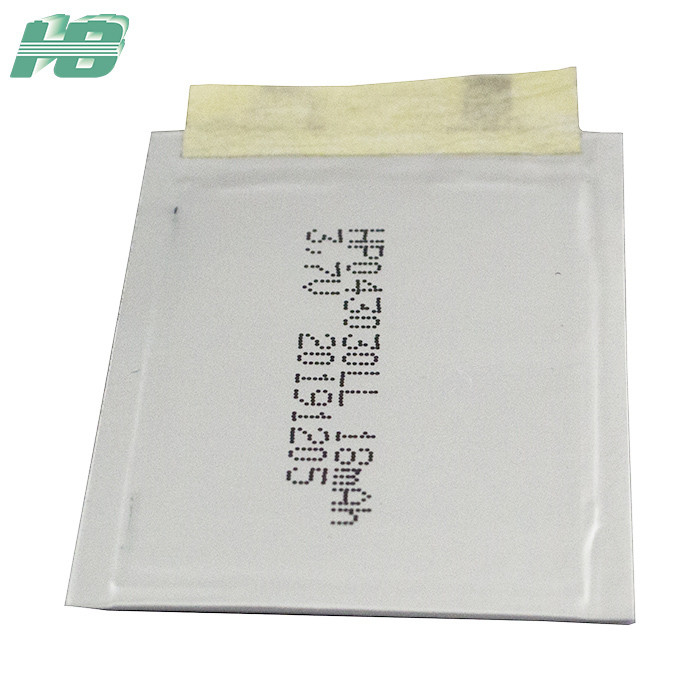

043030 ultra-thin Lithium battery 18mAh thick 0.4mm solid state battery 3.7V



1.Technical Parameters



Item Rating Note

Capacity

Typical 18mAh

Discharge:3.6mA ,

Min 16mAh

Discharge:3.6mA ,

Energy 66.6mWh

Nominal Voltage

3.70V

AC Impedance Resistance

≤2000mΩ

Discharge Cut-off Voltage

3.0V

Charge Voltage

4.20V
Max. Charge Voltage 4.25V

Charge Time

Approx 6.5h 0.2C

Standard charge current

3.0mA 0.2C

Max. Charge Current

15mA 1.0C

Max. discharge current



≤45℃ 1.0C

Shipments voltage

≥4.05V

Weight

Approx 4.5g

Operating

Temperature

Charge 0~+60℃
Discharge -10~+60℃

Storage

Temperature

less than 1 month -10~+60℃

Recommended storage

temperature: 20℃,at the

transportation

less than 6 months -10~+45℃





2.Performance



2.1 Standard Test Conditions

Test should be conducted with new batteries within one month after shipment from our factory and the cells shall not be cycled more than five times before the test. Unless otherwise defined, test and measurement shall be done under temperature of 25±2℃ and relative humidity of 45~85%. The test results are not affected evidently by such conditions of temperature 15~30℃ or humidity 25~85%RH.



2.2 Measuring Instrument or Apparatus

2.2.1 Dimension Measuring Instrument

The dimension measurement shall be implemented by instruments with equal or more

Precision scale of 0.01mm.

2.2.2 Voltmeter

Standard class specified in the national standard or more sensitive class having inner impedance more than 10 MΩ

2.2.3 Impedance Meter

Impedance shall be measured by a sinusoidal alternating current method (1kHz LCR meter).

2.3 .1Standard charge current

0.2C=3.6mA

2.3.2 Max. Charge Current

1.0C=18mA

Full charge condition: Constant current 0.2CmA to 4.2V, Constant voltage 4.2V to 0.05C in all at 25±2℃.



2.4 Rest Period

Unless otherwise defined, 5min, rest period after charge, 5min, rest period after discharge.
