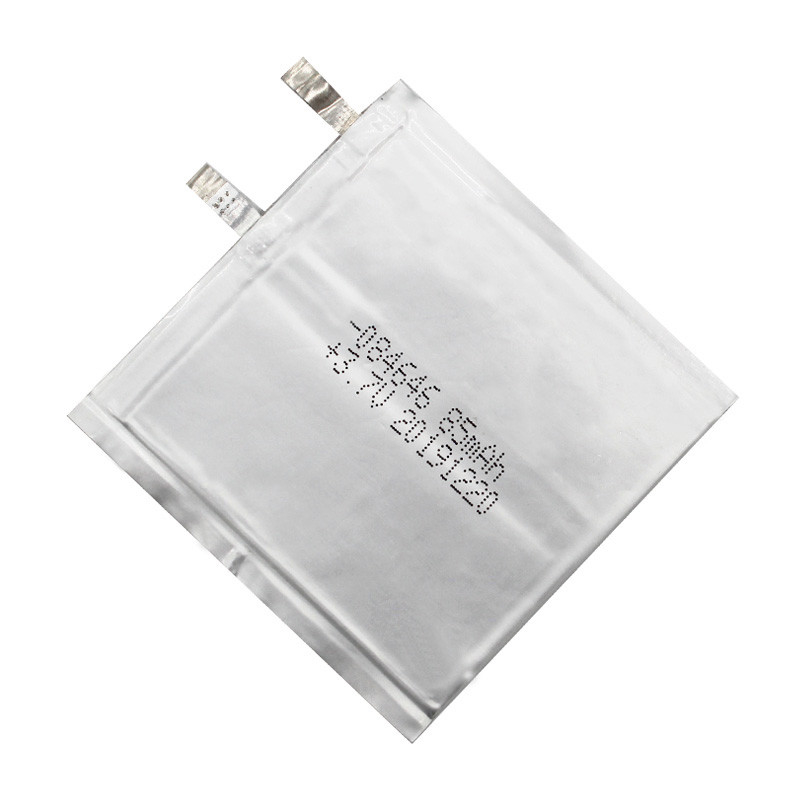

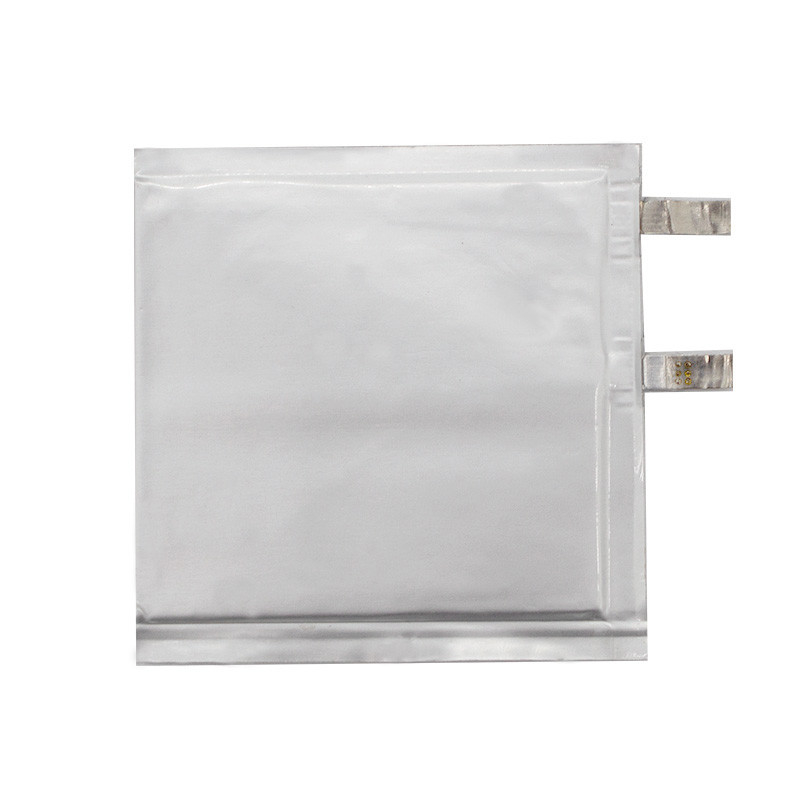

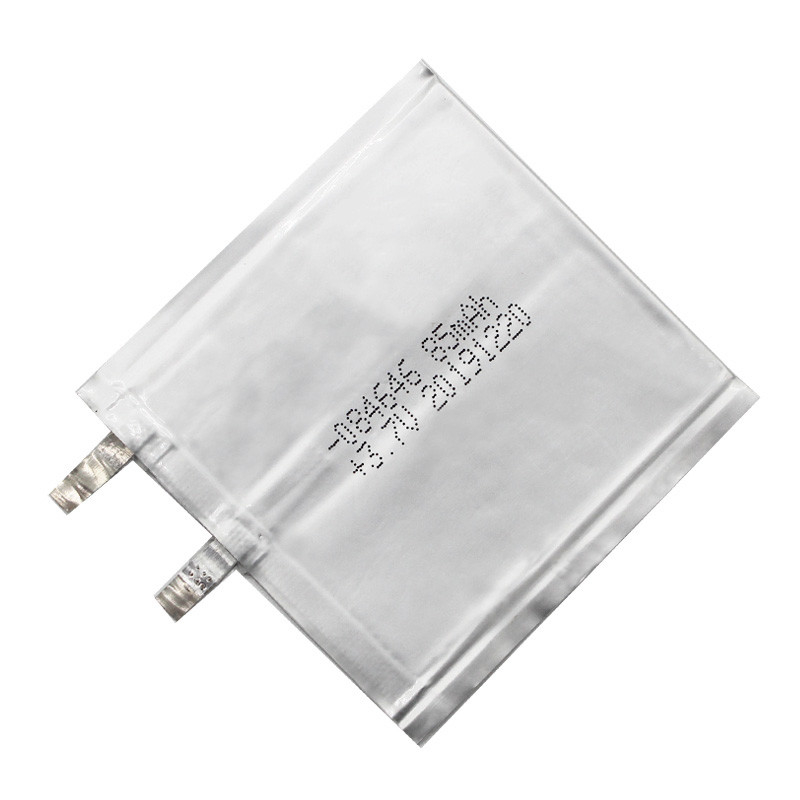

0.8mm Thin Lithium Polymer Battery , 084646 Solid State Lithium Gel Battery

Basic Information
Place of Origin: CHINA
Brand Name: HB
Certification: ROHS
Minimum Order Quantity: Contact sales to get
Price: Contact sales to get
Packaging Details: Contact sales to get
Delivery Time: Contact sales to get
Payment Terms: T/T
Supply Ability: Contact sales to get
Detail Information
Nominal Voltage: 3.7V Nominal Capacity: 85mAh
Warranty: 1 Year Cycle Life: 500 Times
Standard Discharge Current: 0.2C Standard Charge Current: 0.2C
High Light:

thin lithium polymer battery

,

solid state lithium battery


Product Description

0.8mm ultra-thin battery 100 ℃ polymer battery 084646 gel solid state battery



1. Technical Parameters



Item Rating Note

 Capacity

Typical



85mAh

Discharge:17mA ,



Min



75mAh

Discharge: 17mA ,

Energy 0.315Wh
Nominal Voltage 3.70V
AC Impedance Resistance ≤400mΩ

Discharge Cut-off Voltage

3.0V
Charge Voltage  4.20V

Max. Charge Voltage

4.25V
Charge Time Approx 6.5h 0.2CmA

Standard charge current

17mA 0.2CmA

Max. Charge Current

85mA 1.0CmA

Max. discharge current

85mA 1.0CmA
Weight Approx 2.6g

Operating

Temperature

Charge 0~+45℃
Discharge -10~+60℃

Storage

Temperature

less than 1 month



-10~+45℃

Recommended storage temperature: 20℃,at the transportation

less than 6 months

-10~+35℃



2. Outline Dimensions and Appearance



1.1 Outline Dimensions

See attached drawing for

This thickness will be swelling when high temperature storage or operation in high temperature.





  • Appearance

There shall be no such defect as scratch, flaw, crack, rust, leakage, which may adversely affect Commercial value of battery.



2 Performance



2.1Standard Test Conditions



Test should be conducted with new batteries within one month after shipment from our factory and the cells shall not be cycled more than five times before the test. Unless otherwise defined, test and measurement shall be done under temperature of 25±2 ℃ and relative humidity of 45~85%. The test results are not affected evidently by such conditions of temperature 15~30℃ or humidity 25~85%RH.



2.2 Measuring Instrument or Apparatus

2.2.1 Dimension Measuring Instrument



The dimension measurement shall be implemented by instruments with equal or more Precision scale of 0.01mm.



2.2.2 Voltmeter



Standard class specified in the national standard or more sensitive class having inner impedance more than 10 MΩ



2.2.3 Impedance Meter



Impedance shall be measured by a sinusoidal alternating current method (1kHz LCR meter).



2.3 .1Standard charge current



0.2CmA=17mA



2.3.2 Max. Charge Current



1.0CmA=85mA



Full charge condition: Constant current 0.2CmA to 4.2V, Constant voltage 4.2V to 0.05C in all at 25±2 ℃.



2.4Rest Period



Unless otherwise defined, 5min, rest period after charge, 30min, rest period after discharge.
