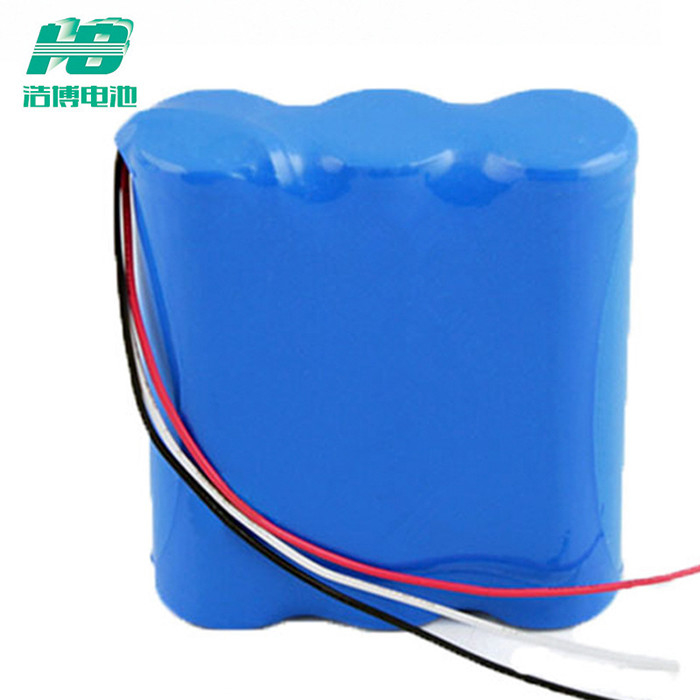

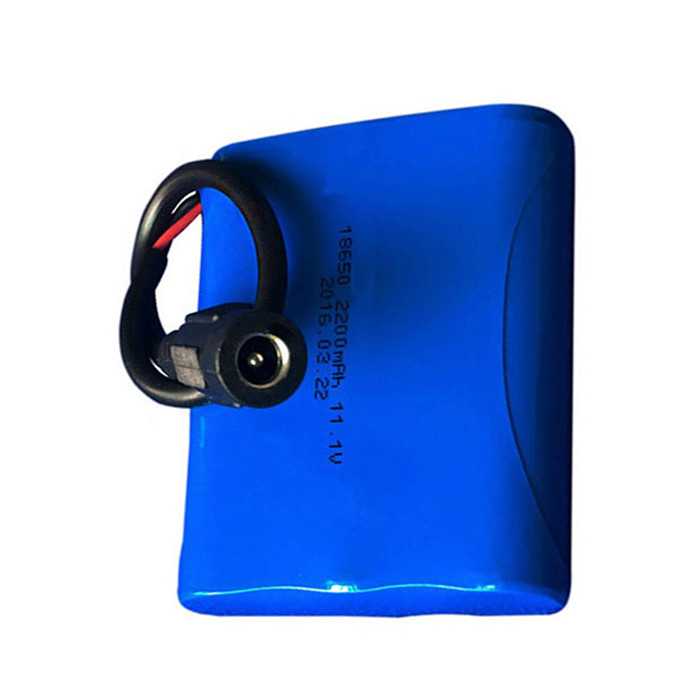

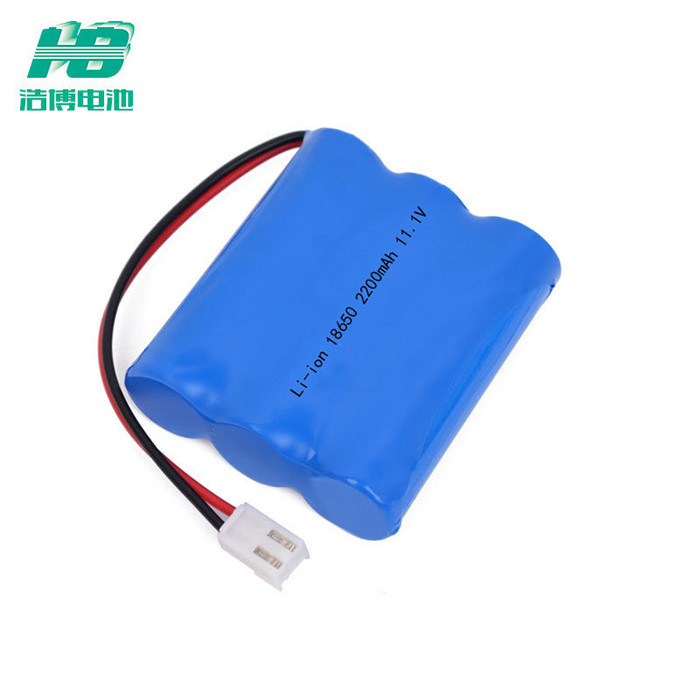

12v 2200mah 18650 Rechargeable Lithium Battery , 11.1 Volt Lithium Ion Battery Packs

Basic Information
Place of Origin: CHINA
Brand Name: HB
Certification: ROHS
Model Number: 12V
Minimum Order Quantity: Contact sales to get
Price: Contact sales to get
Packaging Details: Contact sales to get
Delivery Time: Contact sales to get
Payment Terms: T/T
Supply Ability: Contact sales to get
Detail Information
Nominal Voltage: 12V 2200mAh Nominal Capacity: 2200mAh
Warranty: 1 Year Cycle Life: 500 Times
Standard Discharge Current: 0.2C Standard Charge Current: 0.2C
High Light:

lithium polymer battery pack

,

large capacity battery pack


Product Description

18650 lithium battery 12V 2200mAh lithium battery 11.1V rechargeable battery



1.Technical Parameters



Item Rating Note
Capacity Typical 2200mAh

Discharge:440mA ,

440mA

Min 2200mAh
Energy 24.42Wh

Nominal Voltage



11.1V
AC Impedance Resistance ≤200mΩ
Discharge Cut-off Voltage 7.5V
Charge Voltage 12.85V
Max. Charge Voltage 12.80V
Charge Time Approx 6.5h 0.2C
Standard charge current 440mA 0.2C
Max. Charge Current 2200mA 1.0C
Max. discharge current ≤45℃ 1.0C
Shipments voltage ≥12.6V
Weight Approx 150.0g
Operating Temperature Charge 0~+60℃
Discharge -10~+60℃

Storage Temperature



less than 1

month

-10~+60℃ Recommended storage temperature: 20℃,at the transportation

less than 6

months

-10~+45℃





2.Application Area



Mainly used in solar backpack, solar hood, solar flashlight, solar car, solar sailing boat, solar airplane, BIPV, etc.





3.Safety instructions



HB lithium battery uses non-polluting materials and is produced with unique technology; it has fully passed UL safety certification, but as a lithium battery, like other types of cells, it has certain dangers when it is mechanically damaged. Therefore, the following precautions must be taken into consideration when handling and using HB lithium batteries:




3. Warning and Cautions

Danger warning(it should be described in manual or instruction for users, indicated especially) to prevent the
possibility of the battery from leaking, heating, explosion. Please observe the following precautions:

◆ Don't immerse the battery in water and seawater. Please put it in cool and dry environment if no using

◆ Do not discard or leave the battery near a heat source as fire or heater

◆ Being charged, using the battery charger specifically for that purpose

◆ Don't reverse the positive and negative terminals

◆ Don't connect the battery to an electrical outlet directly

◆ Don't connect the positive and negative terminal directly with metal objects such as a wire. Short
terminals of the battery are strictly prohibited, it may damage the battery

◆ Do not transport and store the battery together with metal objects such as necklaces, hairpins

◆ Do not strike, throw or trample the battery

◆ Do not directly solder the battery and pierce the battery with a nail or other sharp object

◆ Do not use it with other different battery, or other different lithium polymer battery model in mxture

◆ Prohibition of use of damaged cells

◆ Don't bend or fold sealing edge. Don't open or deform folding edge. Don't fillet the end of the
folding edge

◆ Don't fall, hit, bend battery body

◆ Battery pack designing and packing Prohibition injury batteries

◆ Never disassemble the cells

◆ The battery replacement shall be done only by either cells supplier or device supplier and never be
done by the user

◆ Keep the battery away from babies

◆ Any components contacting these two edges, they must be insulated
