422123 High Voltage Rechargeable Battery 215mAh 3.8v For Digital Products
Basic Information
| Place of Origin: | CHINA |
|---|---|
| Brand Name: | HB |
| Certification: | ROHS |
| Model Number: | 422123-215mAh |
| Minimum Order Quantity: | Contact sales to get |
| Price: | Contact sales to get |
| Packaging Details: | Contact sales to get |
| Delivery Time: | Contact sales to get |
| Payment Terms: | T/T |
| Supply Ability: | Contact sales to get |
Detail Information
| NominalVoltage: | 3.8V | NominalCapacity: | 215mAh |
|---|---|---|---|
| Warranty: | 1Year | CycleLife: | 300Times |
| StandardDischargeCurrent: | 0.2C | 1 | 1 | StandardChargeCurrent: | 0.2C |
| HighLight: | rechargeablelithiumbatteries,lithiumpolymerbattery |
Product Description

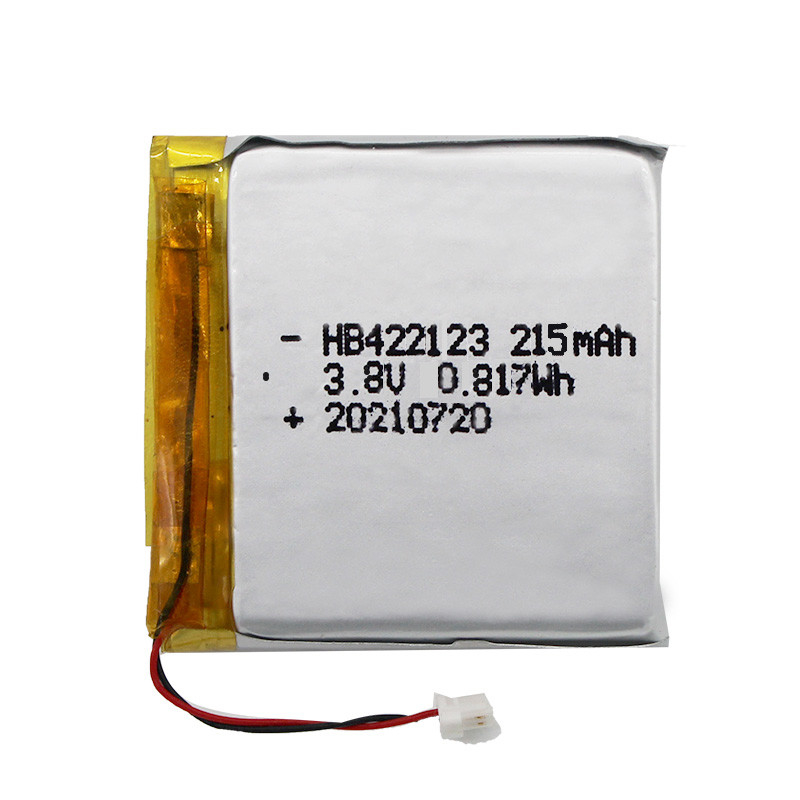

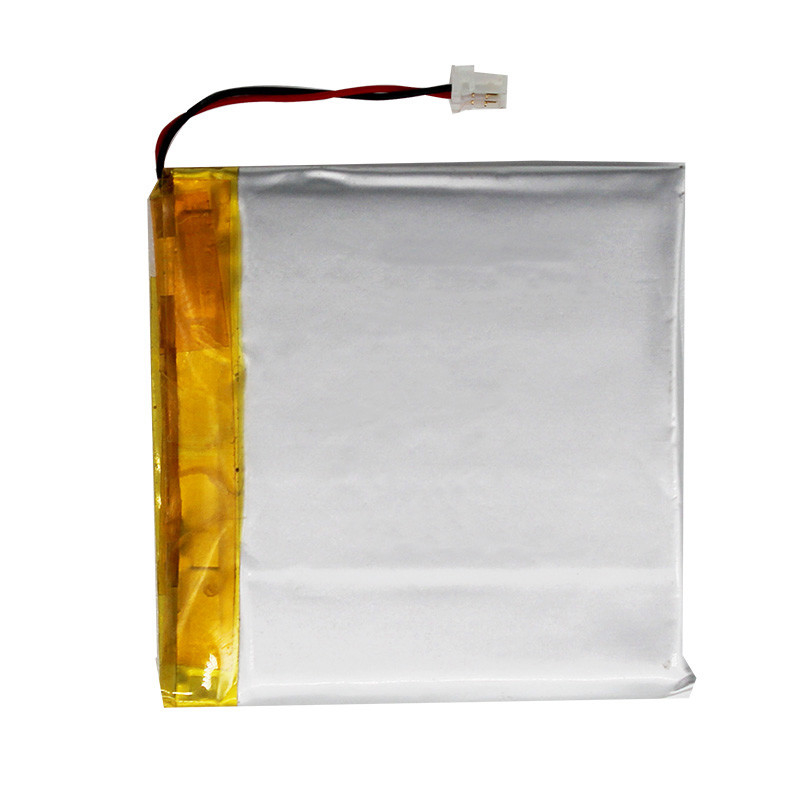

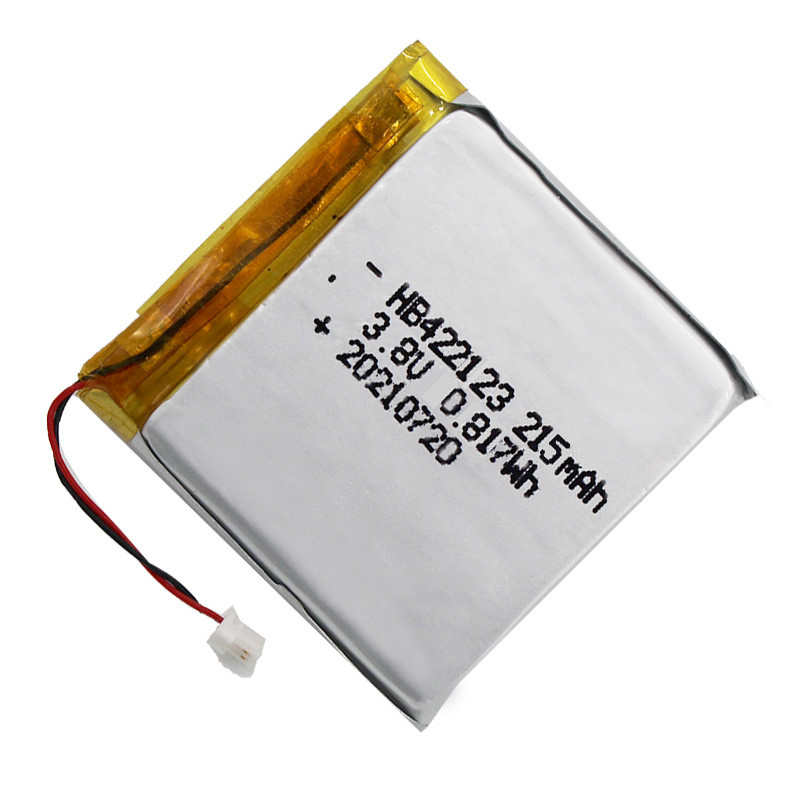

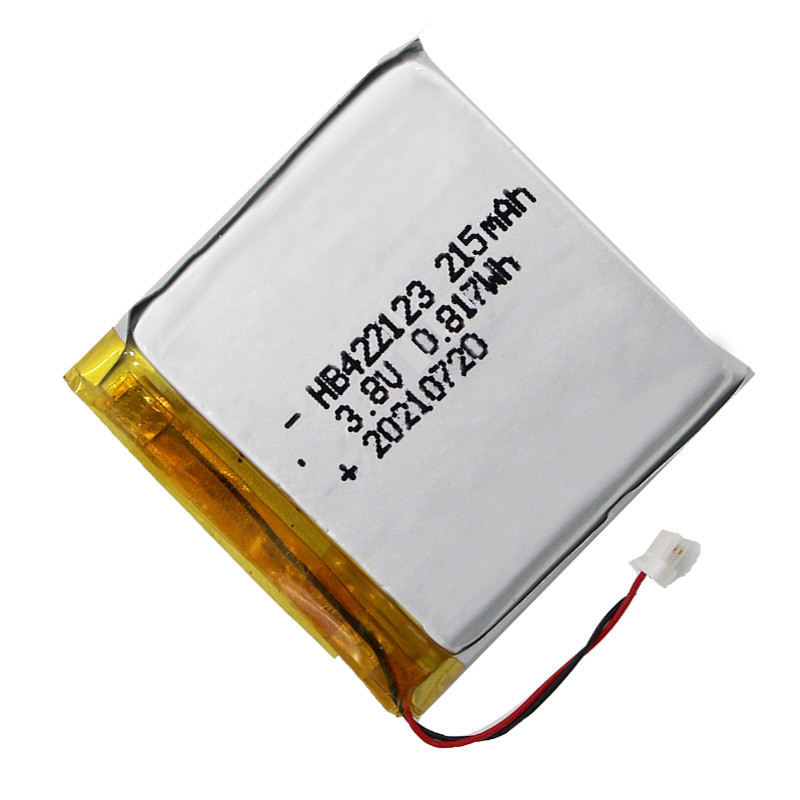

422123 215mAh 3.8v high voltage lithium polymer rechargeable battery
size and capacity can be customized according to your requirements !
Mainly used in GPS,MP4,watches,earphone and other digital production, etc.
1. Technical Parameters
| Model | 422123-215mAh |
|
T4.2
|
4.2mm Max |
|
W
|
22 mm Max |
|
H
|
24.0mm Max |
|
wire:
|
10064 32# |
|
L
|
20 ±3mm |
|
connector
|
JST-SUR-2P
|
|
Item
|
Specifications
|
Test tools
|
Comments
|
|
nitial Capacity
|
215mAh
|
Secondary batteries
test equipment
|
|
|
Nominal voltage |
3.8V
|
||
|
Approx. Weight (g)
|
About 6g
|
Electronic weighbridge
|
|
|
Initial AC Impedance
|
300
|
Impedance test
equipment
|
AC 1000HZ impedance
exactitude ±1 mΩ
|
|
Max Charge voltage
|
4.35V
|
Electronic voltage meter
|
Exactitude ±0.01V
|
|
Fast Charge current
|
1C mA
|
Secondary batteries
test equipment
|
|
|
Discharge cut-off voltage
|
2.75V
|
Secondary batteries
test equipment
|
|
|
Fast Discharge current
|
1C mA
|
Secondary batteries
test equipment
|
|
|
Charge temperature
|
0℃ ~ + 45℃
|
||
|
Discharge temperature
|
-20℃ ~ + 60℃
|
||
|
Transportion temperature
|
-20℃ ~ + 60℃
|
only for Transportion | |
|
Transportion temperature
|
< 70℃
|
less than 4 hours, battery should no damage,leakage,swell or explosion. Thickness increases less than 5%.
|
|
|
Recommended Storage temperature
|
23±3℃
|
||
|
Storage humidity
|
< 75%RH
|
Hygrometer
|
