3V 2000mAh Disposable Lithium Batteries Manganese Dioxide Type CR17450

Basic Information
Place of Origin: CHINA
Brand Name: HB
Certification: ROHS
Model Number: CR17450 2000mAh
Minimum Order Quantity: Contact sales to get
Price: Contact sales to get
Packaging Details: Contact sales to get
Delivery Time: Contact sales to get
Payment Terms: T/T
Supply Ability: Contact sales to get
Detail Information
Nominal Capacity: 2Ah Type: CR17450
Size: 17.0*45.5mm Nominal Voltage: 3V
Max.Constant Current: 1500mA Weight: 26g
High Light:

lithium primary battery

,

lithium manganese dioxide battery


Product Description

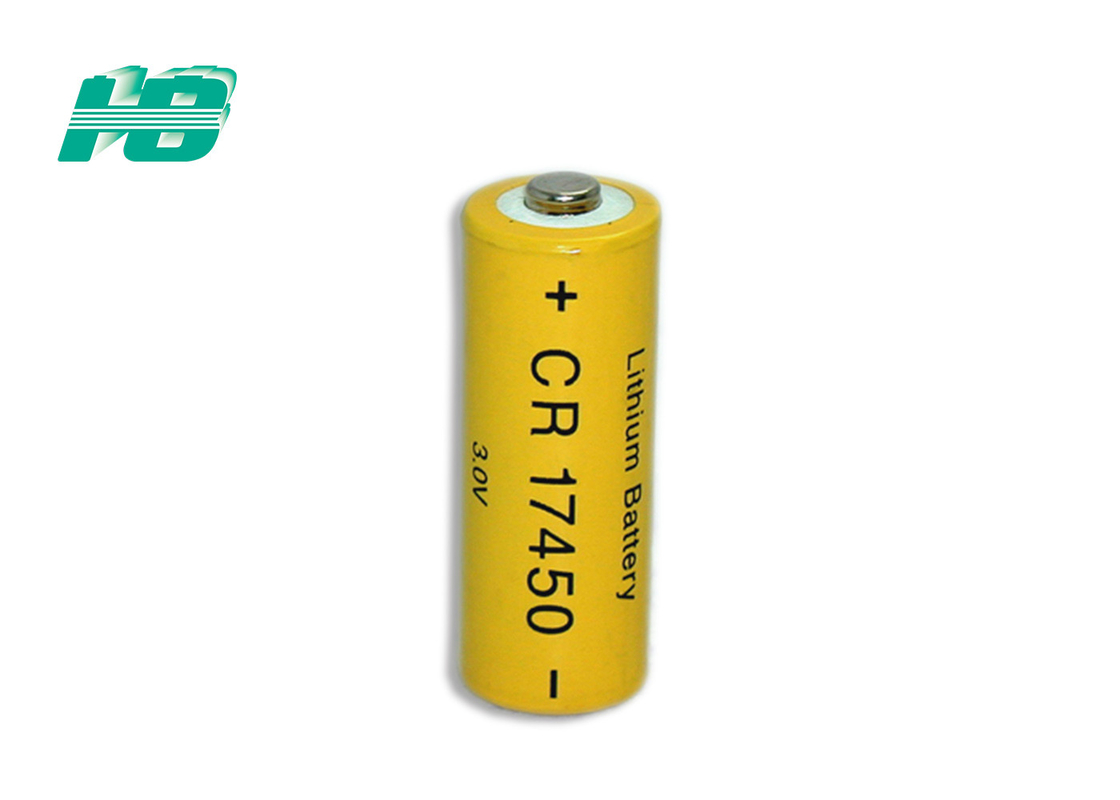

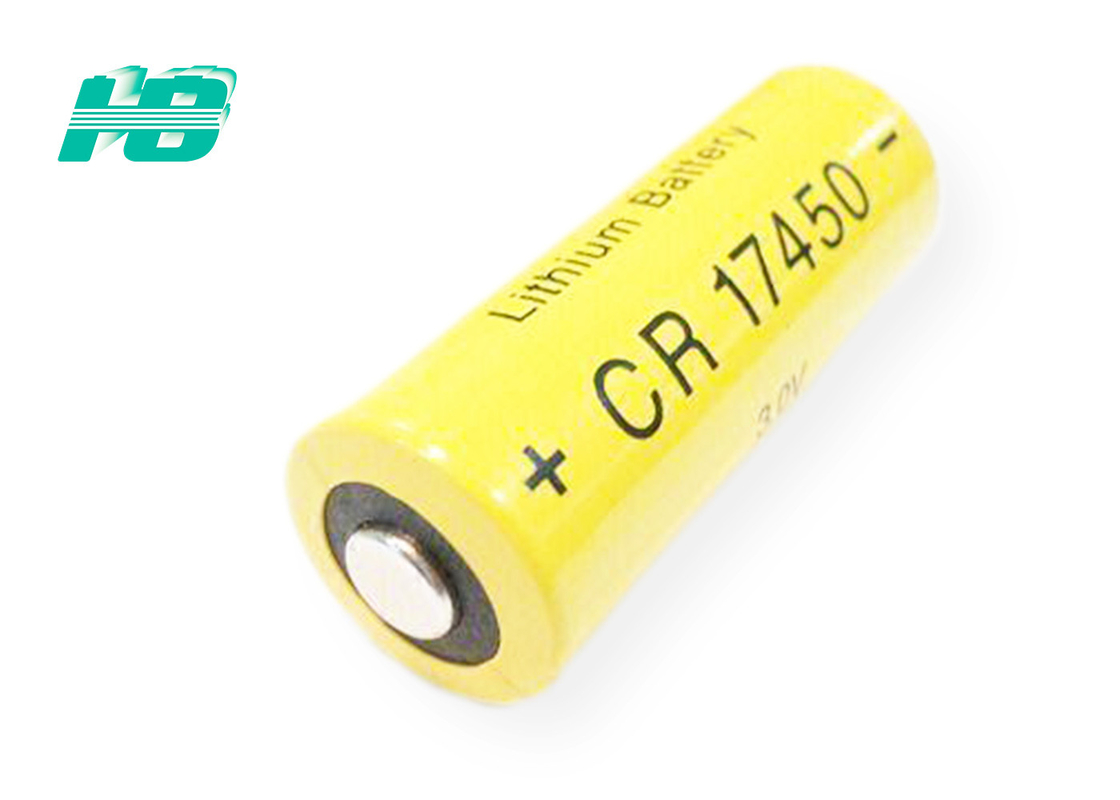

3V 2000mAh Disposable Lithium Batteries Manganese Dioxide Type CR17450

1.Model
CR17450 2000mAh

2.Technical Parameters

Nominal capacity2000mAh
Nominal voltage3.0V
Max.continuous current1500mA
Max.pulse current capability3000mA
WeightApprox.26g
DimensionØ17.0*45.5mm
Operating temperature range-40℃ ~+85℃



3V 2000mAh Disposable Lithium Batteries Manganese Dioxide Type CR17450 0
3V 2000mAh Disposable Lithium Batteries Manganese Dioxide Type CR17450 13V 2000mAh Disposable Lithium Batteries Manganese Dioxide Type CR17450 23V 2000mAh Disposable Lithium Batteries Manganese Dioxide Type CR17450 3

3.Main Characteristics
High and stable operating voltage
Low self-discharge rate(less than 2% after 1 year storage at +25℃ )
Hermetic glass-to-metal sealing
Non-flammable electrolyte Spiral type
UL,CE,SGS recognized
ISO9001 approved

4.Application Area
Portable electronic devices such as PDAs, watches, camcorders, digital cameras, thermometers, calculators, laptop BIOS, communications equipment, remote control door locks.

5.Warning and Attention
HB lithium battery uses non-polluting materials and is produced with unique technology; it has fully passed UL safety certification, but as a lithium battery, like other types of cells, it has certain dangers when it is mechanically damaged. Therefore, the following precautions must be taken into consideration when handling and using HB lithium batteries:
1) It is forbidden to put the battery in water, and should be placed in a cool and dry environment during storage.
2) It is forbidden to use in the hot sunlight of moxibustion, otherwise it may cause battery overheating, fire or function failure.
3) It is prohibited to disassemble, open, chop or puncture the battery pack with metal.
4) It is forbidden to expose the battery or battery pack to heat or flame, to put the battery into the fire and to avoid storing it in direct sunlight.
5) It is forbidden to short-circuit batteries or batteries, and do not place multiple batteries in boxes or drawers at will to avoid shorting each other or by other metal objects.
6) It is prohibited to subject a battery or battery pack to mechanical shock.
7) In the event of leakage, do not contact the leaking liquid directly to the skin or eyes, if contact occurs, apply a large amount of water to flush the contact area.
8) Do not use non-special charging, which should be done in accordance with the manufacturer's instructions.
9) Note the "plus positive ear" and "-negative ear "signs of the battery pack to ensure proper use.
10) Keep the battery pack clean and dry.
If the battery pack becomes extremely dirty, use a clean, dry cloth to wipe it.
12) Do not charge the battery pack for a long time.
13) The best performance and service life of the battery or battery pack can be obtained by charging and discharging at 15°C ~25°C.
14) Keep the original specification of the product for future reference.
15) Dispose of waste batteries or batteries in accordance with national environmental protection laws.

6.Model reference table
                        Li-MnO2 Battery

TypeShapeModel

(Ømmxmm )
Max.Size

(v) Nominal
Voltage

(v) Termination
Voltage

(mAh)
Capacity

(mA)
Max. Constant current

(g)
weight


Li-MnO2







2/3ACR123A17.0X34.5321500150020
ACR1750517.0X50.5322300150030
 CR1745017.0X45.5322000150026
ACR1850518.5X50.5322500200035
CCR2650026.2X50.5325400200062
DCR3461534.0X61.532120002000125
1/2 AACR1425014.5X25.43260050011
2/3AACR1433514.5X33.532800100014
AACR1450514.5X50.5321400150021
 CR-P236X19.5X35641500150042
 CR215.5X27.032850100013
